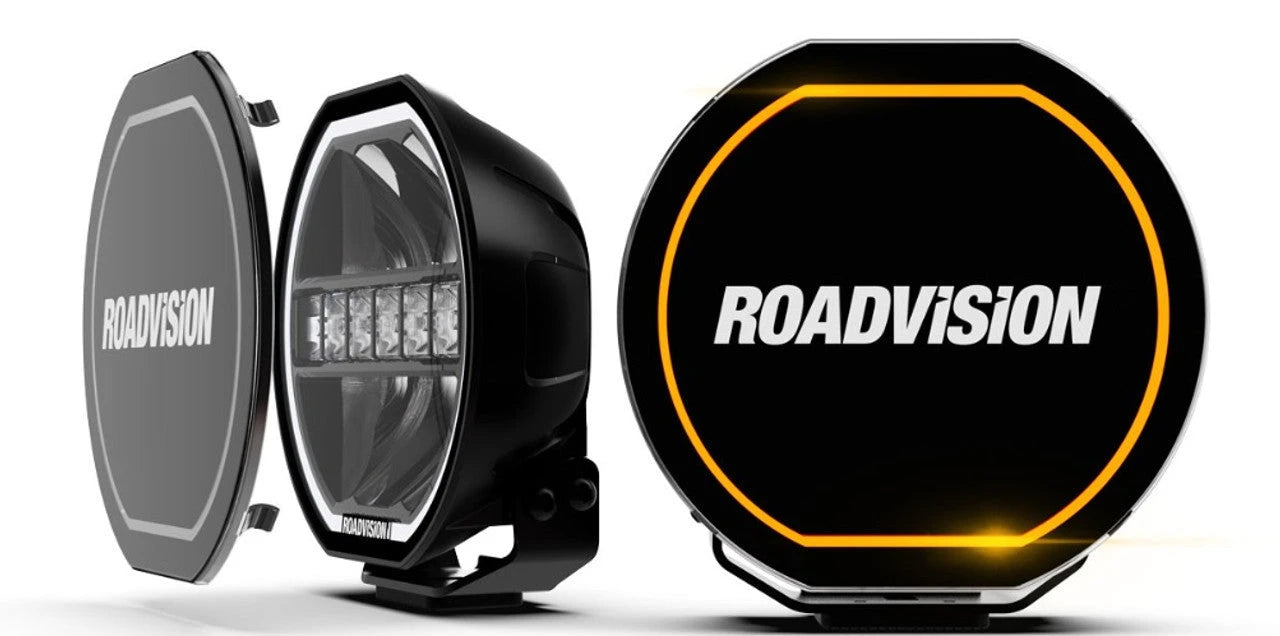

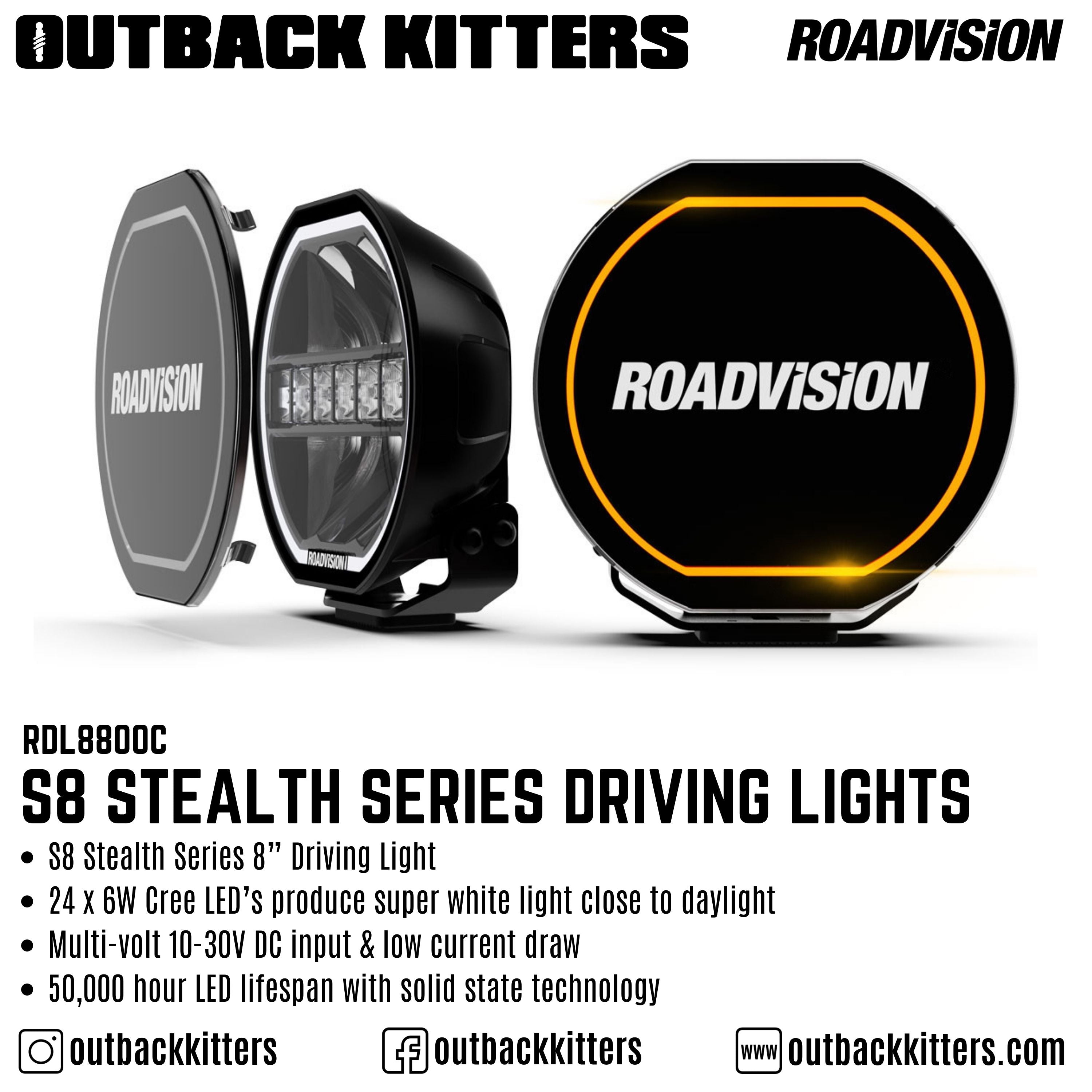

Roadvision S8 Stealth Series Driving Lights

Note: Price is per driving light (single)

Elevate your larger 4WDs and Trucks with Roadvision’s S8 Stealth Series Driving Lights. With contemporary black mounting hardware and innovative dual-colour HALO DRL, these lights feature a stylish bezel-less design. The 24 x 6W Cree LEDs illuminate with an impressive 7937lm per light, projecting a remarkable 768 metres (1086 metres per pair) beam penetration at 1 lux, thanks to Roadvision’s Thermal Management Technology. Built to withstand harsh conditions, the S8 series boasts a robust yet lightweight aluminium housing and a durable polycarbonate lens. Redefine your driving experience with the S8 series’ tough aesthetic and unparalleled lighting prowess. Meanwhile, our 8” light with a low-profile bracket optimises your bull bar space. Embrace the benefits of 9” light output while enjoying a sleeker, more rugged appearance, unlocking your vehicle’s full lighting potential with style and functionality.

• S8 Stealth Series 8” Driving Light
• Amber or White DRL Halo
• Blackout mounting hardware
• Includes Black cover with DRL Halo window
• 24 x 6W Cree LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal Management Technology
• Lightweight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP68 rated
• Over/under voltage, reverse polarity protection
• CISPR25 approved

SPECIFICATIONS

Part Number	RDL8800C
Description	8” LED Driving Light 10-30V 132W Combination Beam
Beam Pattern	Combination
Maximum Lumens per Light (pair)	7,937Lm (15,874lm)
Maximum Lux @ 10m per Light (pair)	5,900Lx (11,800lx)
Maximum Beam Distance @ 1lx per Light (pair)	768m (1,086m)
Maximum Beam Distance @ 0.5lx per Light (pair)	1,086m (1,536m)
Input Voltage	10-30VDC
Maximum Watts	132W
Number of LEDS	24 x 6W Osram
Current Draw @ 13.8V	9.6 Amps
Lens Construction	Polycarbonate
Housing Construction	Die-Cast Aluminium
Dimensions AxBxC	232 x 83 x 218mm
Wiring Driving Lights	2 Pin Deutsch Plug, Red - Driving Light +Ve, Black - Driving Light -Ve
Wiring DRL Halo	Blue - Amber Position Light +Ve, White - White Position Light +Ve



DIMENSIONS

BEAM DIAGRAM
