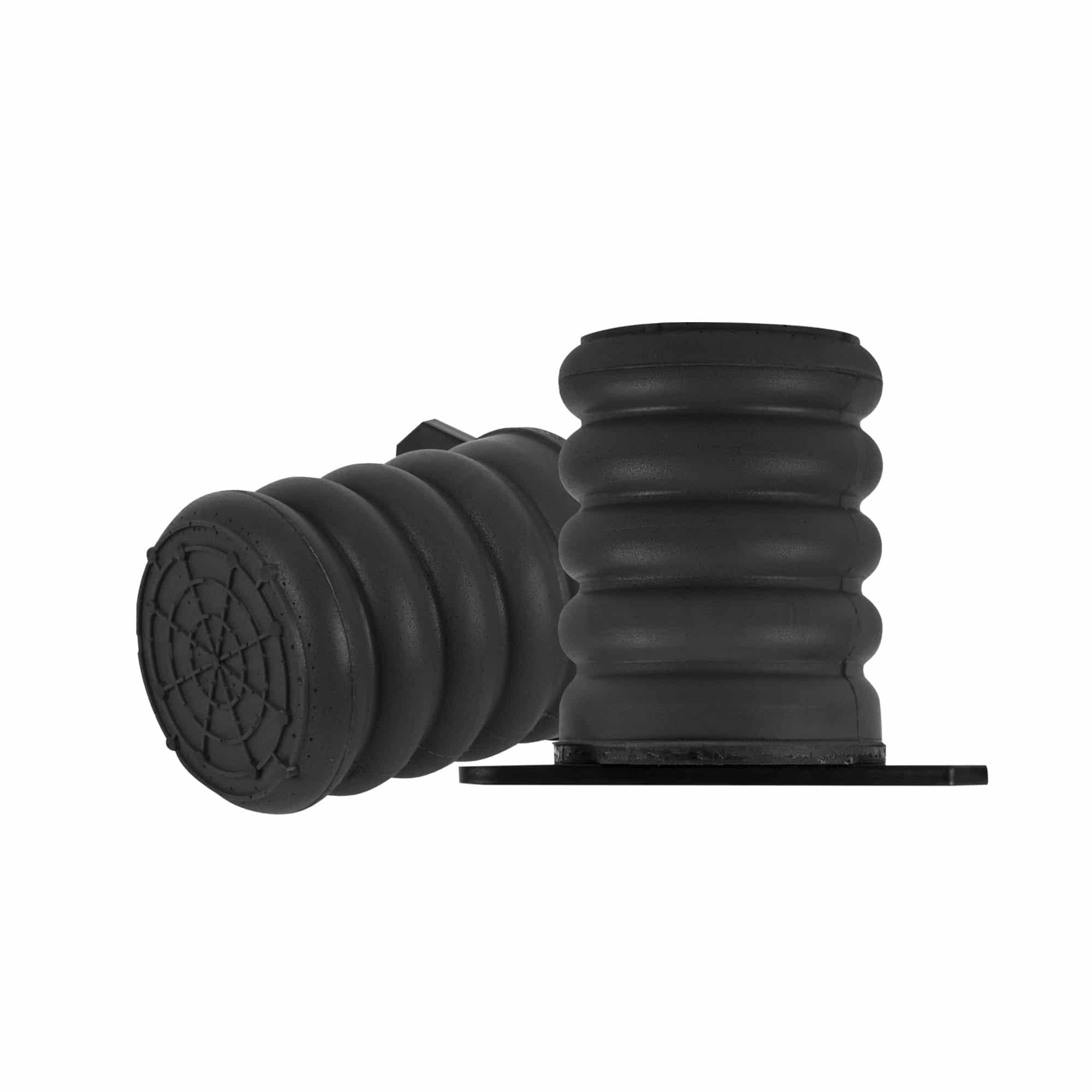

Rear SumoSprings to suit 2014+ Nissan Navara / NP300

Rear SumoSprings are a maintenance-free suspension enhancement built to create a better journey. Handmade from micro-cellular polyurethane, they are designed to reduce rear-end sag and increase load carrying ability while decreasing vibration, stabilising sway, and softening harsh rebounds.

Corrugated and bumpy roads? Throwing a bunch of weight in the back? Hooking up the caravan? Outback Kitters has you covered with these Rear SumoSprings installed.

These airless airbags are installed in the same place as the factory bump stops (similar to Double Bellow Airbags) to give additional load support.

QUICK SPECS

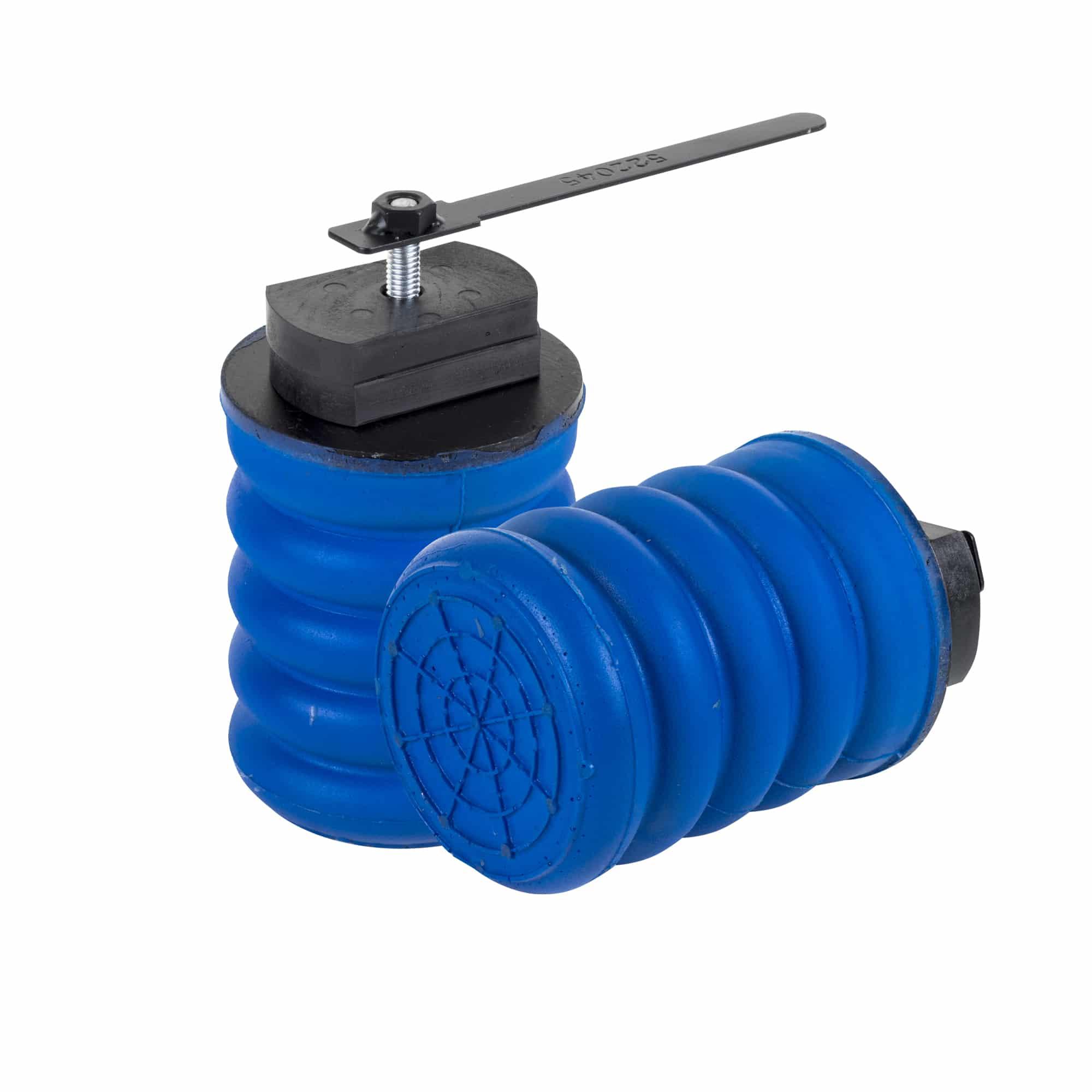

• Light Blue - 450kg Capacity at 50% Compression - Light Blue. Do not exceed 70%.
• Black - 680kg Capacity at 50% Compression - Black. Do not exceed 65%.

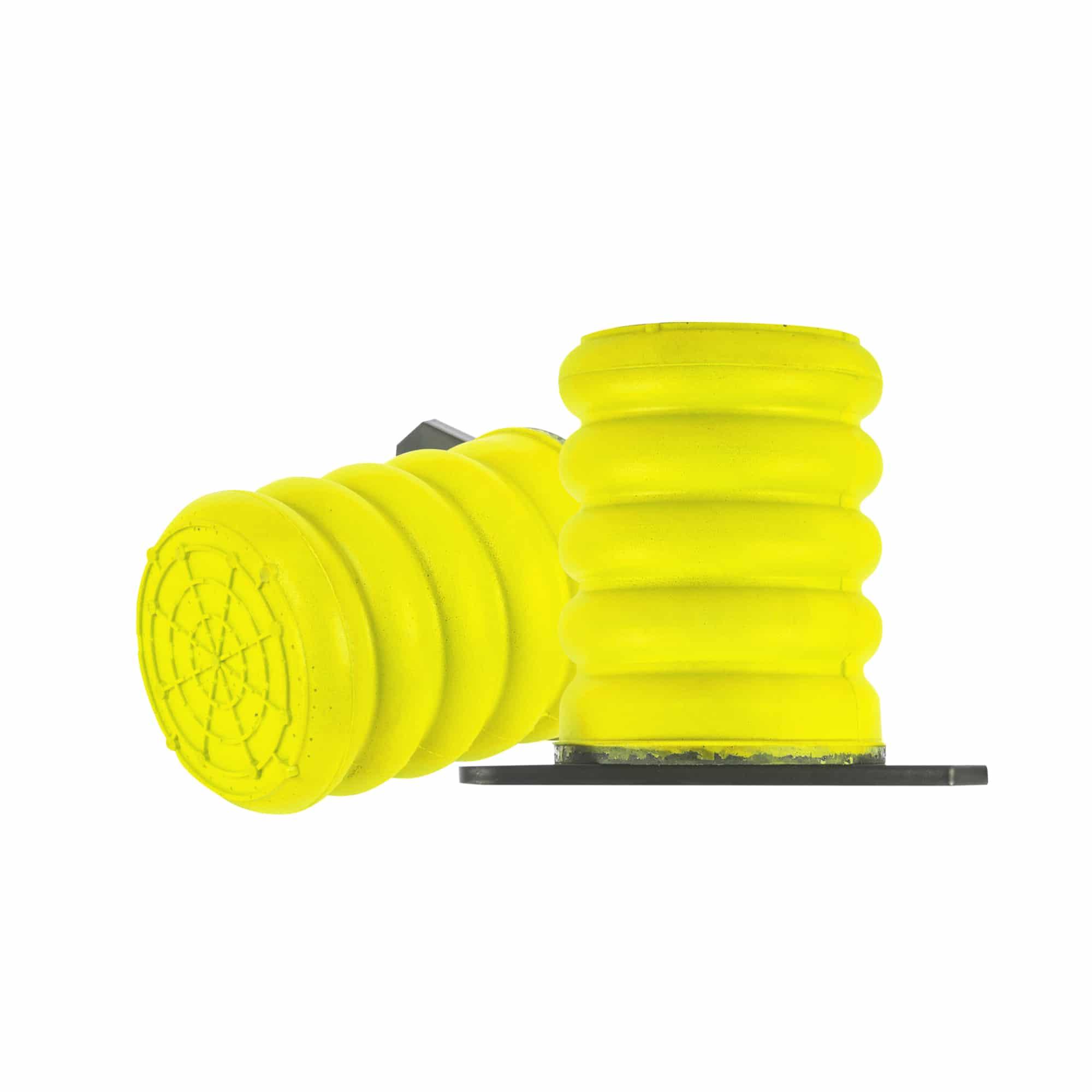

• Yellow - 1,270kg Capacity at 50% Compression - Yellow. Do not exceed 55%.
• Spring Diameter: 4"
• Spring Height: 5"

IMPORTANT NOTES

• The Load Ratings are to demonstrate the loaded capacity when compressed at 50%.
• The SumoSprings should not be compressed past 70% of their original height in order to keep full memory rebound.

KIT  INCLUSION

• Kit includes 1/2" spacers for lifted application.
• Additional spacers are available upon request.

FITMENT

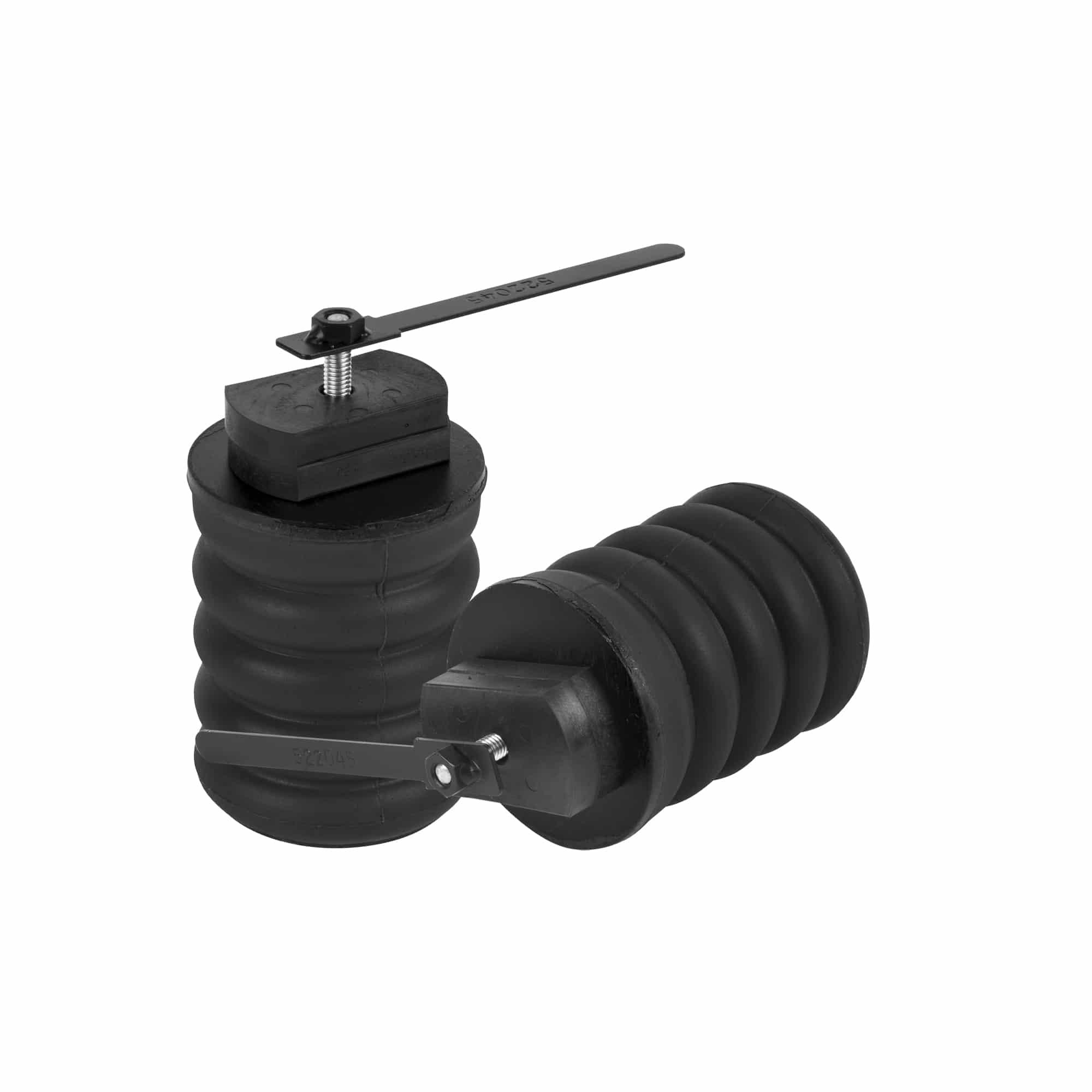

• 2014 - Present Nissan Navara / NP300 with Coil Springs (SSR-619)
• 2014 - Present Nissan Navara / NP300 with Leaf Springs (SSR-620)
• Choose the right variant using the filters.

INSTALLATION

• Installation Guide: Download - Coil Springs
• Installation Guide: Download - Leaf Springs
• Est: Install Time: 30 minutes
• Difficult Level: Moderately Easy
