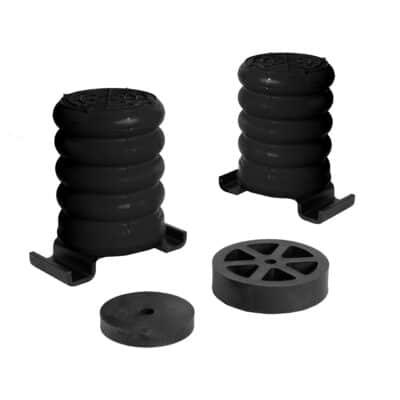

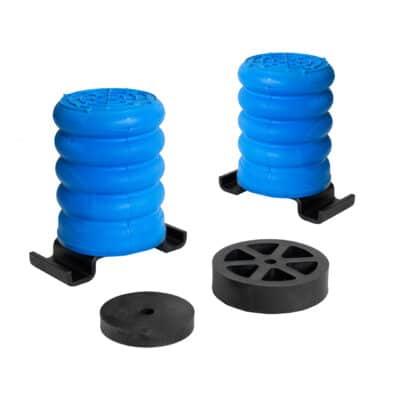

Rear SumoSprings for Isuzu Dmax 2013+/Hilux 2016+

Rear SumoSprings are a maintenance-free suspension enhancement built to create a better journey. Handmade from micro-cellular polyurethane, they are designed to reduce rear-end sag and increase load carrying ability while decreasing vibration, stabilising sway, and softening harsh rebounds.

Corrugated and bumpy roads? Throwing a bunch of weight in the back? Hooking up the caravan? Outback Kitters has you covered with these Rear SumoSprings installed.

These airless airbags are installed in the same place as the factory bump stops (similar to Double Bellow Airbags) to give additional load support.

QUICK SPECS

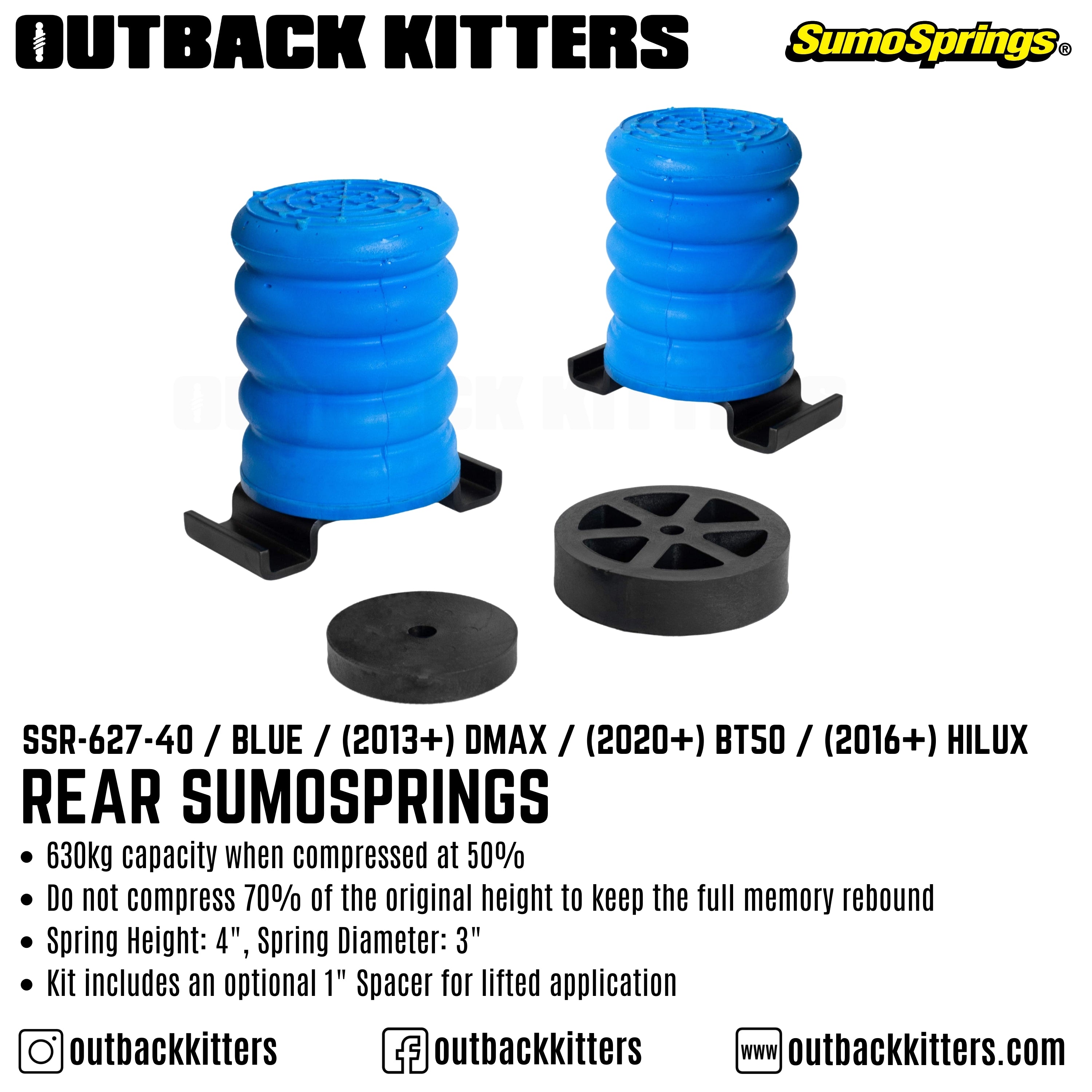

• Blue - 630kg Load Capacity at 50% Compression. Do not exceed 70%

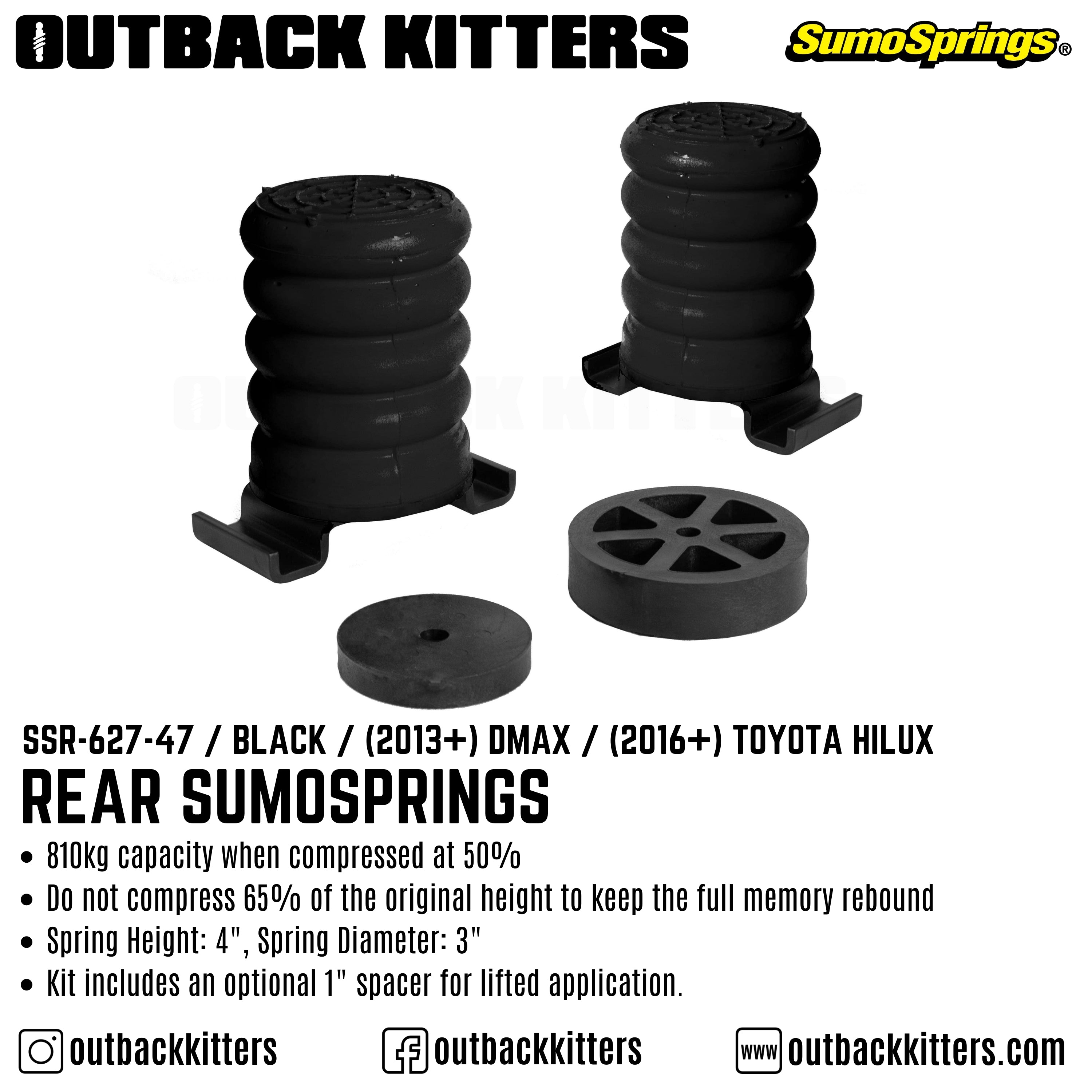

• Black - 810kg Load Capacity at 50% Compression. Do not exceed 65%
• Spring Diameter: 3"
• Spring Height: 4"

IMPORTANT NOTES

• The SumoSprings should not be compressed past 70% of their original height in order to keep full memory rebound.
• The Load Ratings are to demonstrate the loaded capacity when compressed at 50%.

KIT INCLUDES

• Optional 1" Spacer for lifted application.
• Additional spacer options:-
  1" Spacer

FITMENT

• Isuzu D-MAX (2013+)
• Mazda BT50 (2020+)
• Toyota Hilux (2016+)

For the Toyota Hilux (pre-2016) see SSR-626-40

INSTALLATION

• Installation Guide: Download
• Estimated time: 30 minutes
• Difficulty: Moderately Easy
