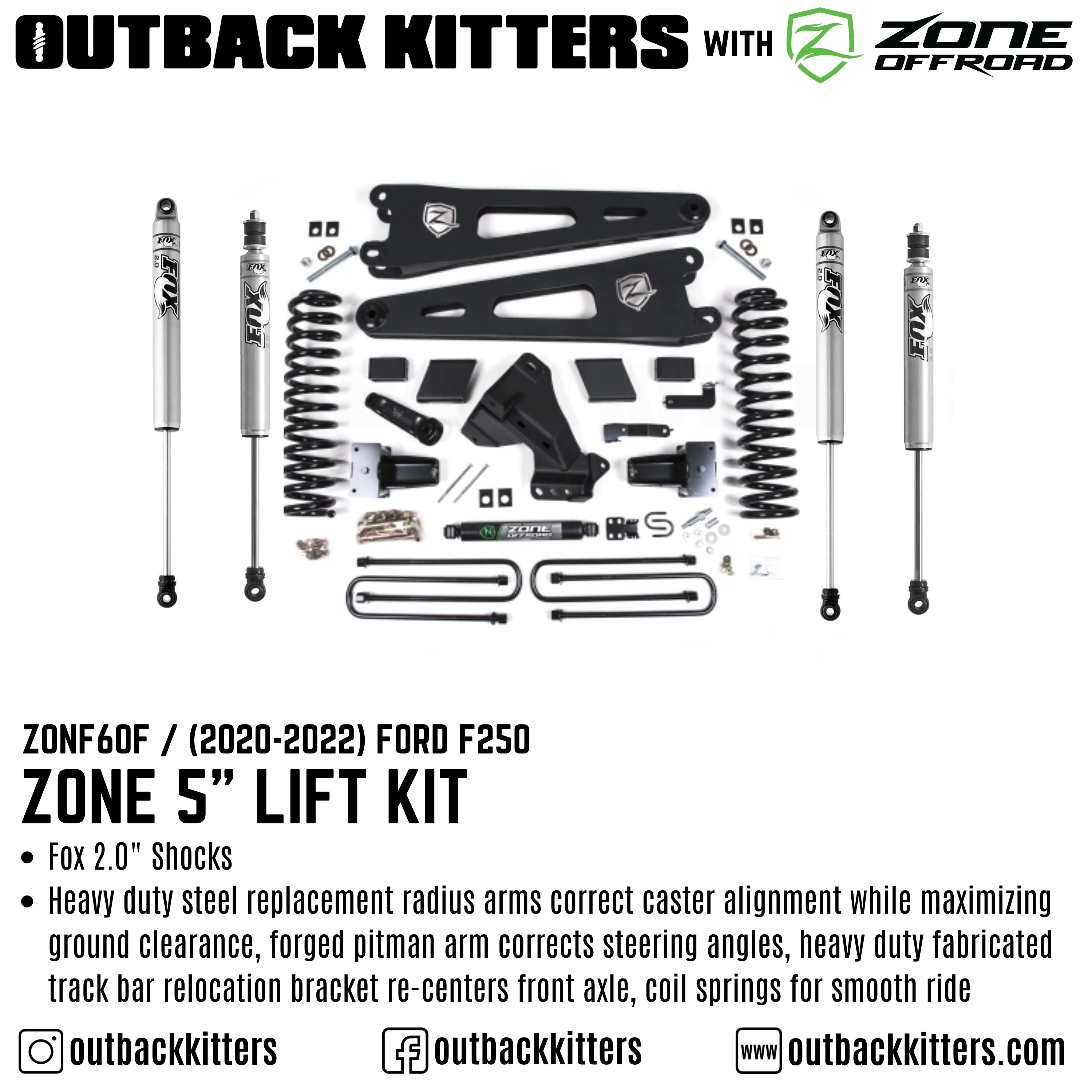

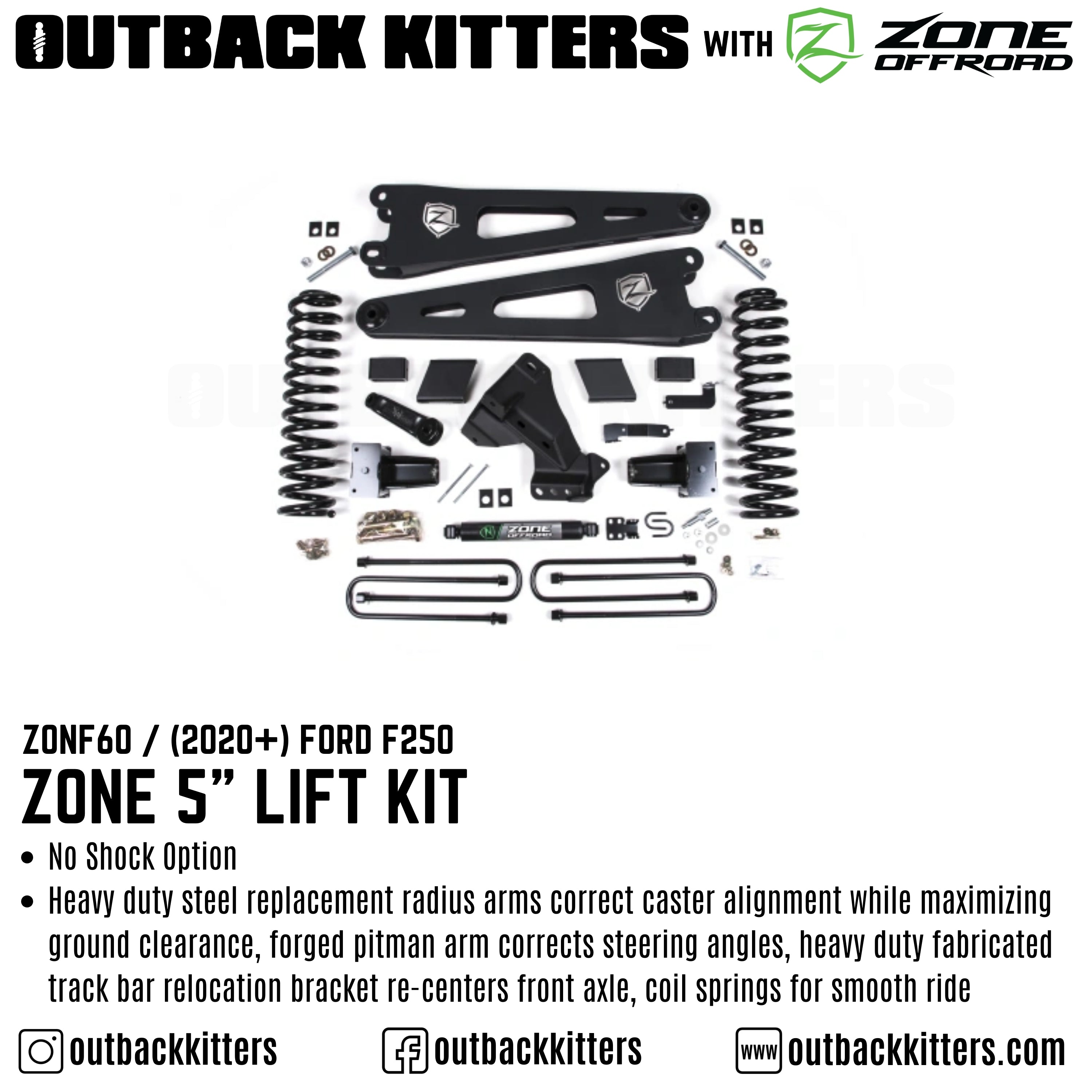

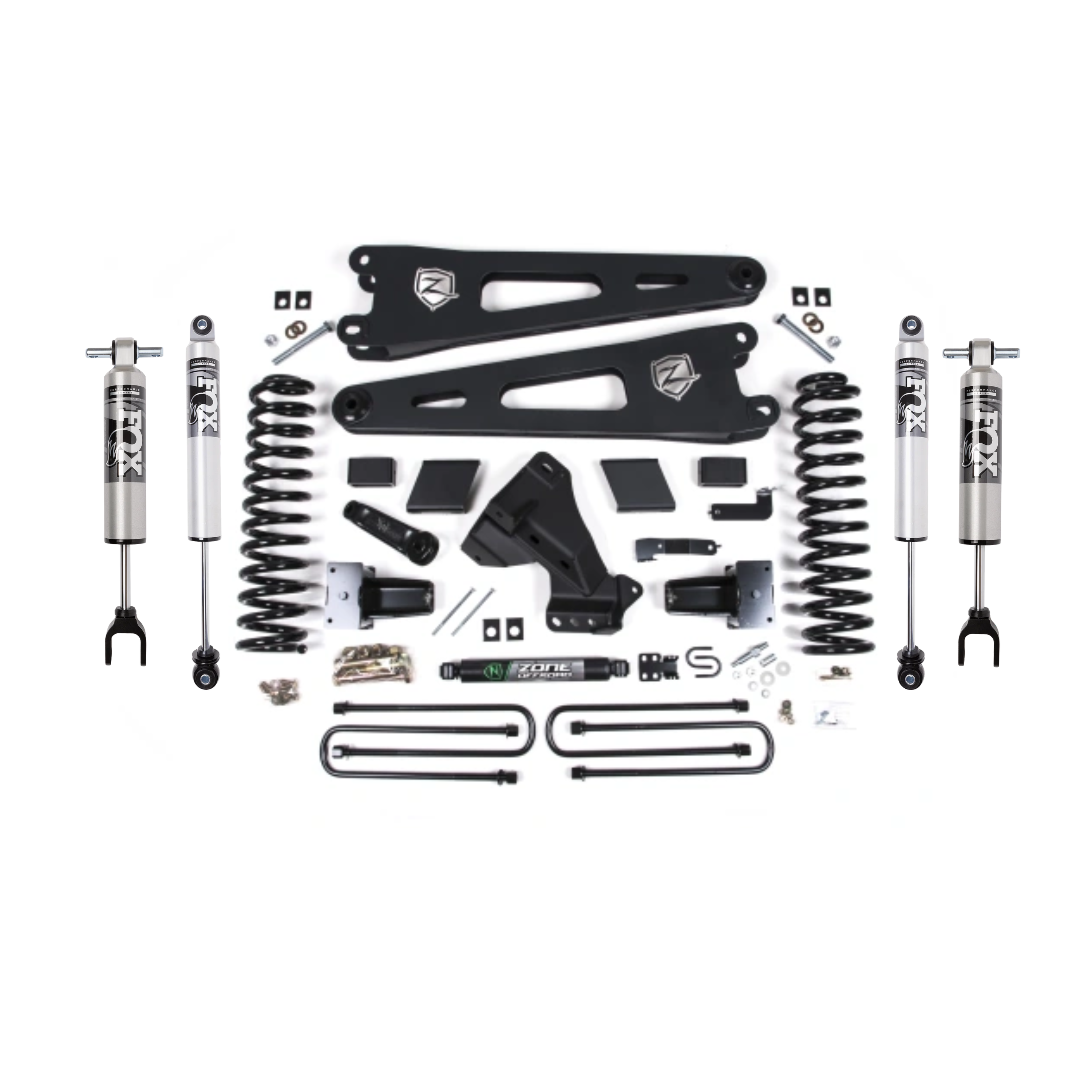

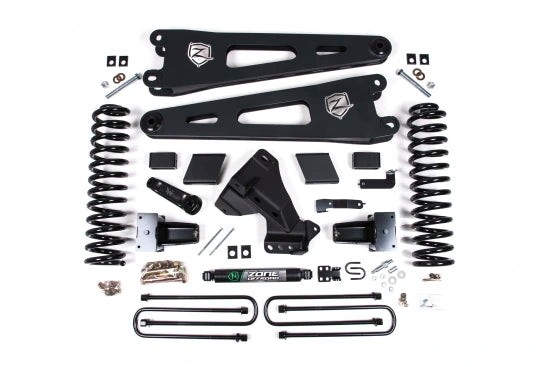

OK with Zone Offroad 5" Lift Kit for 2020-2022 Ford F250/F350

SPECIFICATIONS

• Front Lift Height: 5"
• Rear Lift Height: 3
• Material: Metal
• Front Lift Method: Coil Springs
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: 20 x 9
• Back Spacing: 4.5"
• Max Tire Size: 37 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 4.5"
• Max Tire Size 2: 37 x 12.5
• Is Adjustable: No
• Finish: Powdercoat
• Cutting Required: No
• Welding Required: No

RECOMMENDED TIRES AND WHEELS

• Wheel Size: 20 x 9
• Back Spacing: 4.5"
• Max Tire Size: 37 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 4.5"
• Max Tire Size 2: 37 x 12.5

IMPORTANT NOTES

*If you have a VDC Conversion, additional parts are required. Please contact us upon ordering so we can advise you on what part is required and where to source it from.

• 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift

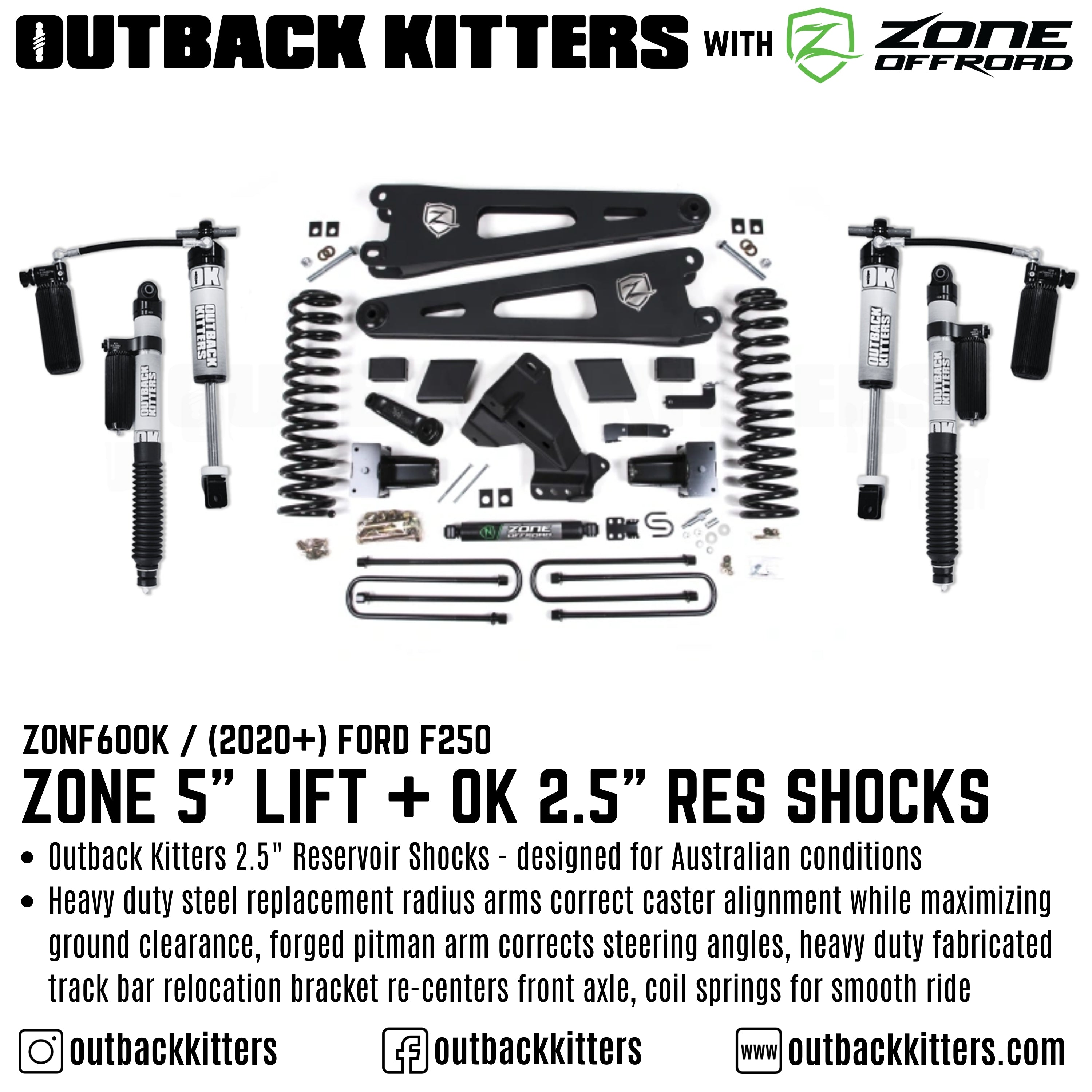

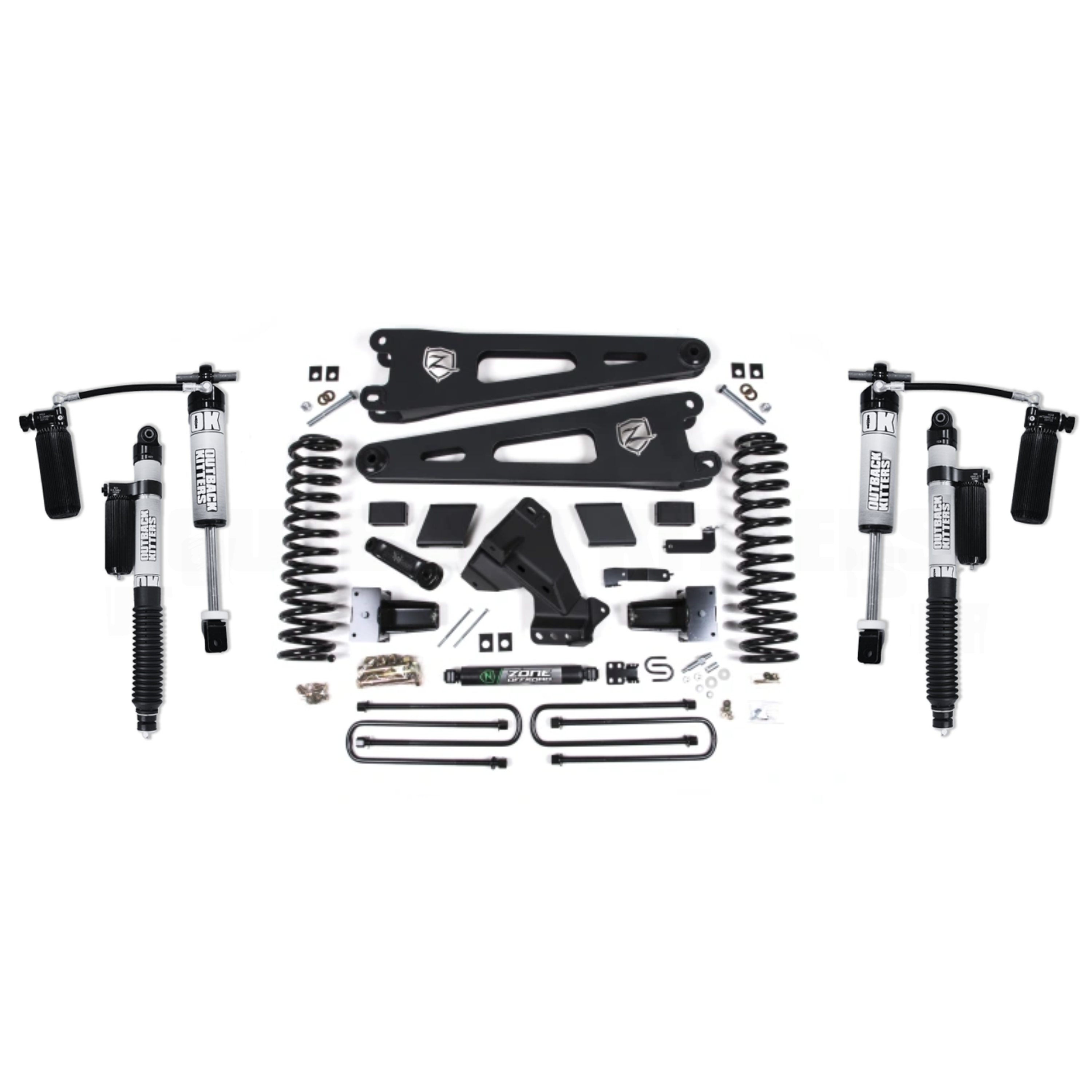

• Available with Outback Kitters 2.5" Remote Reservoir Shocks or without shocks for you to source an alternative brand. driveline angles and avoid / eliminate driveshaft vibration. When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.

INSTALLATION

• Installation Guide: Download
• Estimated time: 4-6 hours
• Difficulty Level: Moderate

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
