Vendor: Zone Offroad
Product Type: 5" Lift Kit
SKU: ZONC12HTO
Stock: Checking...
$6,200.00
$6,200.00
Please hurry! Only 1 left in stock

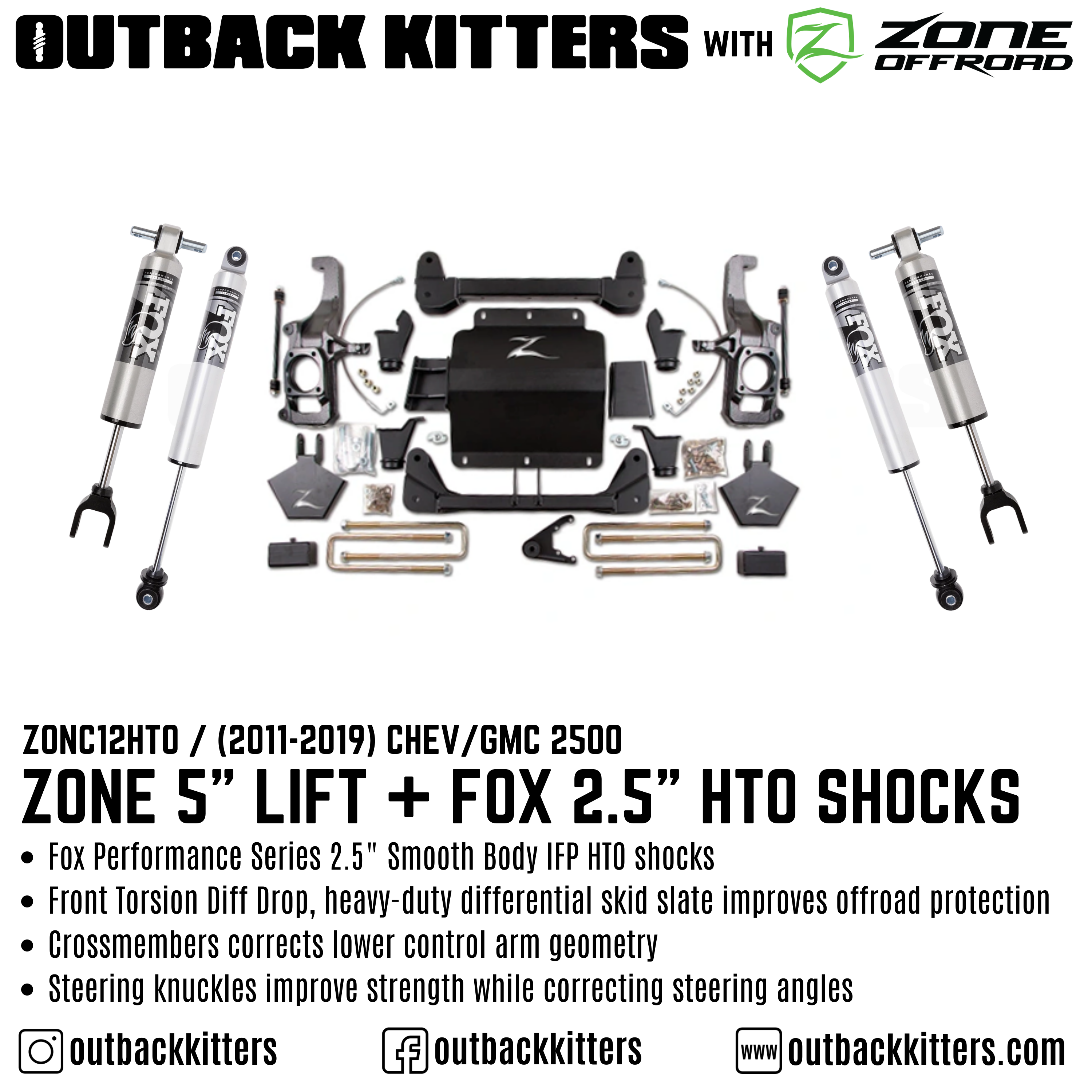

Shock Options: Fox 2.5" HTO
OVERVIEW

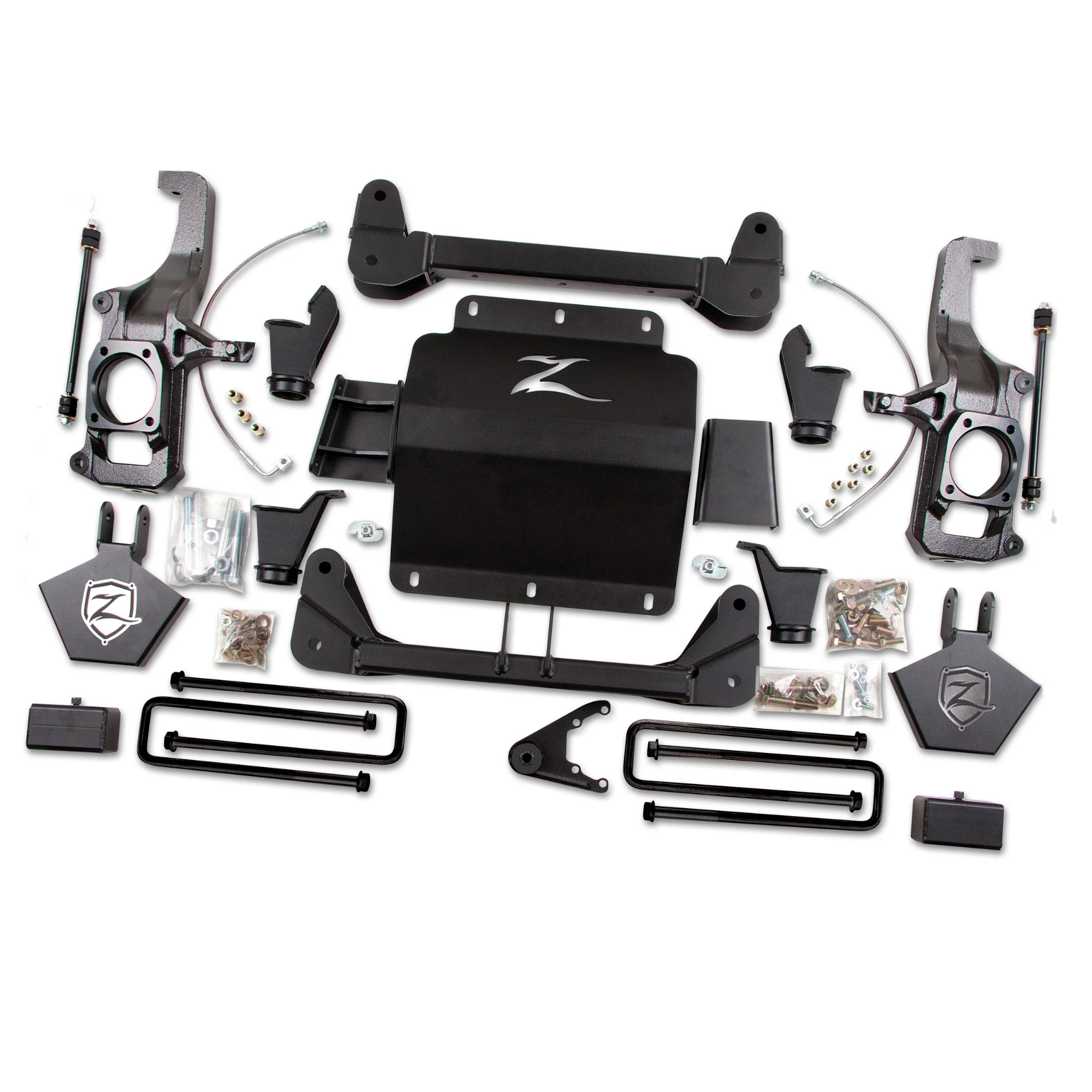

ZONE 5" Lift Kit

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011 - 2019 Chevy/GM 2500HD /3500HD truck. If you’re going to do it, do it right.

SPECIFICATIONS

SPECIFICATIONS

  • Max Tire Size: 35 x 12
  • Front Lift Height: 5"
  • Rear Lift Height: 3"
TYRES & WHEELS
IMPORTANT NOTES

IMPORTANT NOTES

  • 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
  • Fitment: WILL fit RWD models, however the front differential related parts in kit will not be used.
  • Frame bracket modifications required for installation.
  • Mod's Required: Modifications required for installation. See installation instructions for more information.
  • Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
  • Stock 17" or 18" Wheels cannot be re-installed.
  • Stock 20" wheels cannot be reinstalled on 2015-2018 models.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Will fit RWD models. The front differential related parts will not be used.
  • With a 20" Wheel, 5"-6" backspacing is recommended.
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
INSTALLATION

INSTALLATION

  • Installation Guide: Download
  • Estimated Time: 7 hours
  • Difficulty Level: Medium-Hard

REQUIRED TOOLS

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.

Features & Benefits
FITMENT
