OK with Zone Offroad 4" Lift Kit for 2022+ Chev 1500 ZR2

Vendor: Zone Offroad
Product Type: 4" Lift Kit
SKU: ZONC73
Stock: Checking...
$4,180.00
$4,180.00
Please hurry! Only 0 left in stock
OK by Zone 4" Lift Kit for 2022+ Chev 1500 ZR2 - Outback Kitters

OK with Zone Offroad 4" Lift Kit for 2022+ Chev 1500 ZR2

$4,180.00
OK by Zone 4" Lift Kit for 2022+ Chev 1500 ZR2 - Outback Kitters
OK with Zone Offroad 4" Lift Kit for 2022+ Chev 1500 ZR2 - Outback Kitters

OK with Zone Offroad 4" Lift Kit for 2022+ Chev 1500 ZR2

$4,180.00
Overview

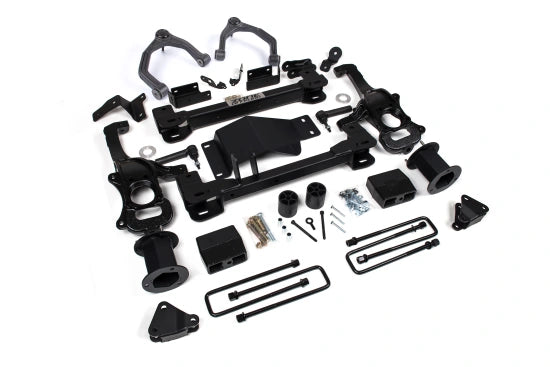

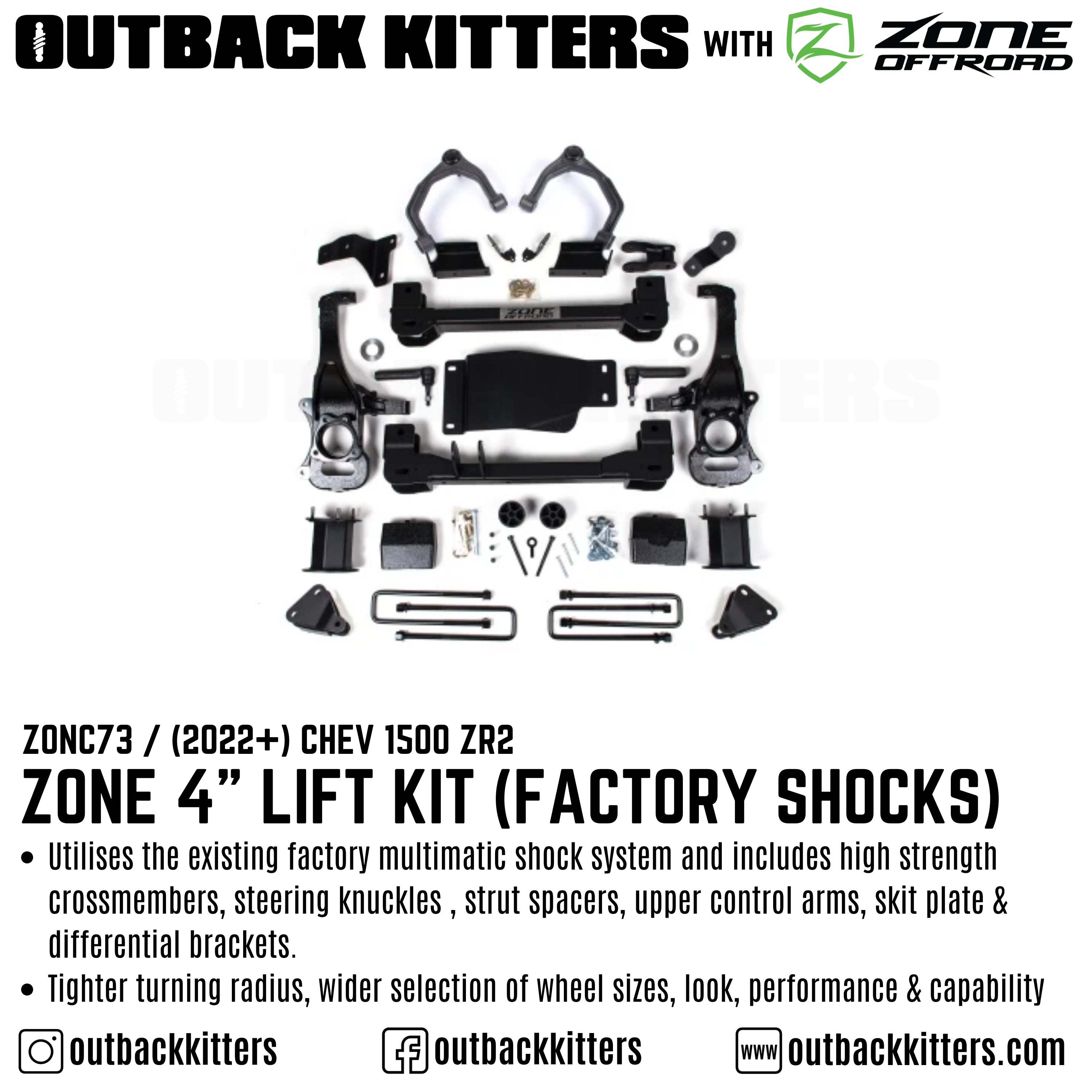

Take your Chevy ZR2 / ATX4 to new heights with this 4" lift kit from Zone Offroad. This system raises ride height 4” over stock and will sit at the same height as a 6” system would on a standard truck. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, upper control arms and differential brackets to maintain driveline angles. This system is designed to take full advantage of the factory Multimatic shock system by correctly positioning them with an upper strut spacer in front and a relocation bracket in the rear. Our unique knuckle design allows for a much tighter turning radius than our competition, as well as a wider selection of wheel fitment options. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Specifications

SPECIFICATIONS

Chevy

  • Max Tire Size: 35/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"
  • Confirmed Fitment: 18x9 Wheel with -12 Offset running 35x12.5R18 Tyre fits. 37" tyres also fit with minor scrubbing on full lock.

GMC

  • Max Tire Size: 33/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"
Tyre & Wheel

RECOMMENDED TIRES AND WHEELS

Chevy

  • Max Tire Size: 35/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"
  • Confirmed Fitment: 18x9 Wheel with -12 Offset running 35x12.5R18 Tyre
  • 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
  • 20" wheels are recommended to clear the extended knuckle and tie rod end.

GMC

  • Max Tire Size: 33/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"
  • 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
  • 20" wheels are recommended to clear the extended knuckle and tie rod end.
Important Notes

IMPORTANT NOTES

Chevy

  • Max Tire Size: 35/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"
    Confirmed Fitment: 18x9 Wheel with -12 Offset running 35x12.5R18 Tyre fits. 37" tyres also fit with minor scrubbing on full lock.

GMC:

  • Max Tire Size: 33/12.5
  • Wheel Size: 20X9
  • Backspacing: 5.5"Requires frame bracket modification
  • Designed to fit ZR2 or AT4X trucks only equipped with MultiMatic shocks
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference, stock 20" wheels can be reinstalled
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure clearance to brake caliper
  • Some wheel profiles will not clear the brake caliper. This can be test fit before the vehicle is lifted while still in stock condition
  • Front skid plate will not work with 2.7L Turbo Engines
  • Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
Installation

INSTALLATION

Installation Guide: Download

Estimated Time: 8 hours

Difficulty Level: Medium
