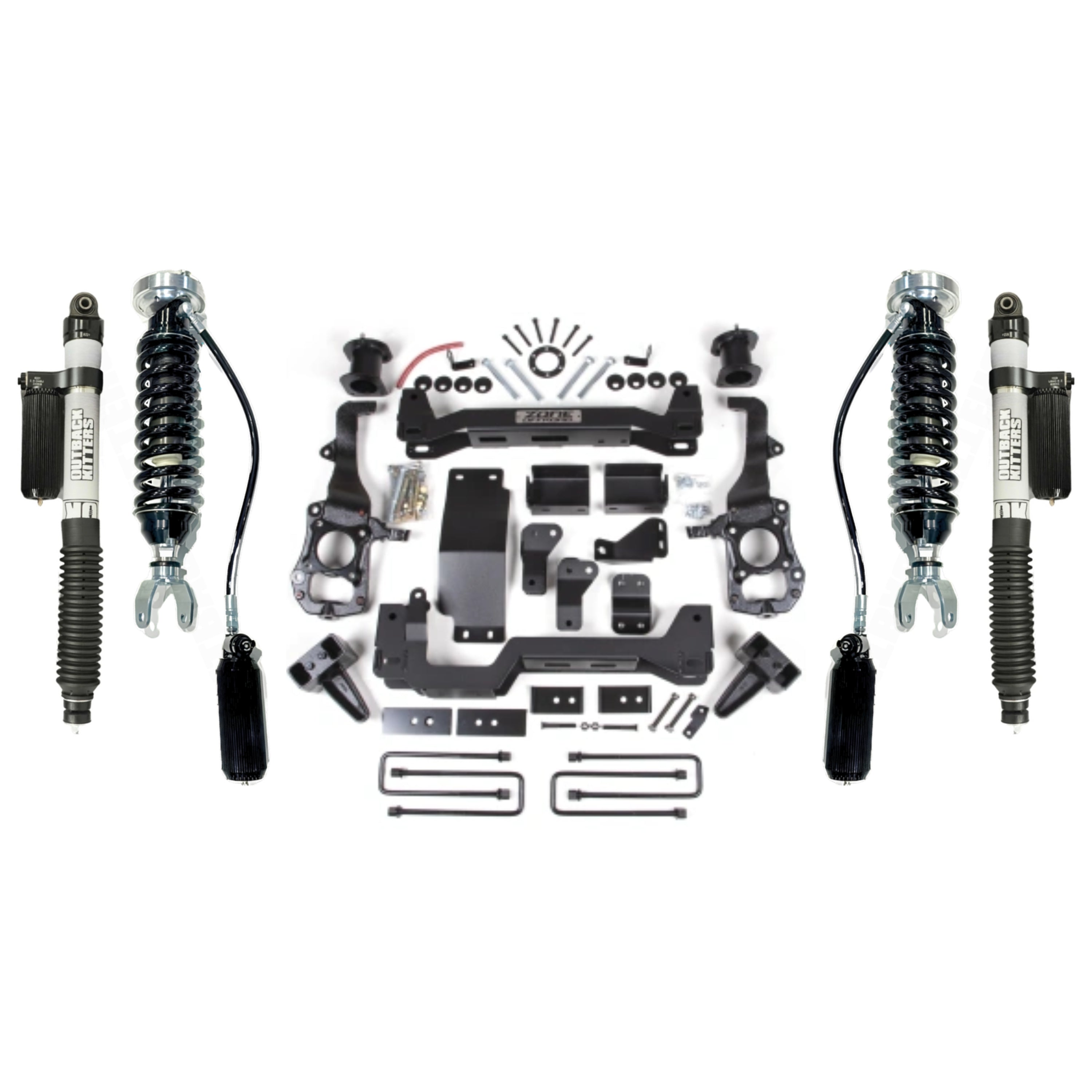

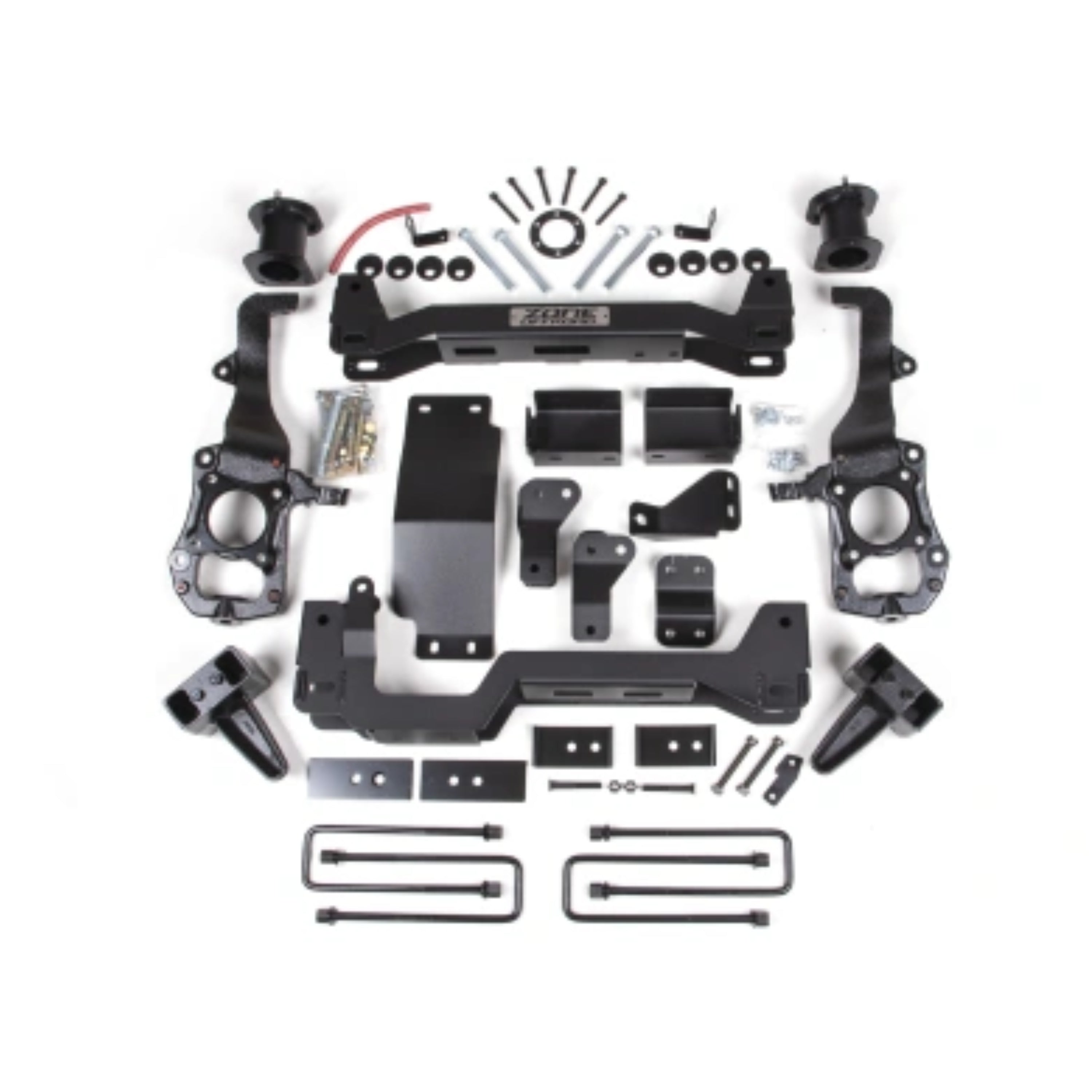

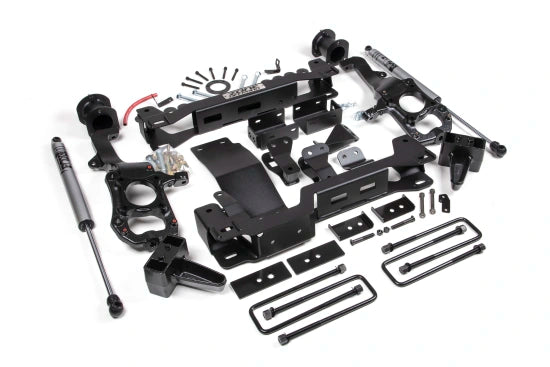

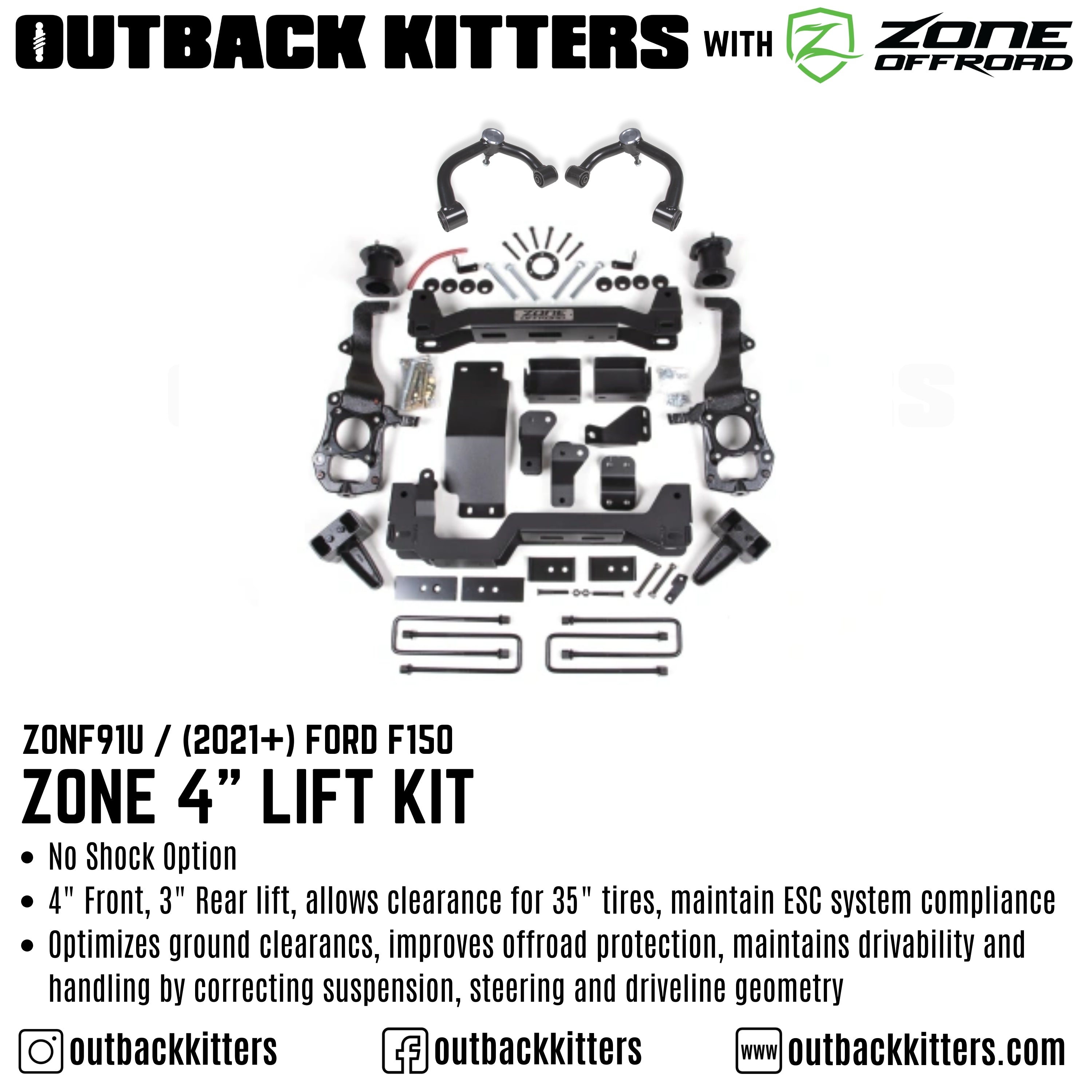

OK with Zone Offroad 4" Lift Kit for 2021+ Ford F150

SPECIFICATIONS

• Front Lift Height 4"
• Material: Steel
• Front Lift Method: Strut Spacers
• Lift Type: Suspension
• Finish: Powdercoat

RECOMMENDED TIRE AND WHEELS

• Wheel Size: 20 x 9
• Back Spacing: 4.5-5″
• Max Tire Size" 35 x 12.5
• Wheel Size 2: 20 x 9
• Back Spacing 2: 4.5-5"
• Max Tire Size 2: 295 / 70
• 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
• 20" wheels are recommended to clear the extended knuckle and tie rod end.

IMPORTANT NOTES

• Will fit models with Auto 4wd that do NOT have the 4WD actuator hub assembly
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.”
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20’ wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance. 37" tires will require crash bar modification
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
• Block kits replace factory 1-1/4” block. Stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.Will not work with trucks equipped with CCD (Continuous Controlled Damping)
• Does not fit diesel models.
• Will not fit Tremor models.
• Requires frame bracket modification
• This system has not been tested on models equipped with Ford BlueCruise

INSTALLATION

• Installation Guide: Download
• Estimated time: 9-10 hours
• Difficulty Level: Moderately Hard

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
