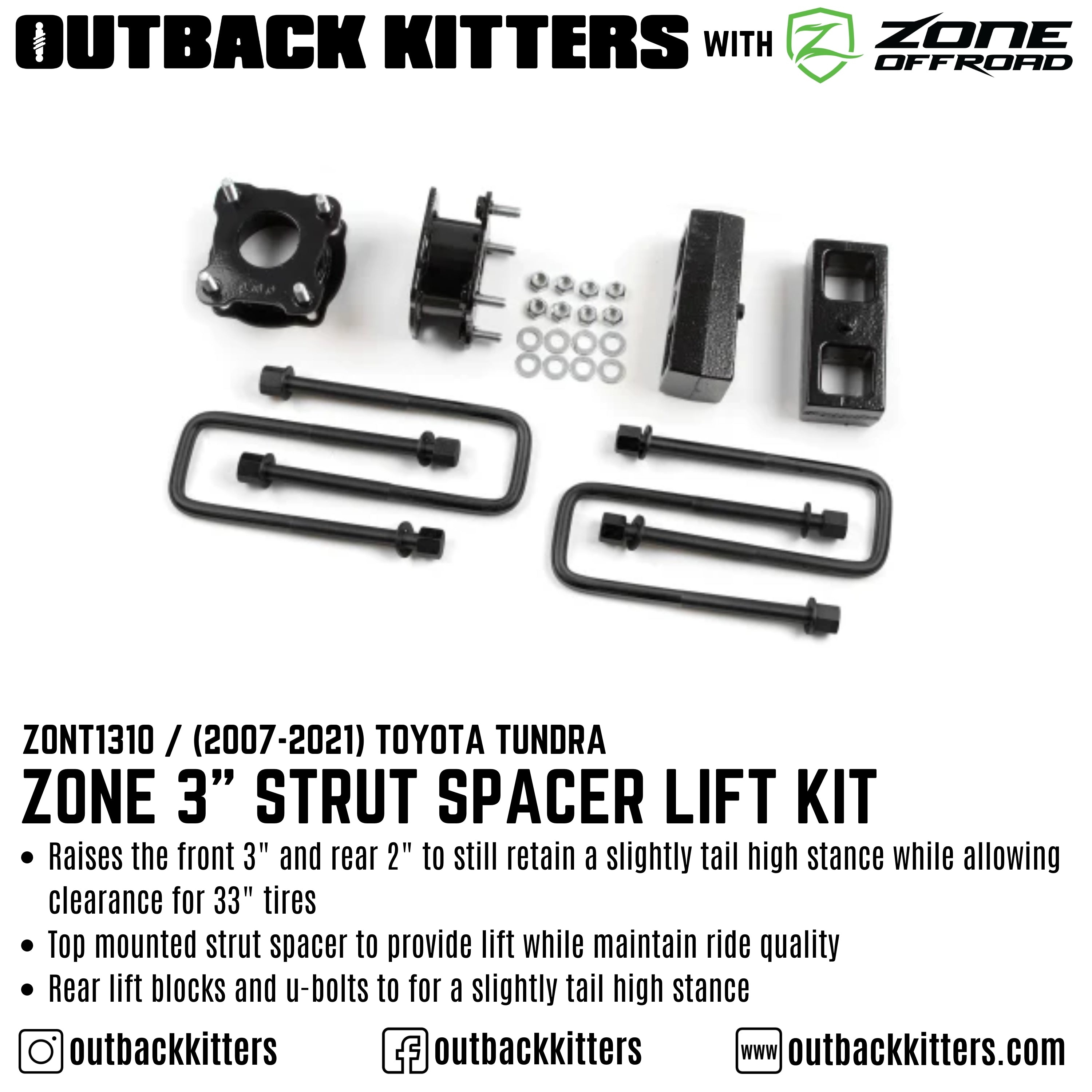

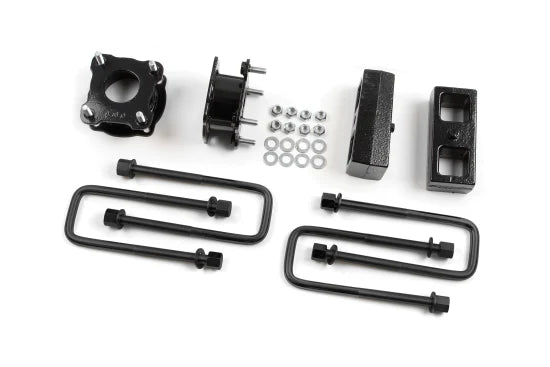

OK with Zone Offroad 3" Lift Kit for 2007-2021 Toyota Tundra

SPECIFICATION

• Front Lift Height: 3"
• Rear Lift Height: 2"
• Front Lift Method: Strut Spacers
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: Stock
• Back Spacing: Stock
• Max Tire Size: 33 x 12.5"
• Wheel Size 2: 20 x 9
• Back Spacing 2: 5"
• Max Tire Size 2: 33 x 12.5
• Is Adjustable: No
• Finish: e-Coat
• Cutting Required: No
• FMVSS Certification: No
• Accommodates Factory Wheels: Yes
• Welding Required: No

IMPORTANT NOTES

• Recommended to add the Diff Drop Kit and UCAs
• 4x4 Differential Drop Kit: Recommended on 4x4 models to reposition the front differential to improve CV operating angles to prolong the life of these components. Add in configuration / checkout.
• Prevent Tire Rubbing: Bump stop extensions recommended to keep springs from being over-compressed and prevent tire rubbing, especially when off-road.

INSTALLATION

• Installation Guide: Download Guide 1
• Install Time Hours : 4 hrs
• Difficulty Level: 2 out of 5

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
