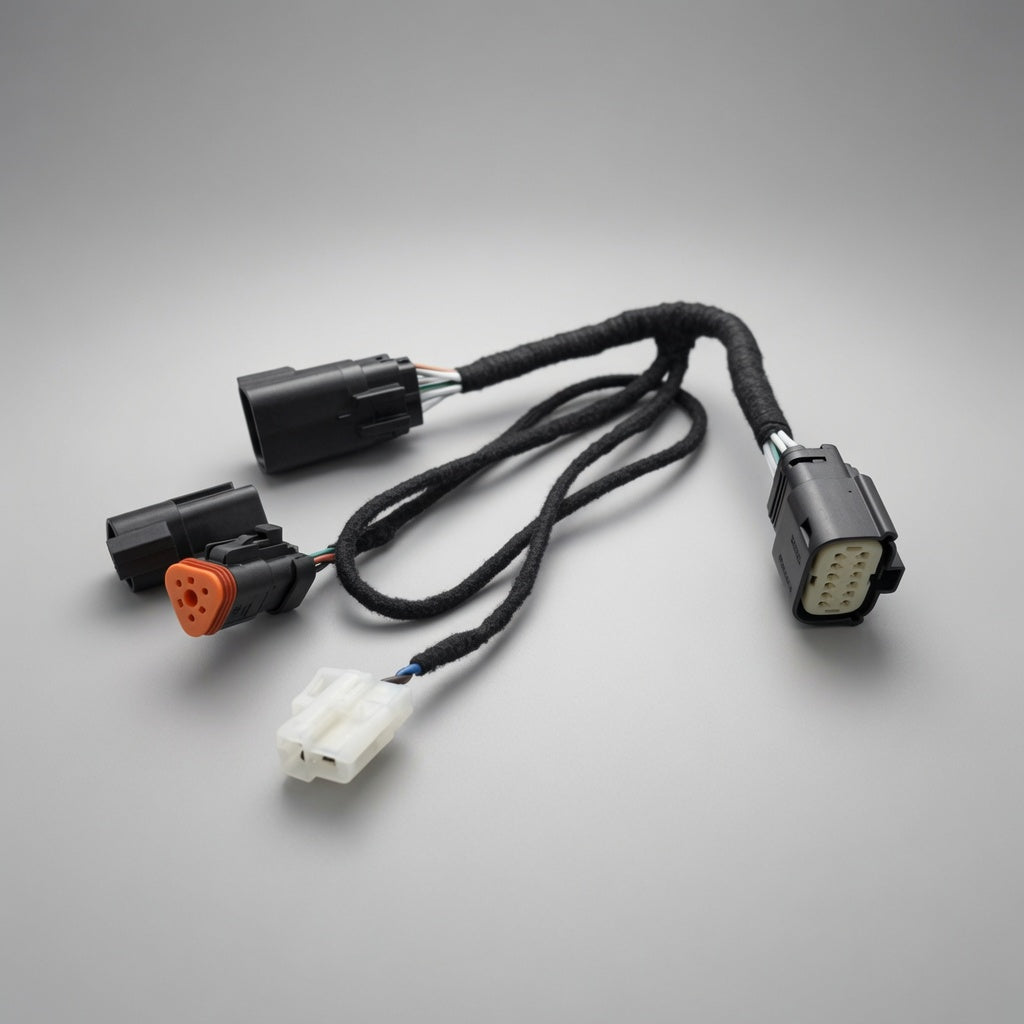

Headlight High Beam Trigger Patch Harness for Ram 1500 DT/2500

Plug & Play Spotlight Integration – No Wire Cutting Required

Light up the tracks the smart way with the Outback Kitters High Beam Patch Harness, engineered specifically for the Ram  1500DT / 2500. This simple, plug-and-play solution allows you to seamlessly connect your driving lights, spotlights, or LED light bars so they switch on automatically with your factory high beam—no splicing, soldering, or wire tapping required.

Whether you're installing auxiliary lighting for off-road adventures or upgrading your night-time visibility, this harness eliminates the guesswork and protects your vehicle’s factory wiring.

FITMENT

This headlight high beam patch harness comes with three different options:-

• 12 Pin (most commonly found on Ram 2500's)
• 12 Pin (2019+ RAM 1500 Big Horn)
• 16 Pin (most commonly found on Ram 1500 DT's)

12 PIN DESIGNED FOR:

• Tradesman
• Big Horn (-2018)
• Laramie (also available as a 16 pin - MUST CHECK BEFORE ORDERING)

Typically the 12 Pin Harness is for the Base Models (Tradesman / Big Horn) and the 16 Pin Harness is for the Premium Headlights with LEDs (Laramie / Limited / TRX). We have noticed however some Premium LED Headlights have been coming with the 12 Pin Harness so double check the pin out connect.

12 PIN DESIGNED FOR:

• Big Horn (2019+)

16 PIN DESIGNED FOR:

• Laramie (these also come in a 12 Pin - MUST CHECK BEFORE ORDERING)
• Longhorn
• Limited
• TRX

INSTALLATION

For instructions on how to install but to also choose the right harness:

PREVIOUS SKU

• OKWHRA003 - 12-pin (use OK131003)
• OKWHRA002 - 16-pin (use OK131002)
