2.5 " Lift Kit with Fox 2.5 shocks suits Ford F-450 Super Duty (2023-2026) by BDS Suspension

2.5 " Lift Kit with Fox 2.5 shocks suits Ford F-450 Super Duty (2023-2026) by BDS Suspension

Vendor: BDS Suspension
Product Type: 2.5" Lift Kit
SKU: BDS1306FPE
Stock: Checking...
$11,925.00
$11,925.00

Have questions or need help? Our team is available to take your call on 0483 939 770.

OVERVIEW

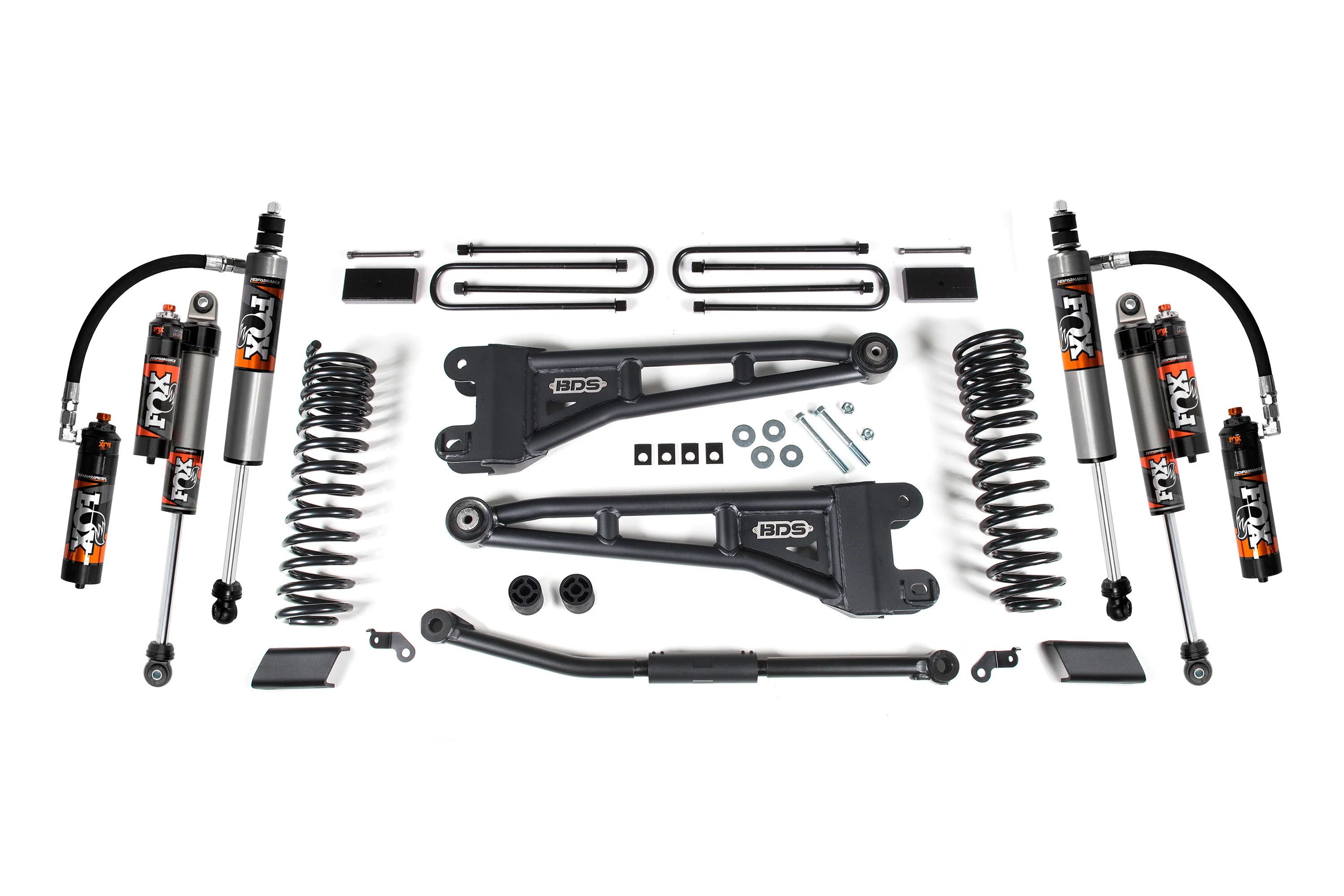

Level out and take your Ford Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

SPECIFICATIONS
  • Front Lift Method : Coil Spring
  • Front Lift Height : 2.5"
  • Rear Lift Method : Block
  • Rear Lift Height : 1"
  • Shocks Included : Yes
FEATURE & BENEFITS
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
TYRES & WHEELS
  • 35 x 12.5 with and in. Backspace
  • Max Tire Size: 35x12.50
  • Front Wheel: 20x8.25, 8.76" BS
  • Rear Outer: 20x8.25, -3.33" BS
  • Rear Inner: 20x8.25, 9.11" BS

(Trimming may be required)

IMPORTANT NOTES
  1. Diesel vehicles with radius arm mounted ride height sensors will require BDS123303
  2. This kit does not work with Gas models equipped with ride height sensors.
  3. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
  4. Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  5. Installation requires a torque wrench capable of 405 ft-lbs.
  6. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
INSTALLATION

Installation Guides : Download Guide 1

Est. Install Time : 5 hrs

Difficulty Level : Moderate

Specialty Tools Needed : 30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Pulle

FITMENT
