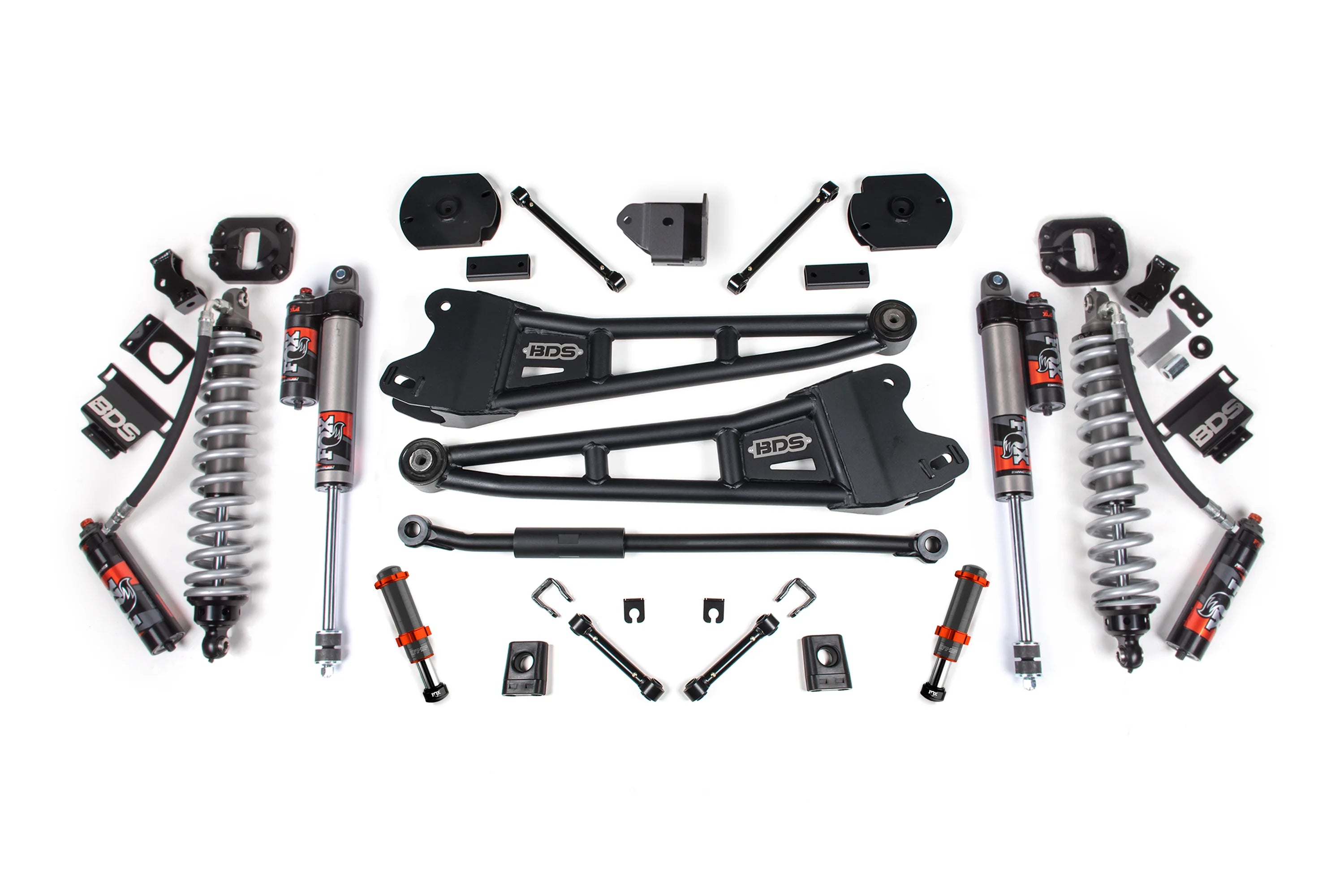

BDS Suspension Coil-Over Conversion 3" Lift Kit with Radius Arms

BDS Suspension Coil-Over Conversion 3" Lift Kit with Radius Arms

Vendor: BDS Suspension
Product Type: 3" Lift Kit
SKU: BDS1624PES
Stock: Checking...
$15,100.00
$15,100.00
Please hurry! Only 0 left in stock

Have questions or need help? Our team is available to take your call on 0483 939 770.

OVERVIEW

Built to take abuse and ask for more, the BDS 3" Radius Arm Lift Kit for RAM 2500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS radius arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers—giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Looking to push harder? The optional FOX 2.0 hydraulic bump stops for the front are a must. These add an extra layer of control when you’re hitting hard or landing heavy, soaking up big impacts and keeping things in check.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Features & Benefits

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
  • Front adjustible track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

Rubber Bump Stop:

Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light offroading where the bump stops will be engaged at low speeds.

FOX 2.0 Factory Race Series Hydro Bump Stop:

Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

SPECIFICATIONS
  • Front Lift Method : Coil-Over
  • Front Lift Height : 3
  • Rear Lift Method : Coil Spacer
  • Rear Lift Height : 1.25"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"
TYRES & WHEELS

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

IMPORTANT NOTES
  1. Will not fit air ride equipped models
  2. Diesel models only
  3. Not designed for PowerWagon models
  4. If experiencing drive line vibration Indexing rings are avaliable for 6 and 8 bolt equipped models. Available in Customize menu
INSTALLATION

Installation Guides :

Est. Install Time : 7-8 hrs

Difficulty Level : Difficult

Specialty Tools Needed : 8677 Chrysler ball joint seperation tool (or Equiv), Cut Off Wheel or Equiv., Plasma Cutter, Welding Equipment
