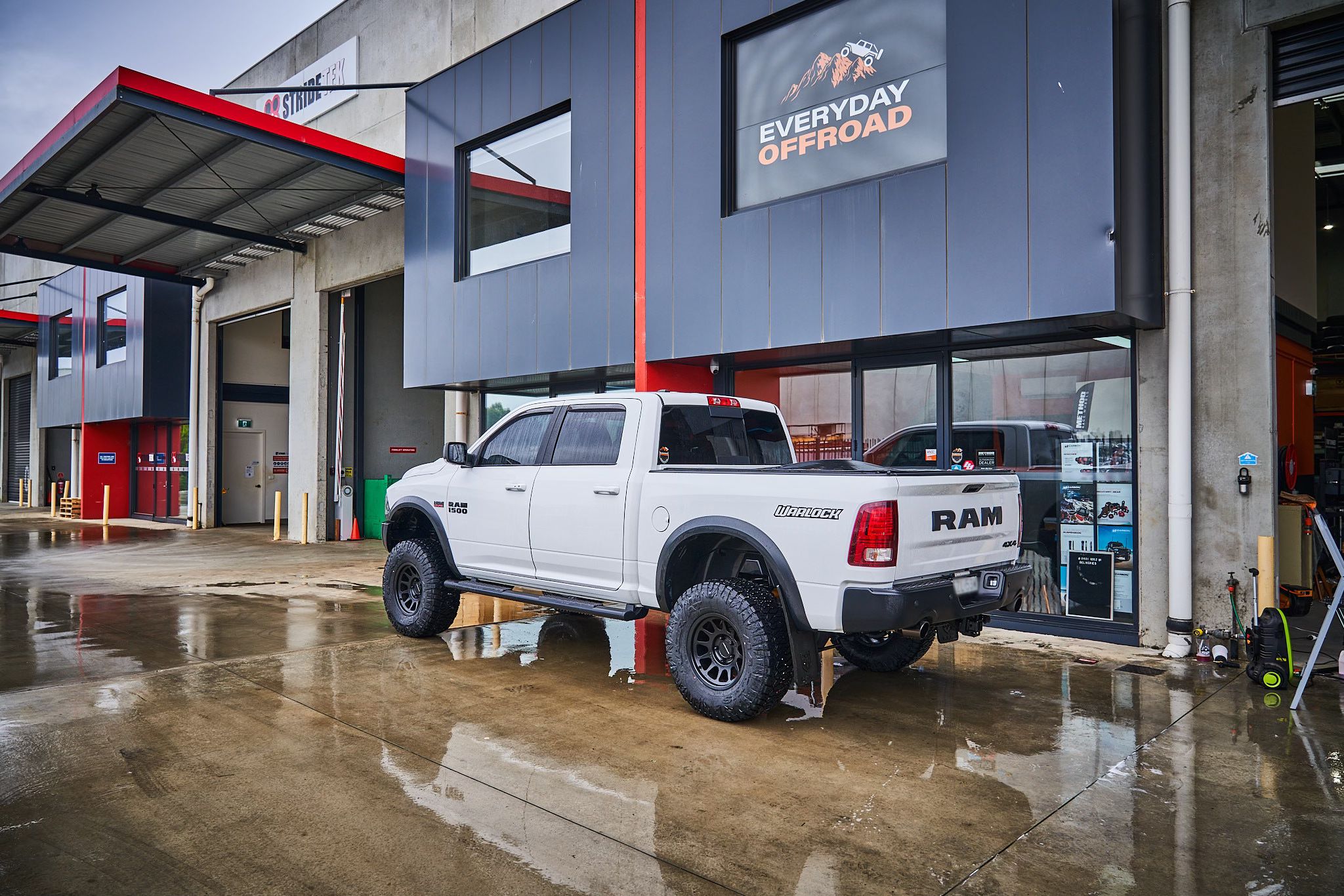

BDS Suspension 6" Lift Kit for Ram 1500 DS

Go sky high with the BDS Suspension 6" Lift Kit for the Ram 1500 DS.

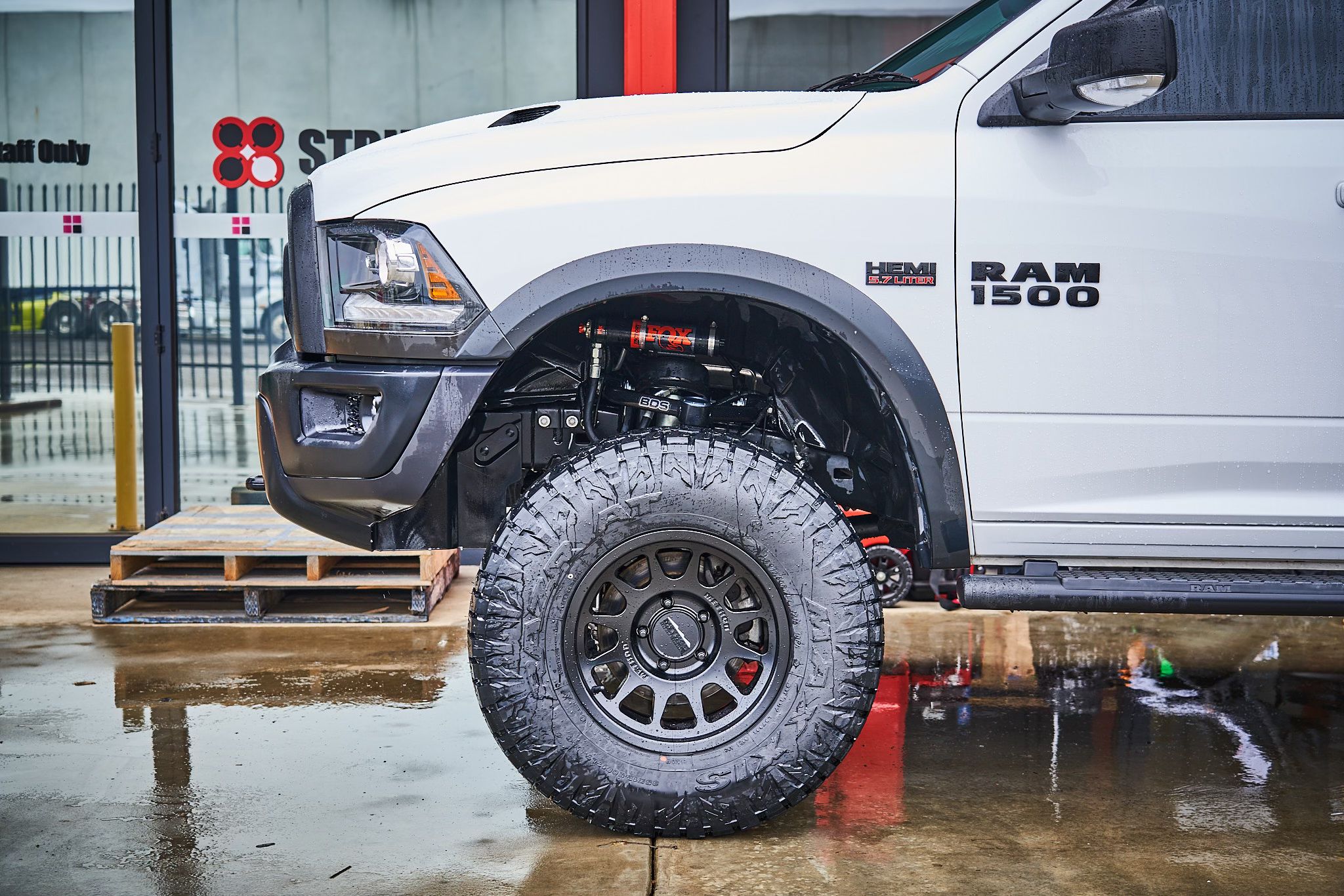

This BDS Suspension 6" Lift Kit for Ram 1500 DS provides increased ground clearance and stability with the massive 6" lift, plus the performance-enhancing features of the Fox 2.5" Remote Reservoir Coilover Front Shocks Shocks.

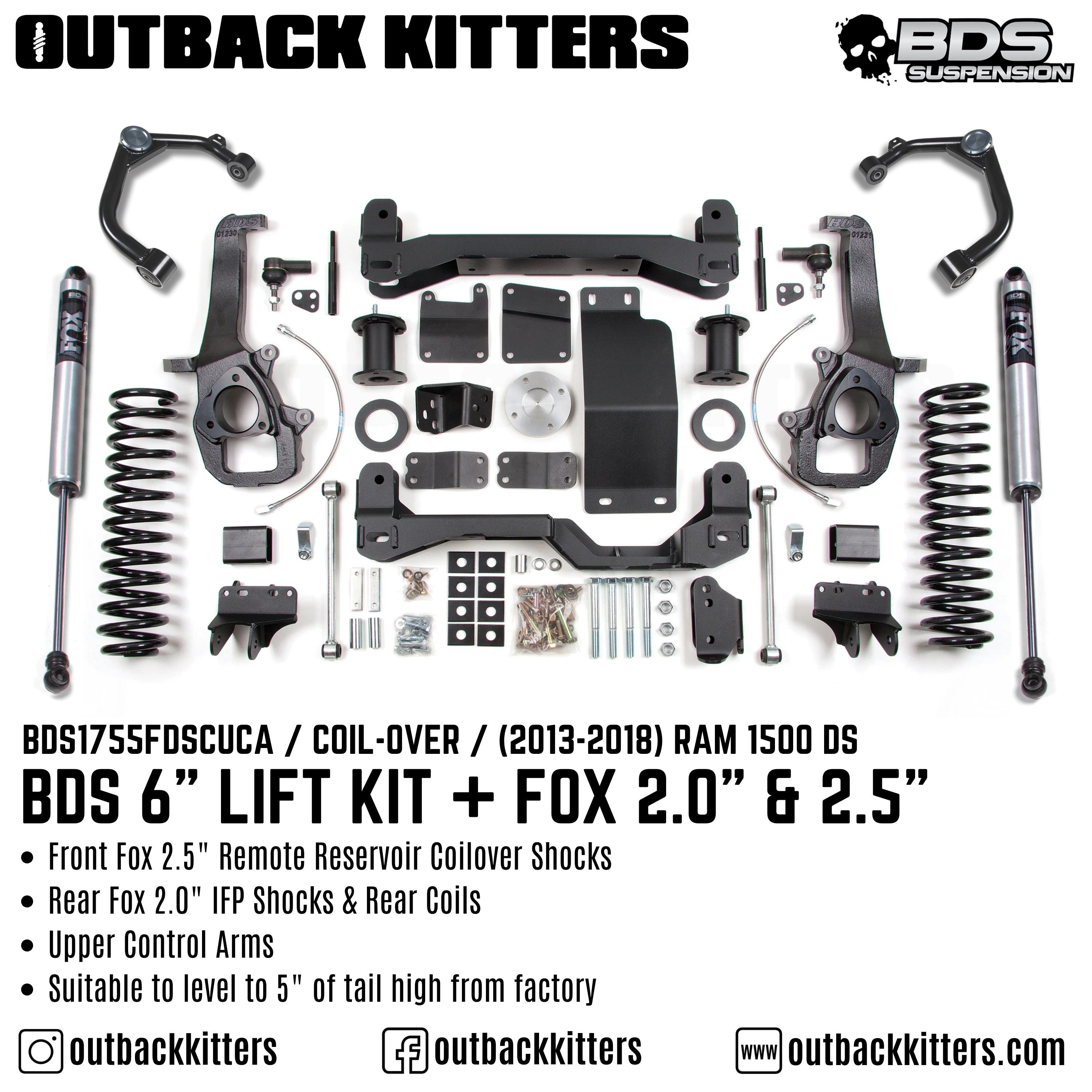

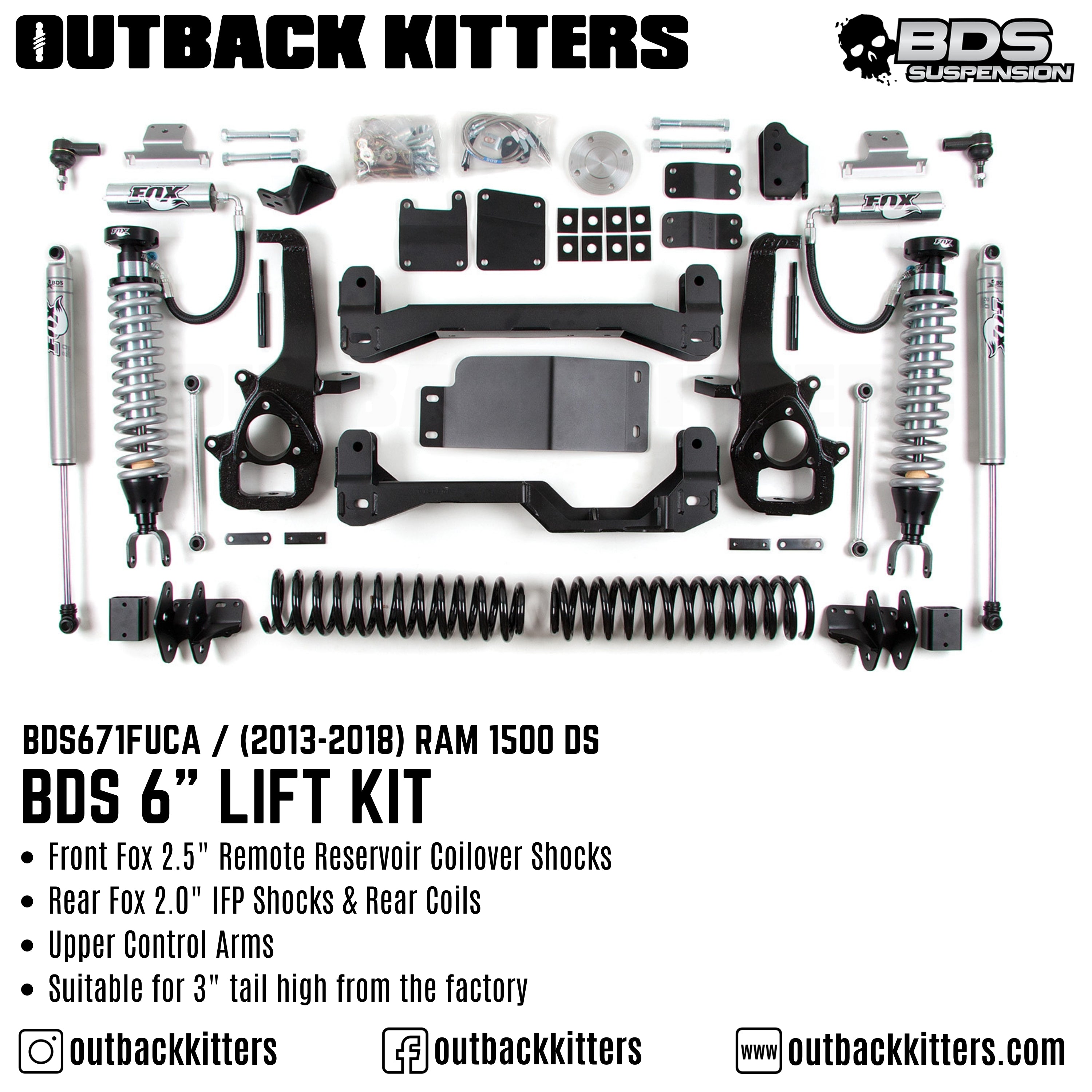

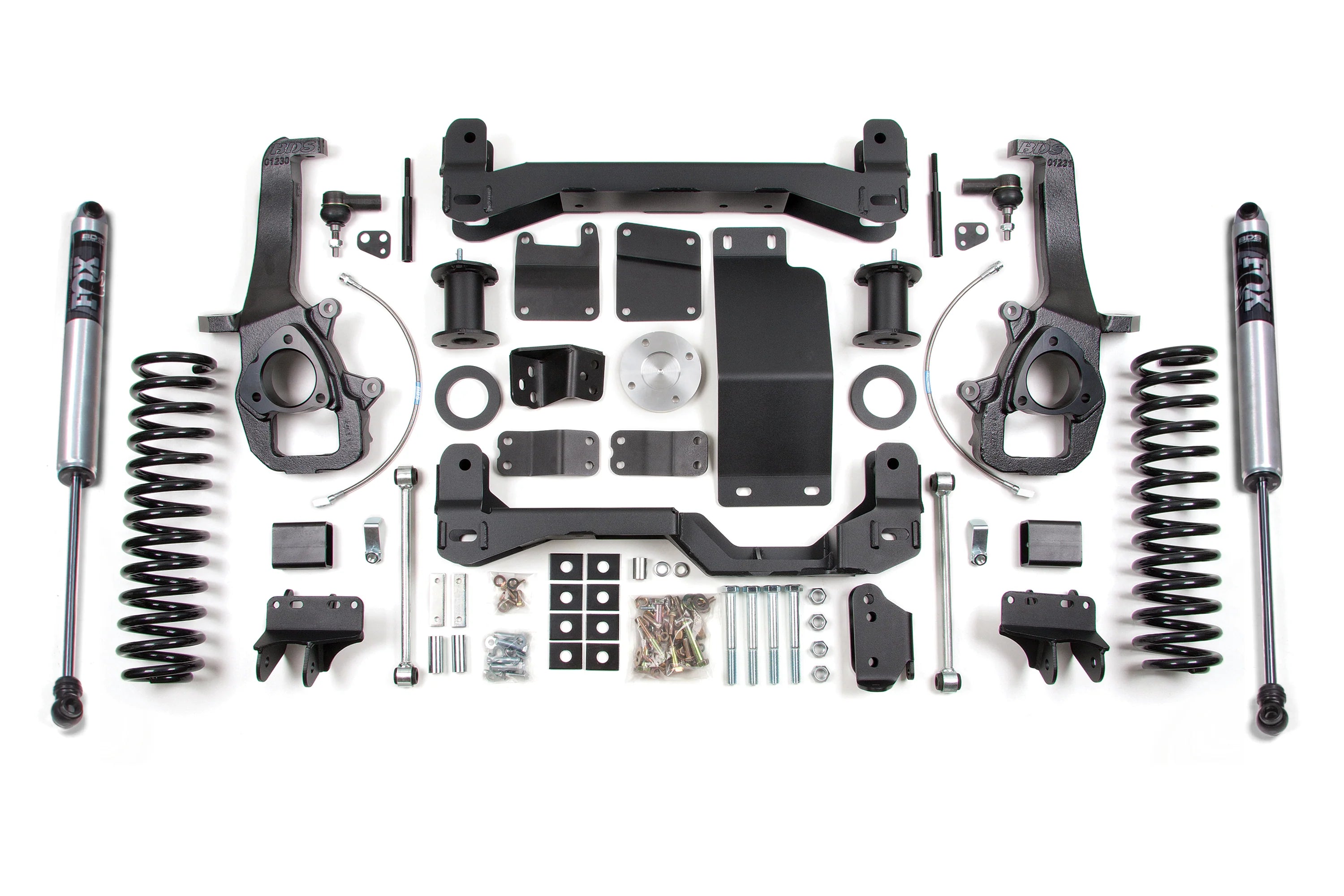

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

HIGH CLEARANCE CROSSMEMBERS

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

HEAVY DUTY STEERING KNUCKLES

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

REAR LIFT OPTIONS

These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.

• 3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory.
• 5 Inch Coil Springs - USe if your vehicle is level to 1" of tail high from the factory.
