BDS 6" Lift Kit for 2015-2020 Ford F150 with Fox 2.5 Performance Elite Shocks - Outback Kitters

BDS Suspension 6" Lift Kit for 2015-2020 Ford F150 with Fox Shocks

Vendor: BDS Suspension
Product Type: 6" Lift Kit
SKU: BDS1532F
Stock: Checking...
$9,750.00
$9,750.00
Please hurry! Only 0 left in stock
Shock Type: Front Fox 2.5" RR PES DSC / Rear Fox 2.0
BDS Suspension 6" Lift Kit for 2015-2020 Ford F150 with Fox Shocks - Outback Kitters

BDS Suspension 6" Lift Kit for 2015-2020 Ford F150 with Fox Shocks

$9,750.00

BDS Suspension 6" Lift Kit for 2015-2020 Ford F150 with Fox Shocks

$9,750.00
Shock Type: Front Fox 2.5" RR PES DSC / Rear Fox 2.0

Get that round oval on the front of your Ford F150 to stand proud with the BDS Suspension 6" Lift Kit!

This BDS Suspension 6" Lift Kit for 2015-2020 Ford F150 with Fox 2.5 Performance Elite Shocks is designed to deliver exceptional ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customise the performance of your shocks to match the terrain. With heavy-duty front coils and 6" of added ride height, you can take the road less travelled and stand tall with confidence.

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

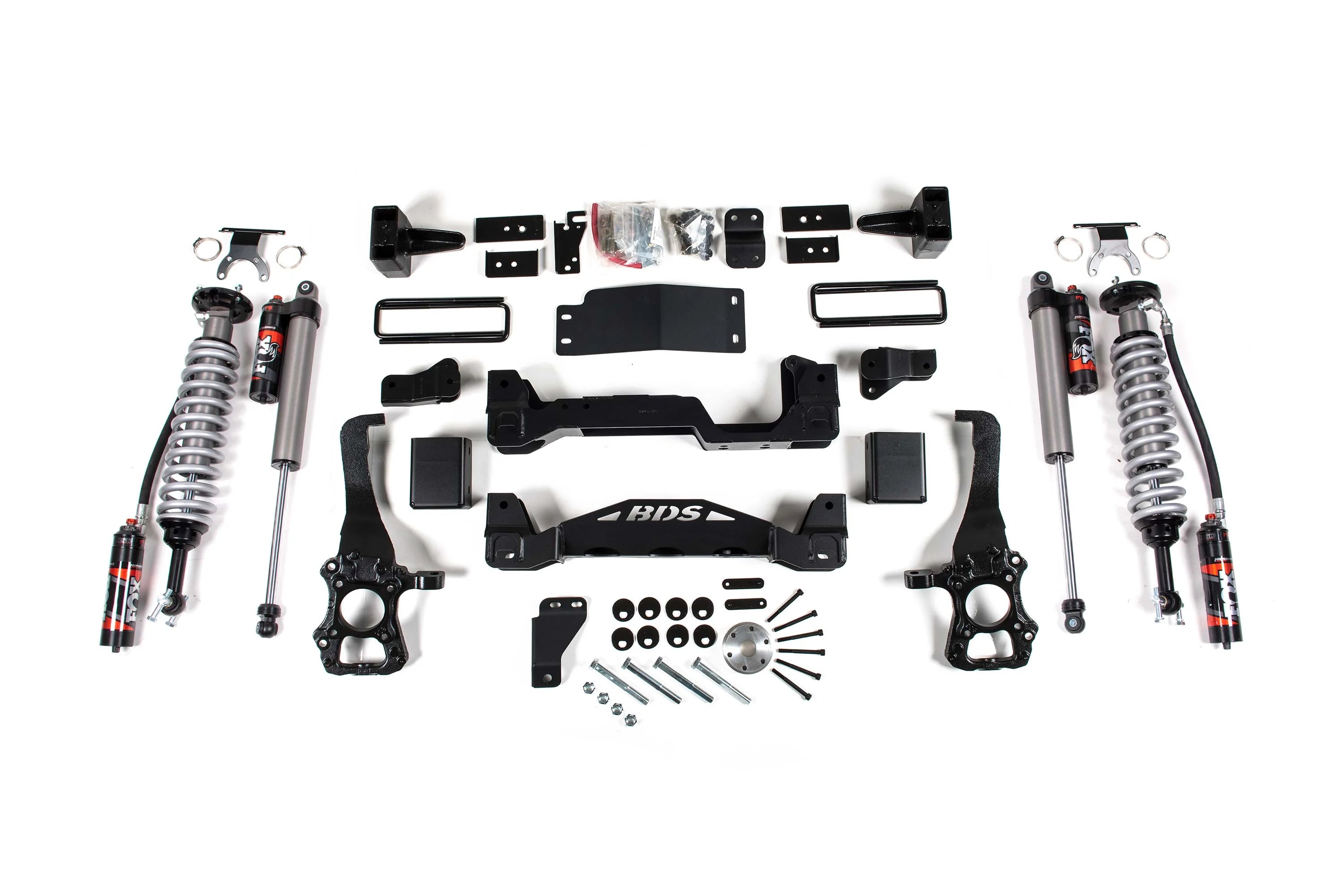

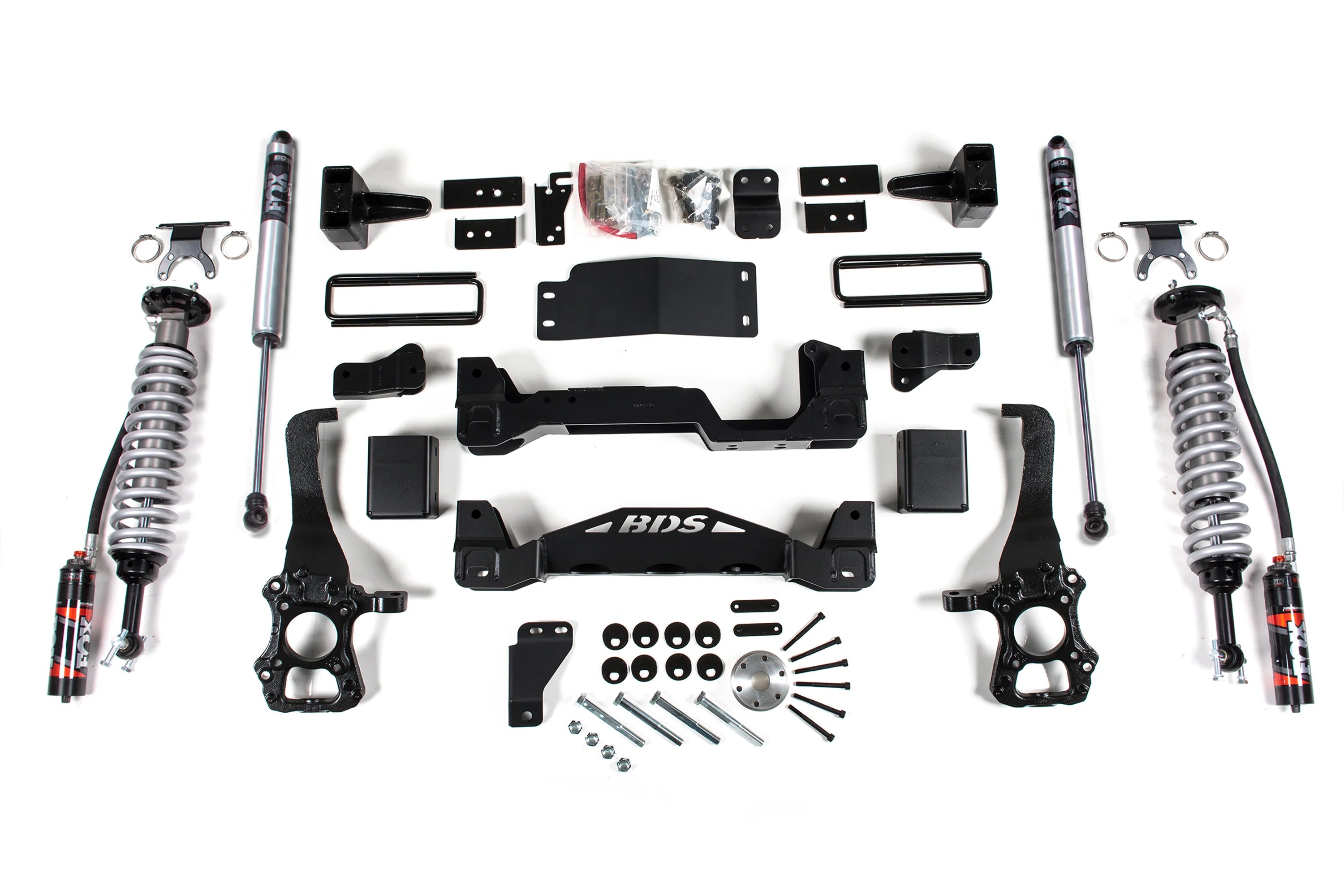

This mammoth kit includes:

  • Front & Rear Fox Shocks
  • Front Coils
  • Rear Spacer Block
  • Diff Drop Kit
  • Skid Plate
  • New Knuckles

Shock Options:

  • Front Fox 2.5" Remote Reservoir Performance Elite Shocks with DSC & Rear Fox 2.0 Shocks
  • Front & Rear Fox 2.5" Remote Reservoir Performance Elite Shocks with DSC

SPECIFICATIONS

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

RECOMMENDED TIRES AND WHEELS

*Trimming may be required*

  • 37x12.5 w/ 20x9 and 5" back spacing
  • 35x12.5 w/ 20x9 and 5" back spacing

IMPORTANT NOTES

  1. This is to suit Petrol Models. Please contact us if you need a kit to suit a Diesel (which are not common in Australia).
  2. Requires frame bracket modification.
  3. 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.
  4. 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
  5. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
  6. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  7. This system WILL WORK on Diesel Models.
  8. Will not fit HD models (7 lug).
  9. This kit is FMVSS No.126 Compliant

View complete Vehicle Fitment Information here.

INSTALLATION

  • Installation Guides :

Download Guide 1

  • Est. Install Time : 10 hrs
  • Difficulty Level : Difficult
  • Specialty Tools Needed : Cut-off Tool, Reciprocating Saw
