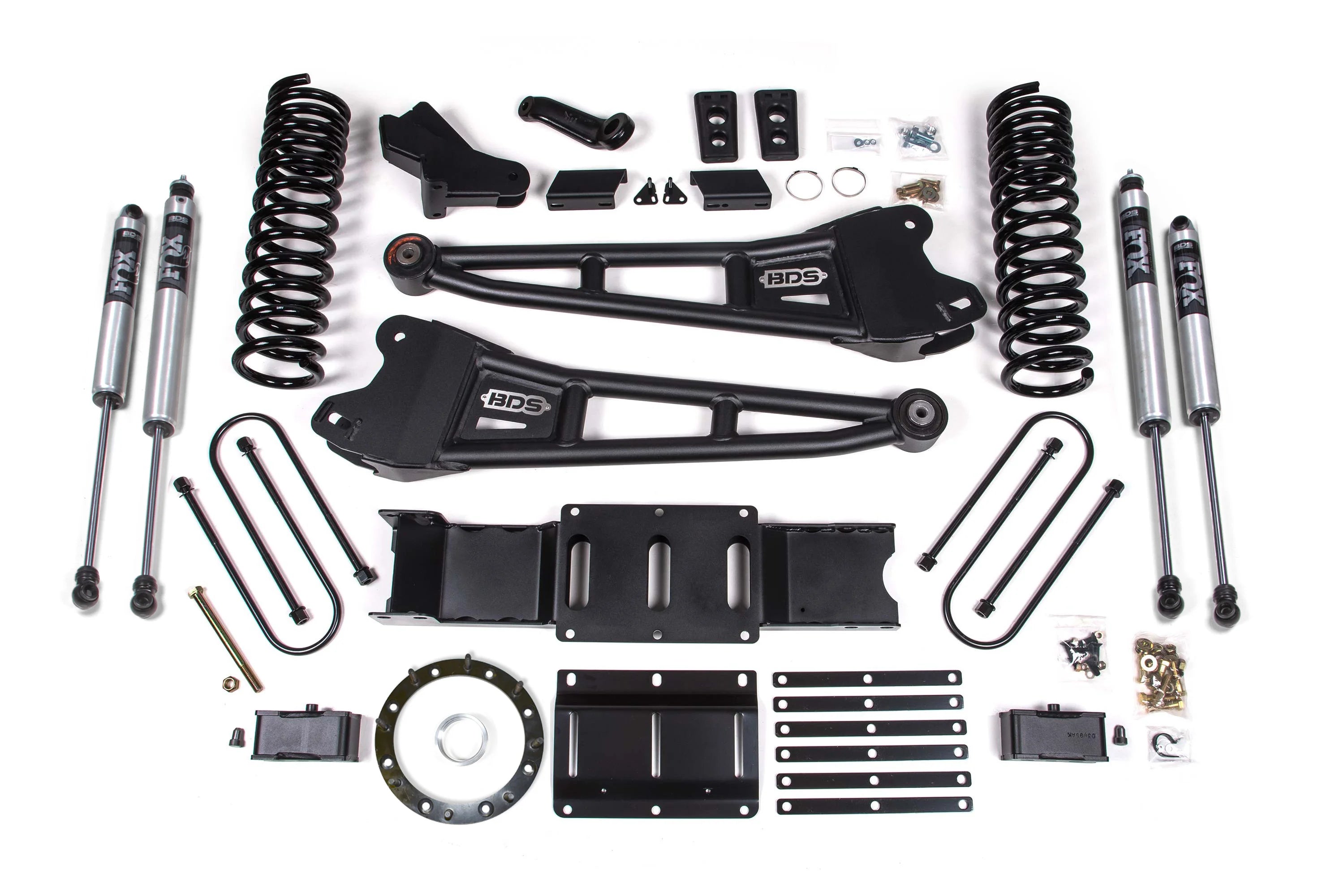

BDS Suspension 4" Lift Kit for 2019+ Ram 3500 with Fox Shocks

SPECIFICATIONS

• Front Lift Method : Coil Spring
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 4"
• Rear Lift Height : 3"

RECOMMENDED TIRES AND WHEELS

(Trimming may be required)

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
• 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
• 20" wheels are recommended to clear the extended knuckle and tie rod end.

IMPORTANT NOTES

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab’s with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
5. If your vehicle has been modified with new leaf springs, the u-bolts with the Rear Spacer Block Kits may not be long enough. This lift kit is sold under the provision that the rear suspension has not yet been altered. If you need longer u-bolts, you may need to take the measurements and source some alternatives.

INSTALLATION

Installation Guides:

• Download Guide 1
• Download Guide 2
• Download Guide 3
• Est. Install Time: 6-8 hrs
• Difficulty Level: Moderate
• Specialty Tools Needed: Pitman Arm Puller

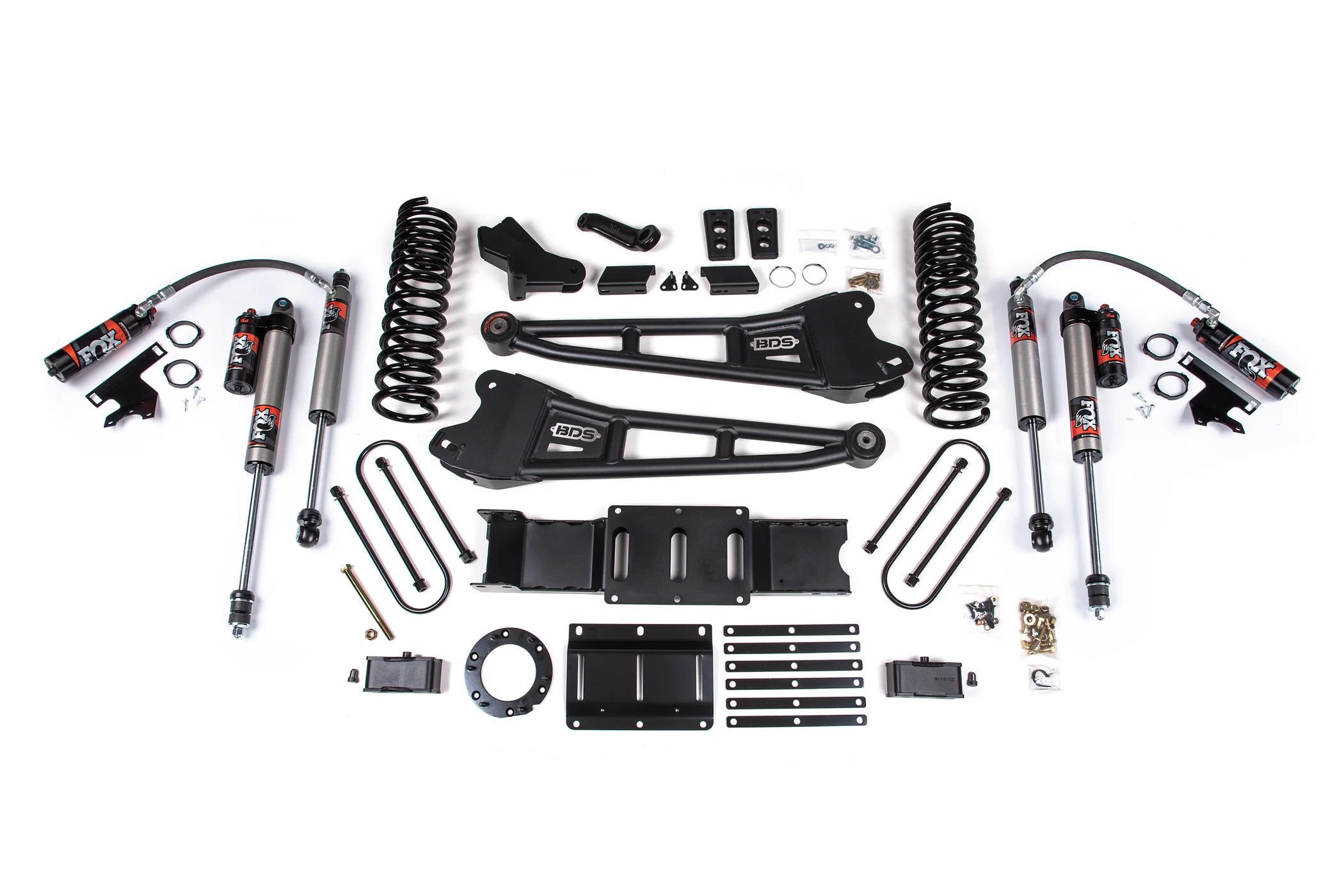

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
