BDS 3" Lift Kit Fox 2.5 Coil Overs with DSC Adjuster for Toyota Tundra (2007+) - Outback Kitters
BDS 3" Lift Kit Fox 2.5 Coil Overs with DSC Adjuster for Toyota Tundra (2007+) - Outback Kitters

BDS Suspension 3" Lift Kit for Toyota Tundra (2007-2021)

Vendor: BDS Suspension
Product Type: 3" Lift Kit
SKU: BDS824FDSC
Stock: Checking...
$8,450.00
$8,450.00
Please hurry! Only 0 left in stock
BDS 3" Lift Kit Fox 2.5 Coil Overs with DSC Adjuster for Toyota Tundra (2007+) - Outback Kitters

BDS Suspension 3" Lift Kit for Toyota Tundra (2007-2021)

$8,450.00

BDS Suspension 3" Lift Kit for Toyota Tundra (2007-2021)

$8,450.00

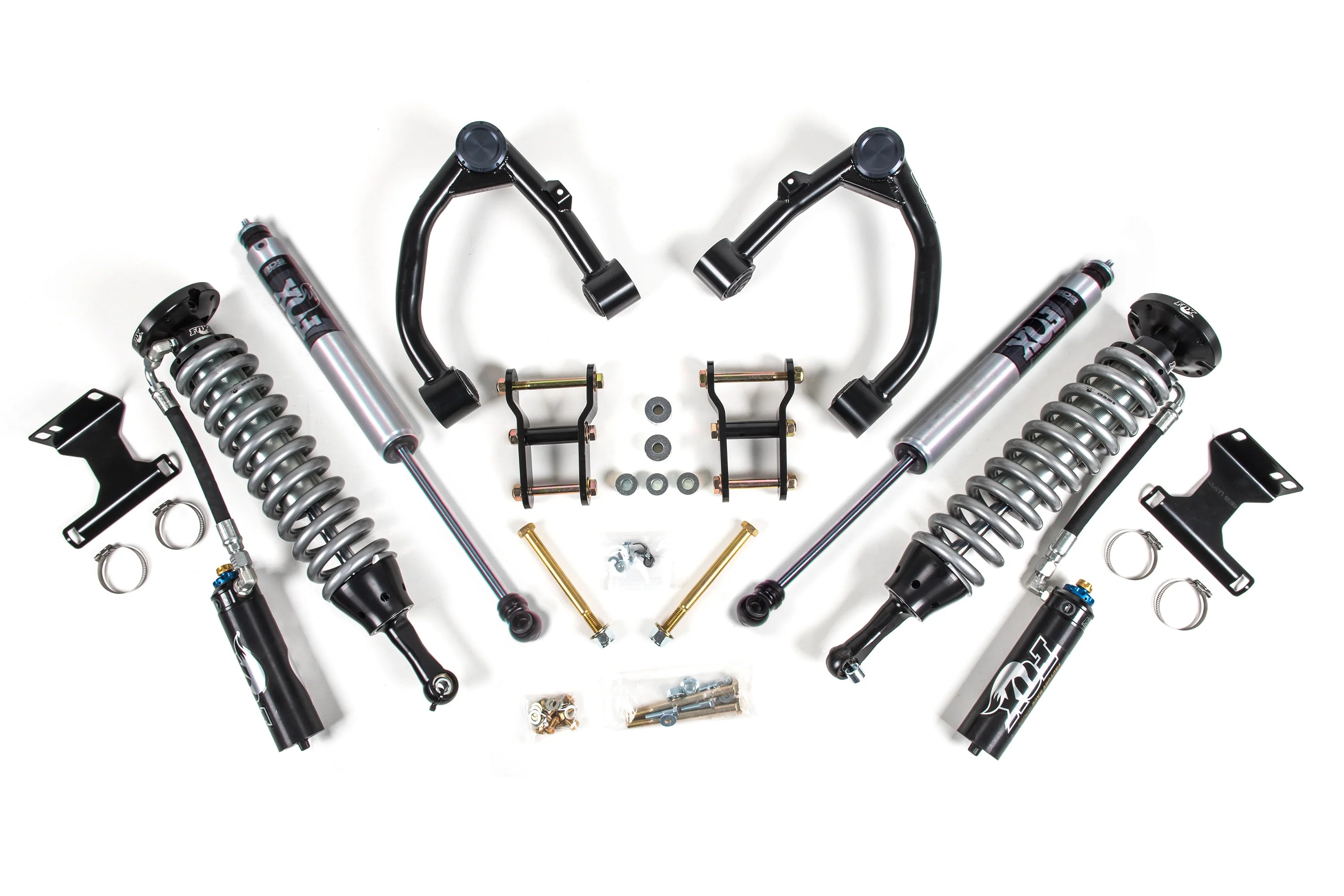

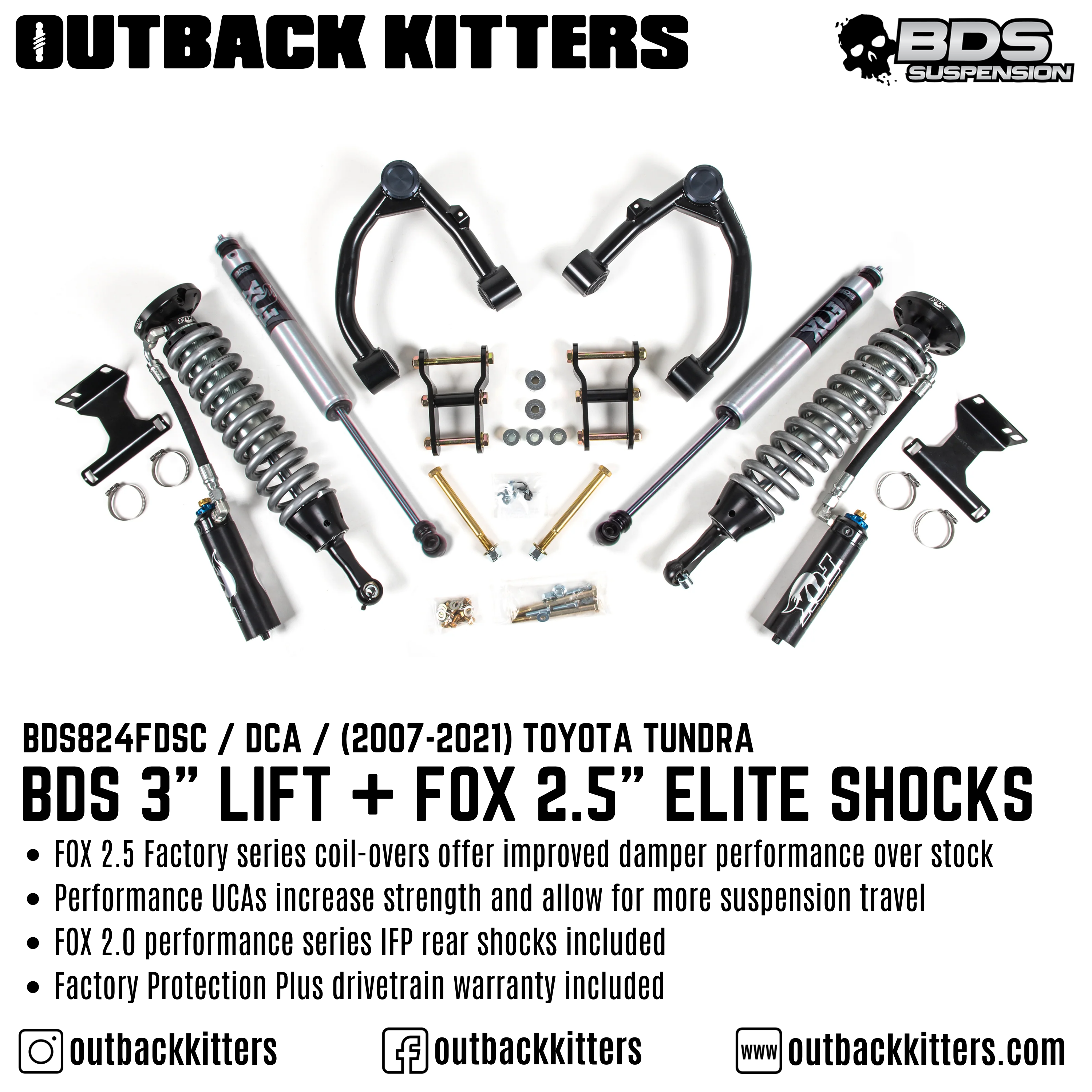

Take your 2007-2021 Toyota Tundra truck to the next level and improve the ride with this 3-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks, heavy duty tubular upper control arms for increased strength, and front differential spacers to keep CV angles at a minimum. In the rear this kit utilizes 1" lift shackles to level the truck and a set of FOX 2.0 Performance shocks for the smoothest ride.

DSC Adjustment

FOX 2.5 coil-overs are available with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

RECOMMENDED TIRES & WHEELS

  • 33 x 12.5 with 17 x 9 and 5 in. Backspace

FOX 2.5 Coil-Overs with DSC Adjuster

All the FOX Coil-Over Advantages Plus:

  • Dual Speed Compression (DSC) Adjuster
  • Increases both low and high-speed compression levels up to 25%
  • Easy twist knobs for Low-Speed and High-Speed Compression adjustment
  • Provides added control and comfort for on-road use
  • More aggressive damping for use off-road

SPECIFICATIONS

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Shackle
  • Shocks Included : Yes
  • Front Lift Height : 3"
  • Rear Lift Height : 1"

RECOMMENDED TIRES AND WHEELS

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 5 in. Backspace

IMPORTANT NOTES

  • This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
  • Can be installed on 2WD models, differential drop brackets are not used during installation.

INSTALLATION

Installation Guide: Download

Estimated time: 4-5 hours

Difficulty Level: Moderate
