BDS Suspension 3" Coilover Lift Kit for 2020+ Ford F250

Vendor: BDS Suspension
Product Type: 3" Lift Kit
SKU: BDS1549FPE
Stock: Checking...
$10,700.00
$10,700.00
Shock Option: Front Fox 2.5" & Rear Fox 2.0
BDS Suspension 3" Coilover Lift Kit for 2020+ Ford F250 - Outback Kitters

BDS Suspension 3" Coilover Lift Kit for 2020+ Ford F250

$10,700.00

BDS Suspension 3" Coilover Lift Kit for 2020+ Ford F250

$10,700.00
Shock Option: Front Fox 2.5" & Rear Fox 2.0

3" Coilover Fox Shocks = your dream F250!

Outback Kitters has you covered with this BDS Suspension 3" Front Coilover Lift Kit.

This BDS Suspension 3" Lift Kit for 2020+ Ford F250 runs both Fox 2.5 Performance Elite Shocks and a Fox 2.0 shock in the front, coupled with rear Fox 2.0 shocks to give you great ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customize the performance of your shocks to match the terrain.

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

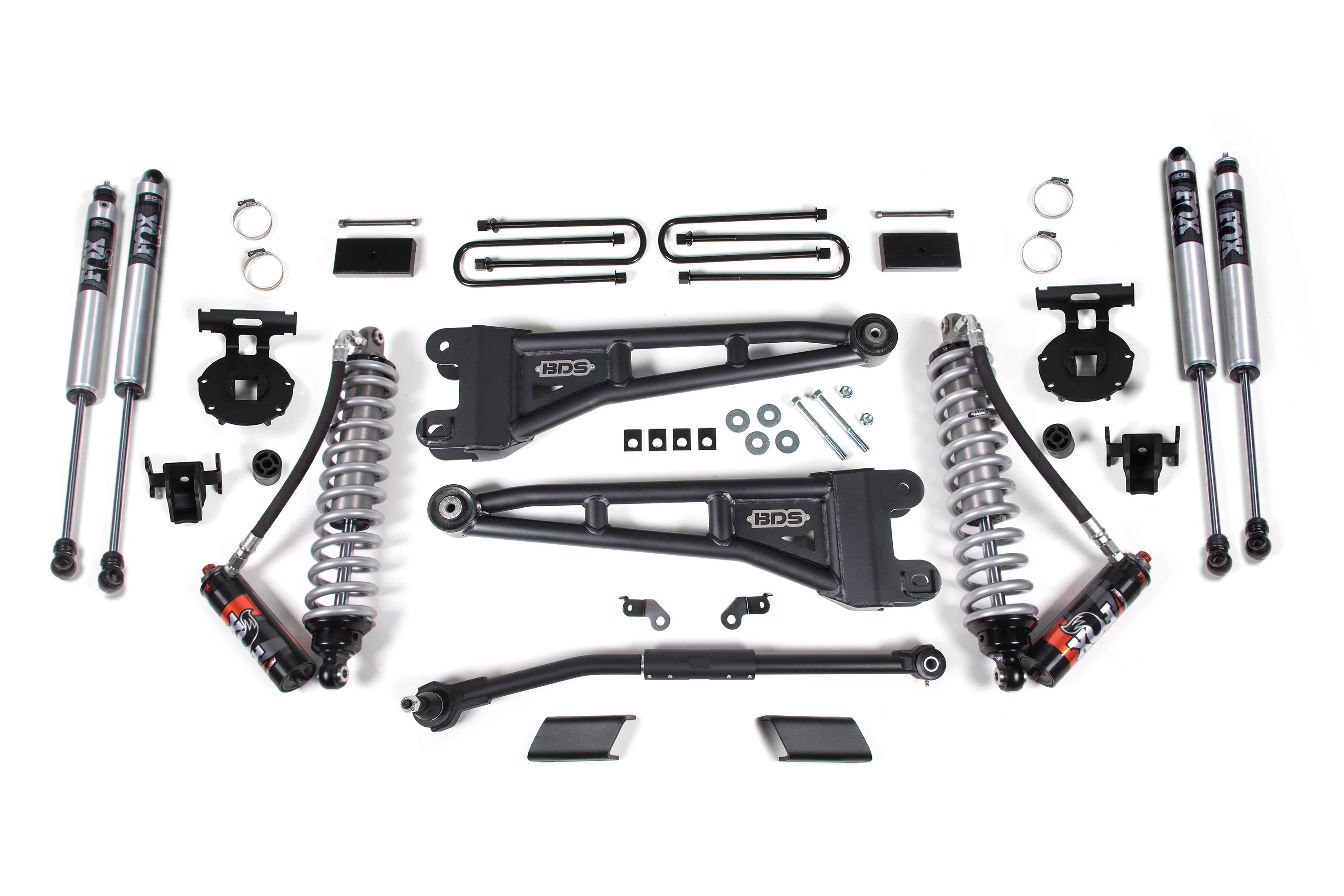

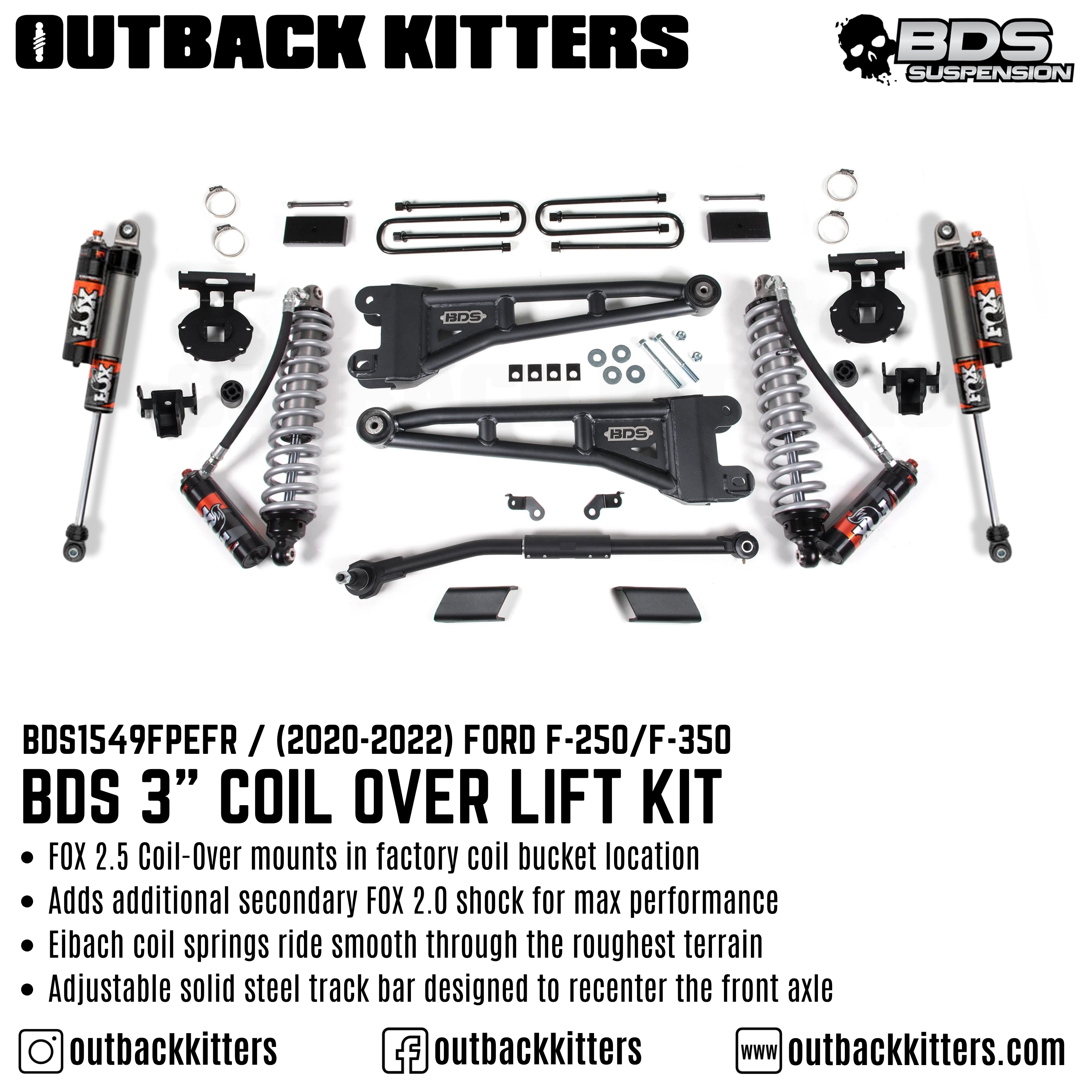

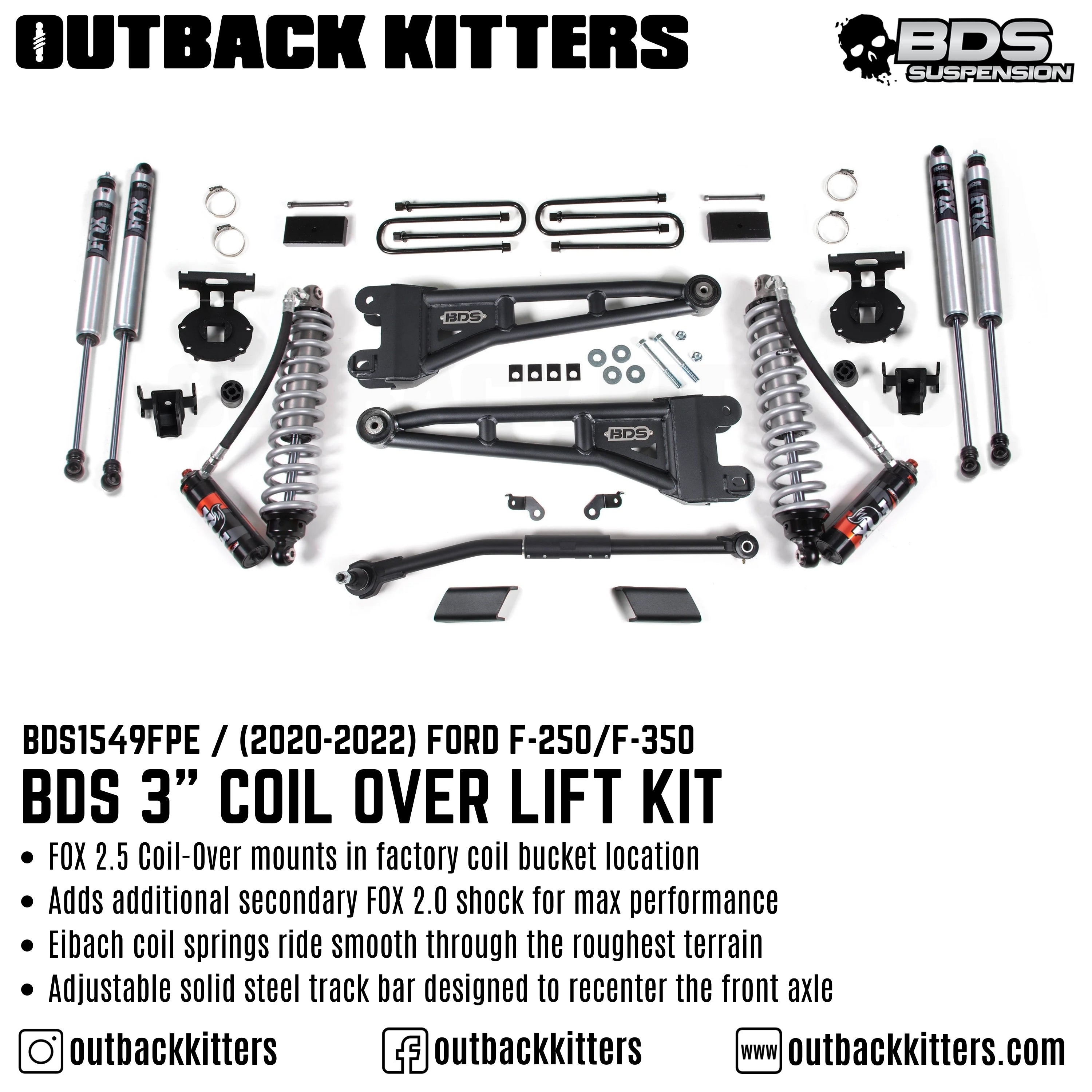

This mammoth kit includes:

  • Front Fox 2.5" Remote Reservoir DSC Coilover Shocks
  • Front & Rear Fox 2.0 Shocks
  • Rear 1" Spacer Block
  • Radius Arms

Upgrade to 2.5" in the rear:-

We also include the complete Fox 2.5" Performance Elite experience by swapping out the Fox 2.0 shocks in the rear with Fox 2.5" Performance Elite Series.



Outback Kitters is a BDS Suspension distributor located in Brisbane, QLD. We specialise in supporting installation workshops around the country and are proud to bring such a high quality product into Australia.

SPECIFICATIONS

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 3"
  • Rear Lift Height : 1"

RECOMMENDED TYRES & WHEELS

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

IMPORTANT NOTES

  • Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
  • Larger tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs.
  • Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
  • Trucks without top-mounted overload springs require (x4) UBT4031 available to purchase separately.

View complete Vehicle Fitment Information here.

INSTALLATION

  • Installation Guide: Download
  • Estimated Time: 5 hours
  • Difficulty Level: Moderate

SPECIALTY TOOLS NEEDED

  • 30mm Socket
  • Die Grinder
  • Drill / Bit Set
  • Pitman Arm Puller
  • Reciprocating Saw
