(Ram 1500 • Silverado/Sierra 1500 • Ford F-150 — BDS Suspension & Zone Offroad)

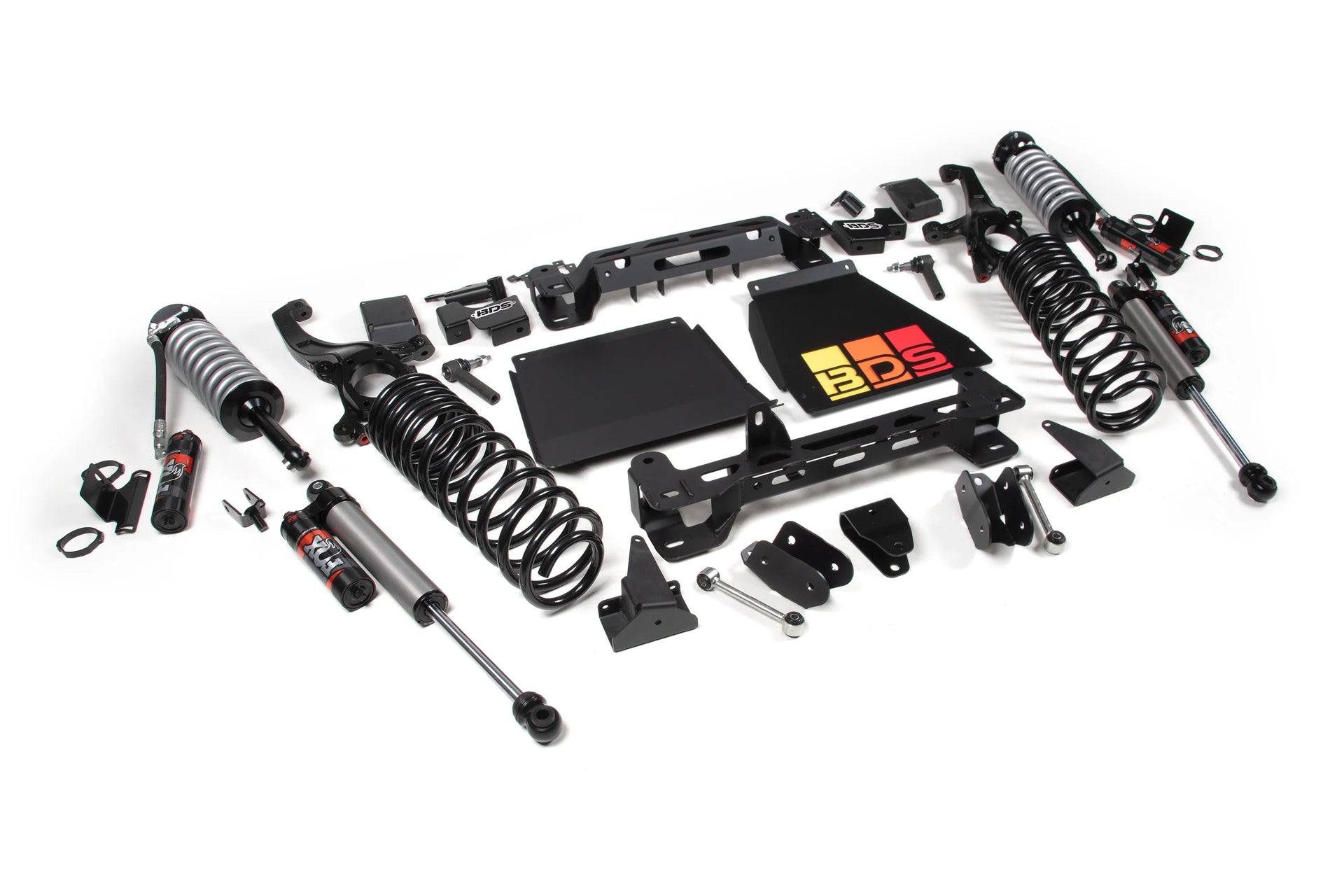

If you’ve ever looked under a properly lifted half-ton truck and wondered how it still drives straight, smooth, and stable — the answer is the steering knuckle. Many people assume a 4” or 6” lift is just taller springs or spacers. On modern independent front suspension trucks, that approach simply doesn’t work. Suspension geometry is far too sensitive. That’s why quality lift kits from BDS Suspension and Zone Offroad include replacement steering knuckles — and why they’re arguably the most important component in the entire system.

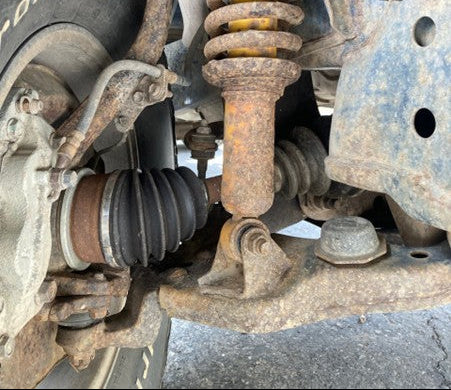

The factory steering knuckle is the component that holds the wheel hub and bearing, the brake assembly, the upper and lower ball joints, and the tie rod for steering. On a standard truck, the wheel hub sits roughly centered between the upper and lower control arms. A suspension lift can’t simply push the body upward, because doing so would force the control arms into severe downward angles. This leads to premature ball joint failure, CV axle binding, and poor steering characteristics such as bump steer.
Instead of lifting only the chassis, properly engineered lift kits reposition the wheel itself. The aftermarket steering knuckle is designed taller, relocating the wheel hub higher in relation to the control arms. This allows the body to gain height while keeping control arm angles close to factory specifications. That’s why a well-designed lift still drives straight and stable on the highway.
When running a 4” or 6” lift that uses replacement steering knuckles, wheel selection becomes more important than most people expect.

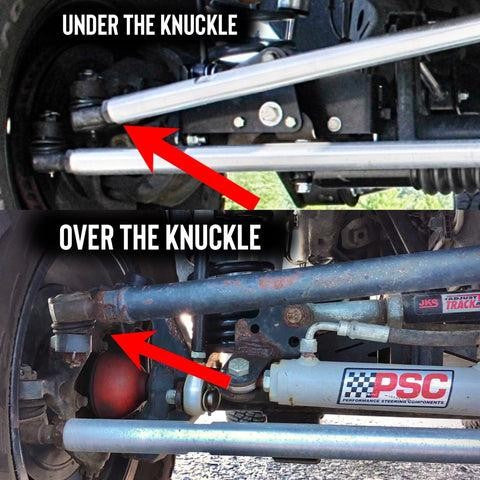

ecause the aftermarket knuckle relocates the steering arm, the tie rod end no longer sits in the same position as it does on a factory suspension. It now sits higher, slightly further outward, and closer to the inner barrel of the wheel. This change dramatically affects wheel clearance, especially at full steering lock.
As a result, many factory wheels — and even some aftermarket wheels — will contact the tie rod end. This is not a flaw in the lift kit, but a byproduct of proper suspension geometry correction. Best option • 20” wheels, which typically provide adequate inner barrel clearance Can work • 18” wheels with negative offset Sometimes works • 18” wheels with 0 offset
In some cases, 18” wheels with zero offset may require light trimming of the outer edge of the tie rod end to achieve full-lock clearance. Choosing the correct wheel setup from the start prevents fitment issues, eliminates unnecessary modifications, and ensures the lift performs as intended.

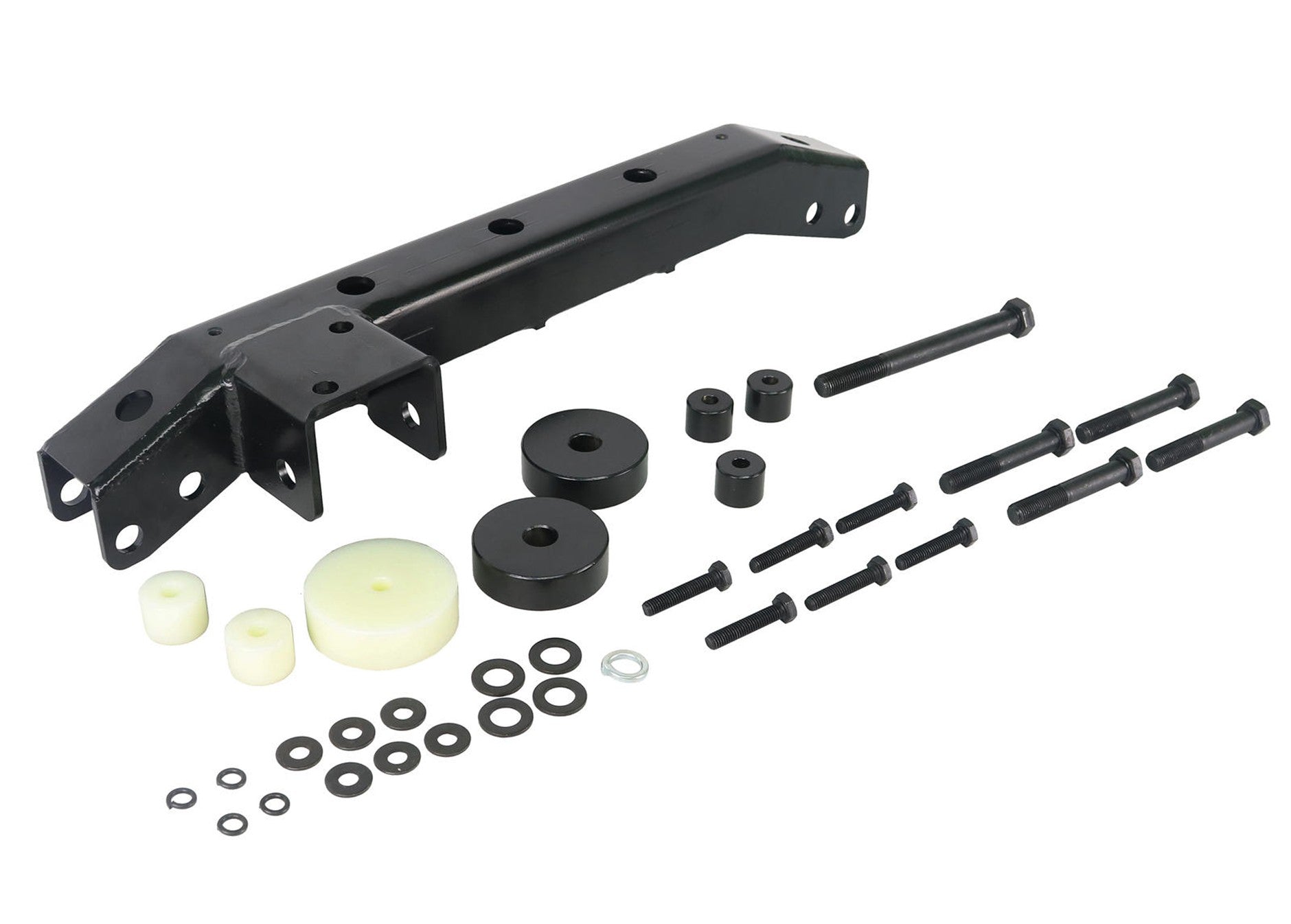

The Knuckle Is the Heart of a Proper IFS Lift The steering knuckle is what makes a lifted truck drive correctly. The diff drop protects the CV axles. And the tie rod relocation is why wheel selection becomes critical. When planning a 4” or 6” lift, choose your wheels first — not last.
