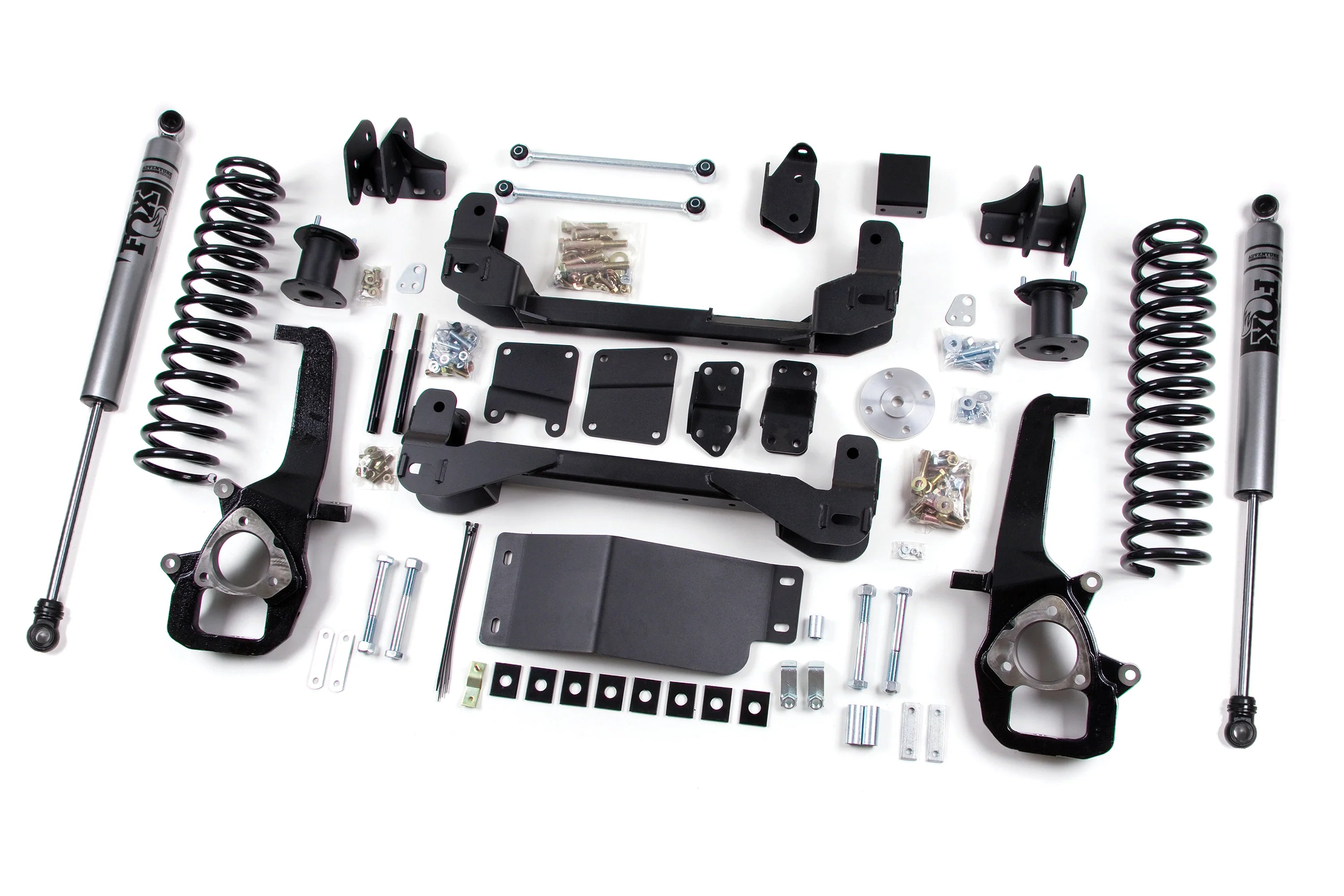

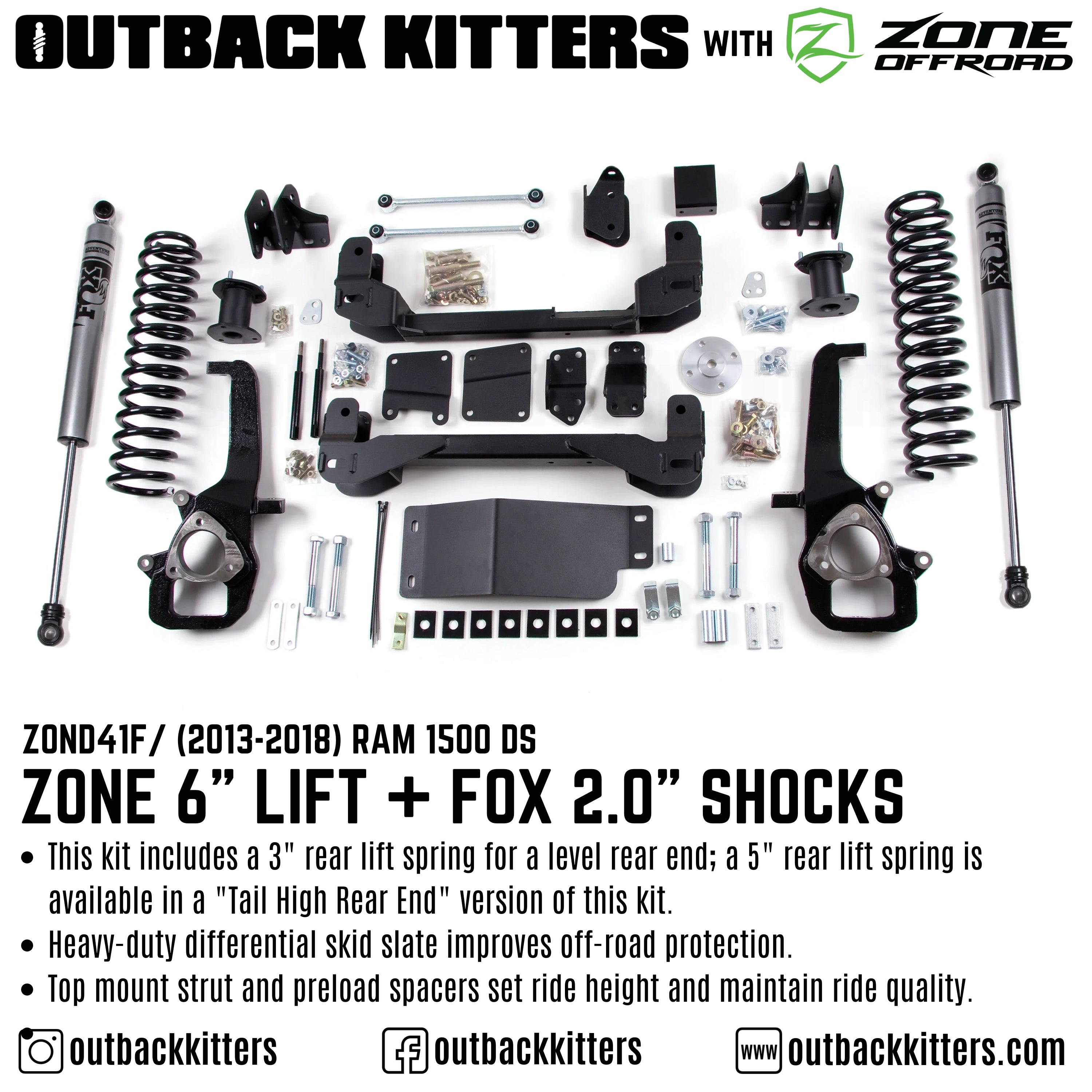

Zone Offroad 6" Lift Kit for 2013-2018 RAM 1500

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 3-5"
• Shocks Included : Yes

(Trimming may be required)

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

1. Does NOT work with all wheel drive (AWD) models.
2. This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
3. Will NOT fit adjustable air suspension (air-ride) equipped models. Fitment: Does not fit eco-diesel models. Front drive shaft WILL fail prematurely.
4. These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
5. Stock 17" wheels CAN NOT be re-installed.
6. Stock 20" can be re-installed with factory tire.

Installation Guides : Download Guide 1
Est. Install Time : 9 hrs
Difficulty Level : Moderate
