Outback Kitters 21-24 Ford F150 Chuck Bar

Outback Kitters 21-24 Ford F150 Chuck Bar

SKU:OK911053-K

Regular price $4,500.00 AUD
Regular price Sale price $4,500.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour
Quantity
View full details
  • Material: 6mm Alloy Bar
  • Winch Cradle: Steel Construction
  • Winch Capacity: Up to 15,000lb
  • Recovery Points: 7,000kg Rated
  • Lighting: Integrated Hoop Lightbar, Three Spotlight Mounts & Angled Side Light Mounts
  • Protection: Underbody Protection & Protection Hoop
  • Cooling: Maximum Airflow Design
    Compatibility: Front Parking Sensors Compatible
    Compliance: ADR Standards
    Finish Options: Texture Black Powder Coat or Raw
SPECIFICATIONS
  • Material: 6mm Alloy Bar
  • Winch Cradle: Steel Construction
  • Winch Capacity: Up to 15,000lb
  • Recovery Points: 7,000kg Rated
  • Lighting: Integrated Hoop Lightbar, Three Spotlight Mounts & Angled Side Light Mounts
  • Protection: Underbody Protection & Protection Hoop
  • Cooling: Maximum Airflow Design
    Compatibility: Front Parking Sensors Compatible
    Compliance: ADR Standards
    Finish Options: Texture Black Powder Coat or Raw

PRODUCTION WITHOUT THE CATTLE GRATE

Chuck Bar

Not everyone wants a massive full-guard bullbar hanging off the front of their truck.

But that doesn't mean you want to leave the expensive bits completely unprotected either.

That's where the Outback Kitters Chuck Bar comes in.

Designed as the next evolution of our Pre Runner Bar, Chuck combines serious front-end protection with a cleaner, lower-profile design that actually works with the lines of the truck — rather than trying to hide them.

Protection, lighting, recovery and factory technology were all considered from the beginning, creating a bar that looks deliberately designed instead of like a parts catalogue exploded across your front end.

Tough enough for where you're going.

Clean enough that you'll still want to look back at it when you park.

Lights Included. Wiring Included. Headaches Not Included.

Supplying three integrated light bars is great.

Supplying them and then leaving you with a handful of wires and a "good luck, mate" isn't really our style.

Every Chuck Bar comes standard and pre-fitted with an integrated centre 26" or 30" LED light bar plus two 12" LED light bars, one positioned on either side of the bullbar.

All three are incorporated cleanly into the design, giving the front of each vehicle additional lighting without covering the bar in brackets and random accessories.

But it doesn't stop here every Chuck bar comes standard with a 3-way Deutsch plug connection for the integrated light bars, providing one clean connection from the bullbar into the supplied engine bay wiring harness.

The engine bay harness includes the fuse, relay, high-beam output and trigger switch connection, giving you the important bits required to properly integrate the Chuck lighting into the vehicle.

We also include the vehicle-specific high-beam patch harness as standard, because chopping into factory wiring on a modern vehicle isn't our idea of a premium installation.

Plug it in. Wire it properly. Get on with it.

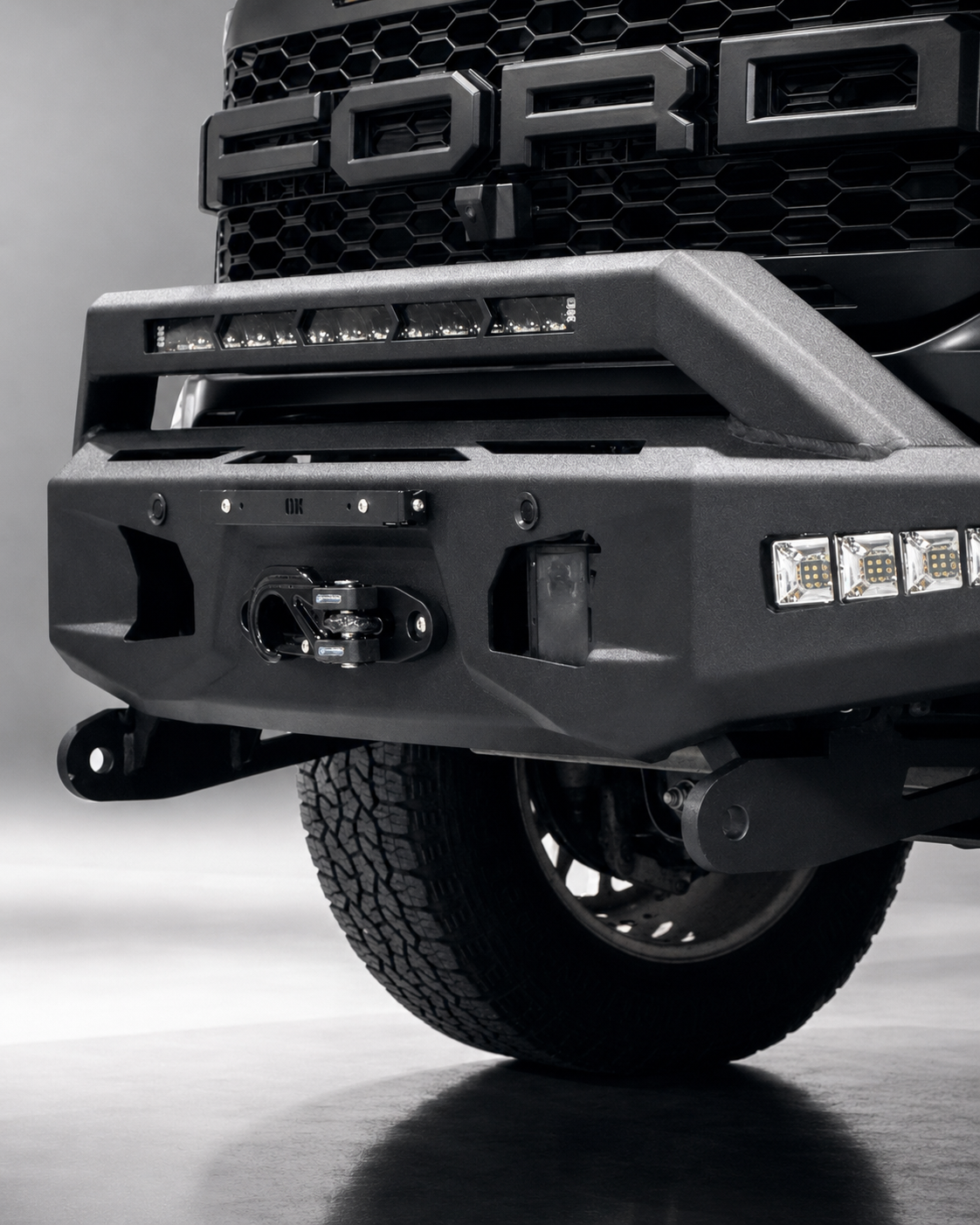

7,000kg Rated Recovery Points

Recovery points should do more than look capable. The Chuck Series incorporates 7,000kg-rated recovery points for the moments when the truck is buried and the equipment has to earn your trust.

Behind them sits a rigid steel winch cradle designed to hold a compatible winch securely and resist flex under load. Rated recovery. Proven steel. No decorative hardware.

Image direction: Close-up showing a recovery point and the steel winch cradle.

Proper rated recovery points.

For when "give it another go" has officially stopped working.

Maximum Airflow

The open-centre design directs maximum airflow into the grille, helping keep big, heavy, high-powered American trucks running cool when working hard.

They're not there just to make the bar look tough.

We figured we'd let it breathe.


Aluminium Bar with Steel Winch Cradle

A tough 6mm aluminium outer bar keeps weight down, while the steel winch cradle provides serious strength where it matters most—at the winch and recovery points.

Fit a 15,000lb Winch in most Chuck Series Bars and get yourself out of trouble, wherever you are!

Protection, Lighting And Recovery. Solved Together.

Most pre runner bars solve one problem and create three. The lighting looks added later. The wiring stays exposed. The winch mount flexes when recovery gets serious.

The Chuck Series was engineered as one complete front end. Protection, lighting and recovery were considered together from the first sketch. The result looks finished because nothing was treated as an afterthought.

Aggressive Angles

We want to make sure your truck looks tougher than it is. That's why we incorporate aggressive approach angles, so you can slot into any trail without getting caught up. But.. we incroproated the perfect balance between aggression and protection, so you don't have wildlife getting stuck underneath your vehicle ripping out all that juicy suspension!

Safety Compatible and Easy to Install

Supplied with parking-sensor housings, sensor extension harnesses and light-bar wiring harnesses, with camera and ADAS relocation brackets also available for compatible vehicles.

No hunting around for additional bits halfway through the install or gluing parts together.

They're in the box.

Where they should be.


WHATS INCLUDED

Every Chuck Series Pre Runner Bar comes with:

  • Aluminium Chuck Series main bullbar
  • Steel main bullbar mounting system
  • Steel winch cradle
  • 7,000kg rated recovery points
  • Underbody protection
  • Integrated centre 30" LED light bar
  • 2 x integrated side 12" LED light bars
  • 3-way Deutsch plug connection for integrated light bars
  • Engine bay lighting harness with Integrated fuse and relay
  • High-beam output and trigger switch connection
  • Vehicle-specific high-beam patch harness
  • OE Tech Pack compatible provisions
  • Sensor surrounds
  • Sensor harness extension
  • Required bullbar installation hardware

Protection. Lighting. Recovery. Factory technology.

Solved together.

Not added later because somebody forgot about it.

WHY CHOOSE OUTBACK KITTERS?

Because we actually use this stuff.

Outback Kitters products are designed around the vehicle from the beginning — not pulled from a catalogue, given a new bracket and slapped with our logo.

We think about the things that actually matter. Fitment. Airflow. Weight. Recovery. Lighting. Wiring. Factory technology. Installation. And all those annoying little details you normally discover halfway through fitting something.

Our products are engineered for Australian conditions, built to suit ADR requirements and Australian Standards, and designed to work just as bloody well as they look.

We don't add features just so there's another dot point on the box.

If it's there, it should have a reason.

Designed properly. Tested properly. Built to actually use.

FAQ's

Does the Chuck Series support a winch?

Yes. The Chuck Series is built around a heavy-duty steel winch cradle designed to securely support compatible winches while maintaining structural strength during recovery.

Are the recovery points actually rated?

Yes. The Chuck Series features integrated 7,000kg rated recovery points engineered specifically for vehicle recovery, not simply as tie-down points.

What lighting is integrated into the bar?

The hoop incorporates a 30" lightbar as part of its original design. Its position and mounting have been planned into the bar, creating a clean installation without making the lighting look like an afterthought.

Can I add spotlights later?

Absolutely. The three spotlight mounting locations are built into the bar from the beginning, allowing you to install auxiliary lighting whenever it suits your build.

Will fitting the Chuck Series affect the truck's styling?

The opposite. The Chuck Series was designed to follow the factory lines of the vehicle, creating a refined appearance that looks intentional rather than added on.

Does it provide underbody protection?

Yes. Integrated underbody protection helps shield vulnerable components beneath the front of the vehicle while maintaining airflow and practical service access.

Can I install the bar myself?

Installation is possible for experienced installers with appropriate equipment, however professional installation is recommended to ensure correct fitment, recovery hardware alignment and accessory integration.

Is the Chuck Series vehicle specific?

Yes. Each Chuck Series Pre Runner Bar is engineered specifically for the vehicle it is designed to fit, ensuring correct mounting, clearances and integration with the front end.

What makes the Chuck Series different from many other pre runner bars?

Rather than treating protection, lighting and recovery as separate accessories, the Chuck Series was designed as one integrated system. Every major feature—from the hoop lightbar to the winch cradle and recovery points—was considered together to create a front end that looks cleaner, works harder and remains practical long after installation.
