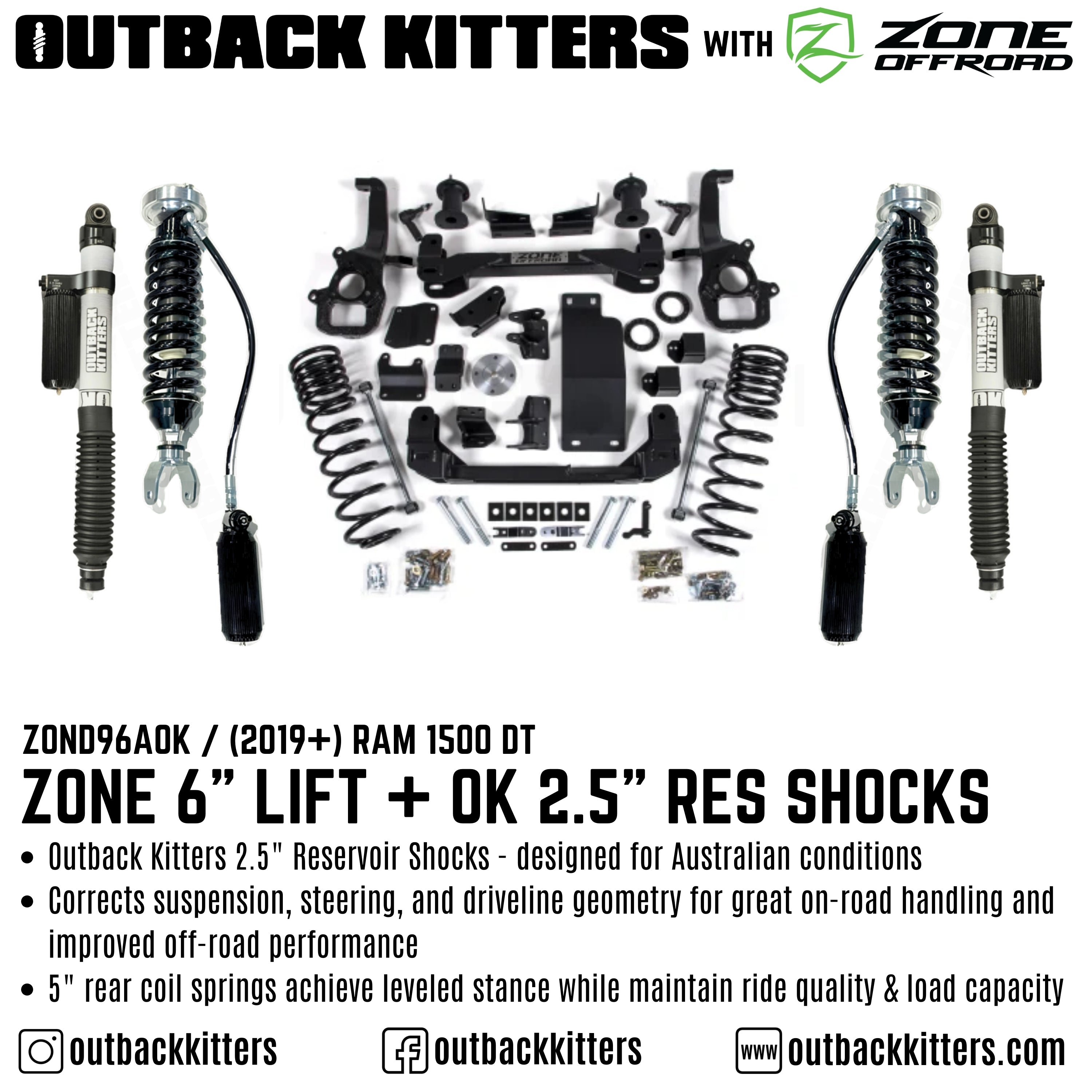

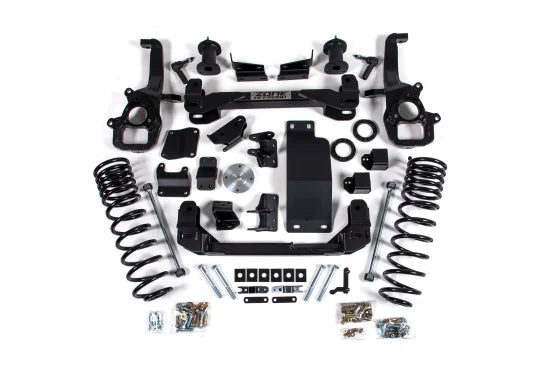

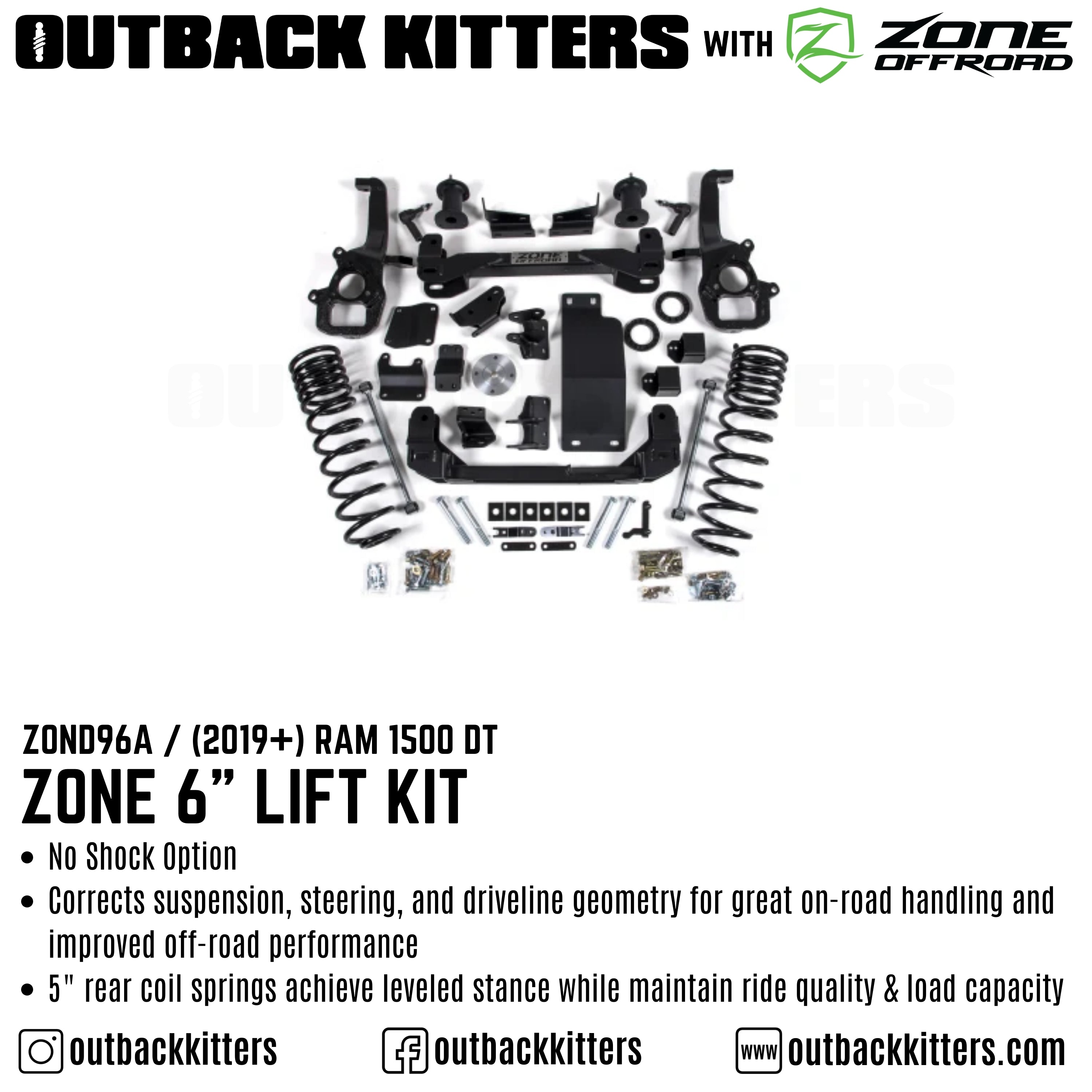

OK with Zone Offroad 6" Lift Kit for 2019+ Ram 1500 DT

SPECIFICATIONS

Max Tire Size: 37 x 12.5

Front Lift Height: 6"

Rear Lift Height: 5"

• 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
• 20" wheels are recommended to clear the extended knuckle and tie rod end.

IMPORTANT NOTES

• Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option.
• Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section there will be a line item that reads “Off-Road Group” if your truck is equipped.Reference build code DSK-P
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ. Stock 17" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• This kit will NOT work on Diesel models.
• Fitment: Does NOT work for models with factory rear airbag suspension

INSTALLATION

Installation Guide: Download
