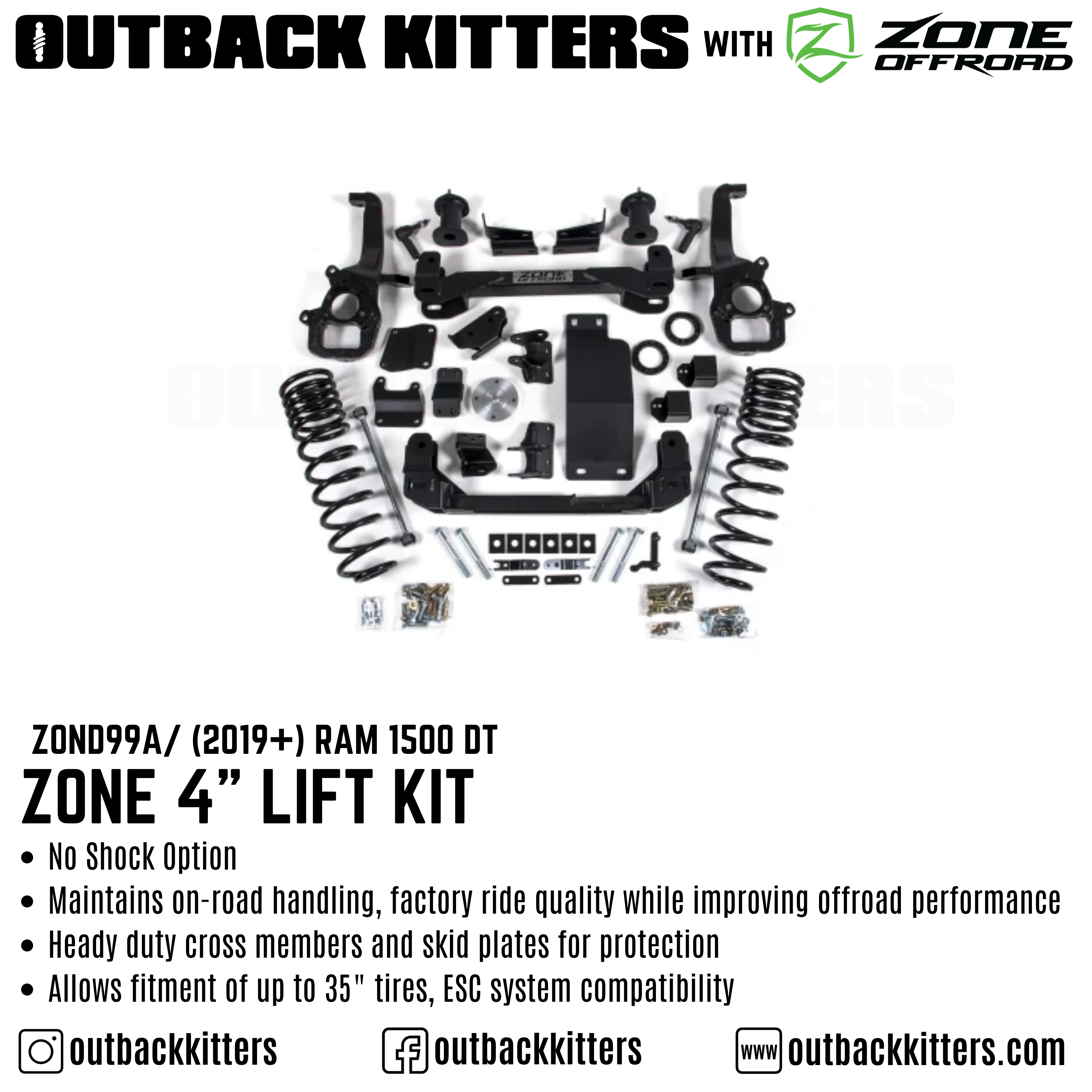

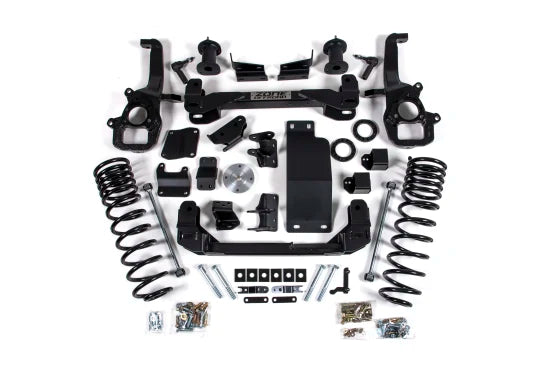

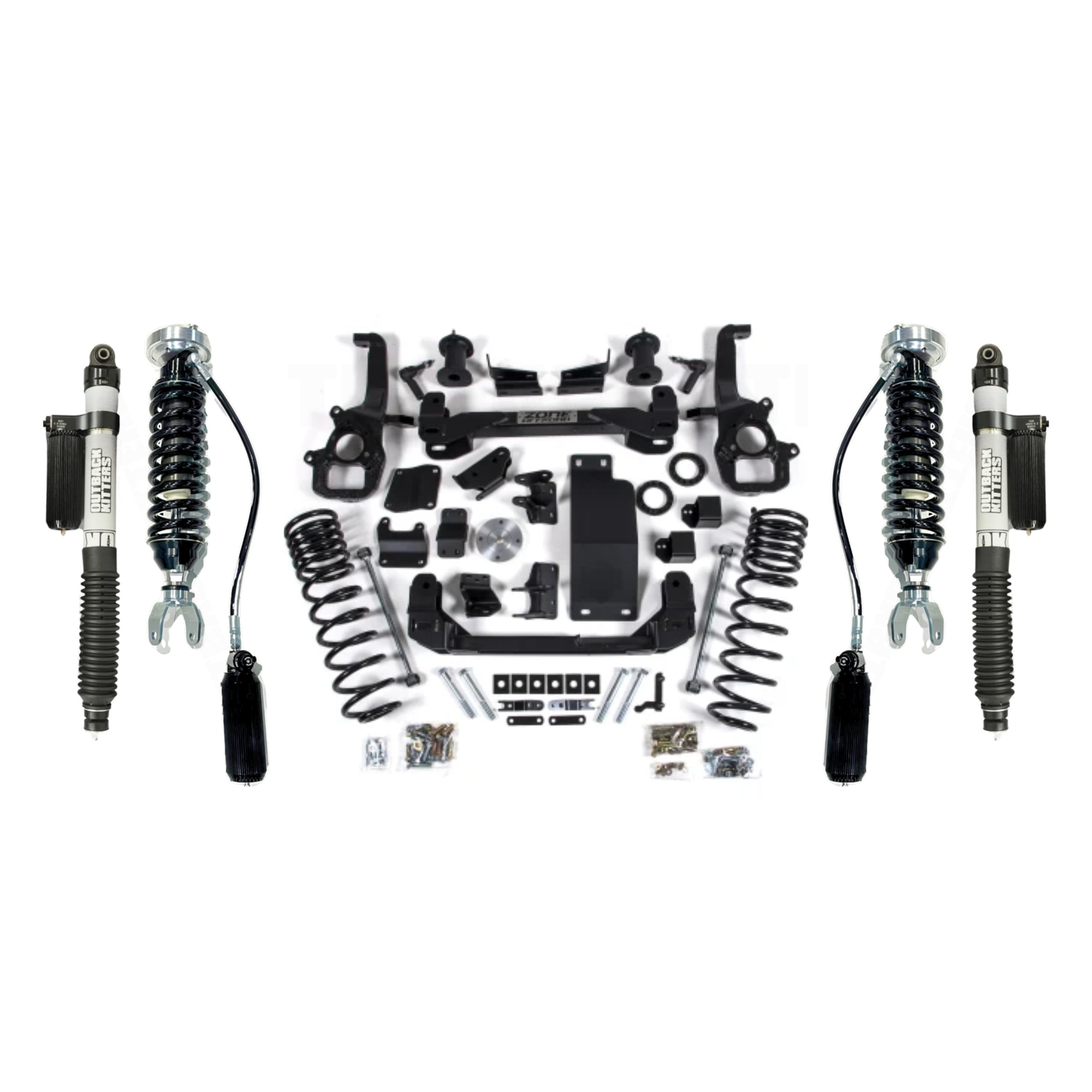

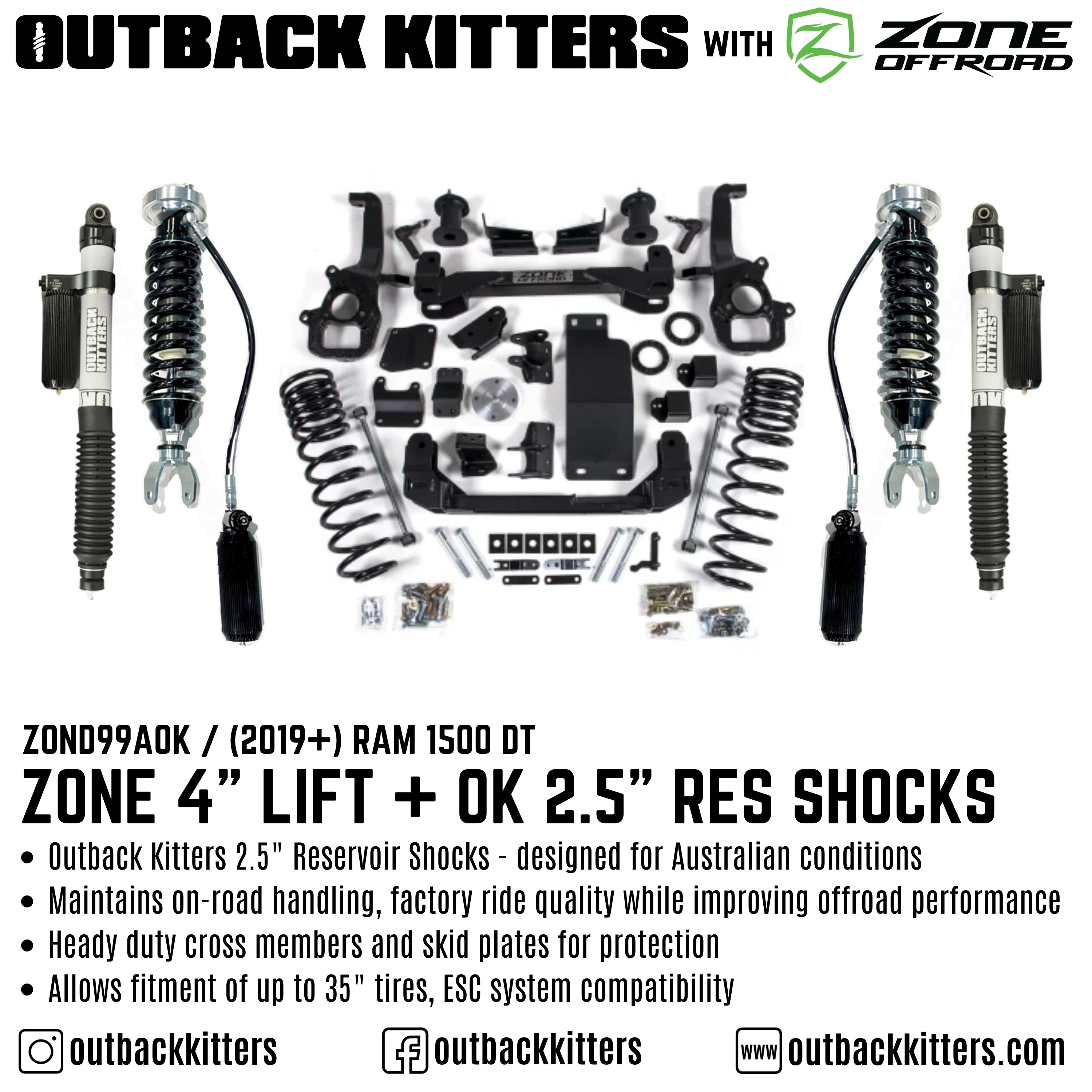

OK with Zone Offroad 4" Lift Kit for 2019+ Ram 1500 DT

SPECIFICATIONS

• Front Lift Height: 4"
• Rear Lift Height: 3"
• Material: Steel
• Front Lift Method: Strut Spacers
• Rear Lift Method: Coil Springs
• Lift Type: Lift Kit
• Finish: Powdercoat
• Cutting Required: Yes

RECOMMENDED TIRES AND WHEELS

• Wheel Size: 20 x 9
• Back Spacing: 5"
• Max Tire Size: 35 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 5"
• Max Tire Size 2: 35 x 12.5
• 17" and 18" wheels will NOT fit with these kits unless they are a Negative Offset (i.e. -12). A 0 offset is variable and more often than not, will not fit.
• 20" wheels are recommended to clear the extended knuckle and tie rod end.

IMPORTANT NOTES

• Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
• Will NOT fit models equipped with the Thermal Axle option (Reference build code DSK-P).
• Will NOT fit Ram 1500 Rebel or Ram 1500 with Off-Road Group option.
• Vehicles equipped with the Off-Road Group option require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section, a line item reads “Off-Road Group” if your truck is equipped.
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ. Stock 17" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
• This kit will NOT work on Diesel models.Fitment: Does NOT work for models with factory rear airbag suspension

INSTALLATION

• Installation Guide: Download
• Estimated Time: 8 hours
• Difficulty Level: Moderate
