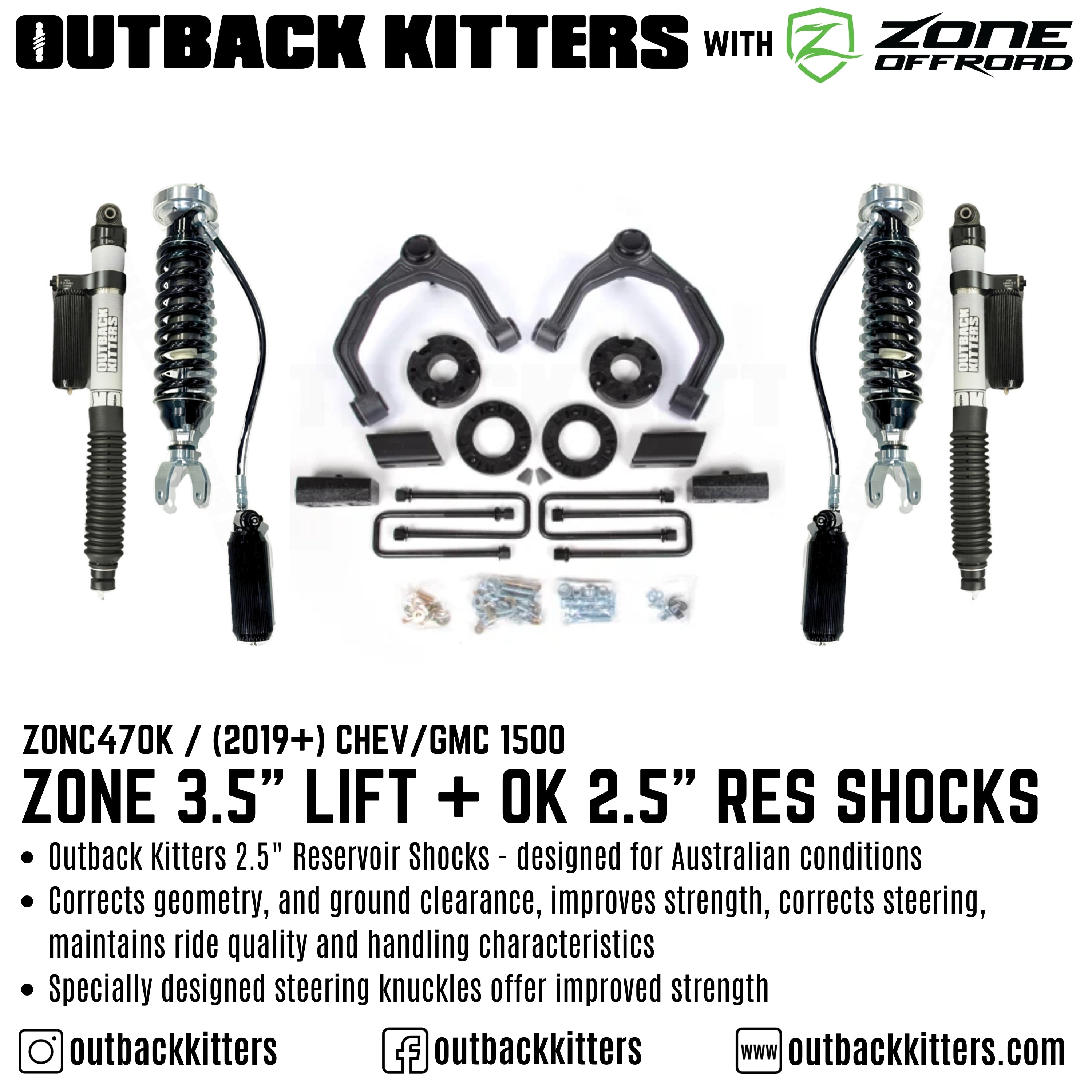

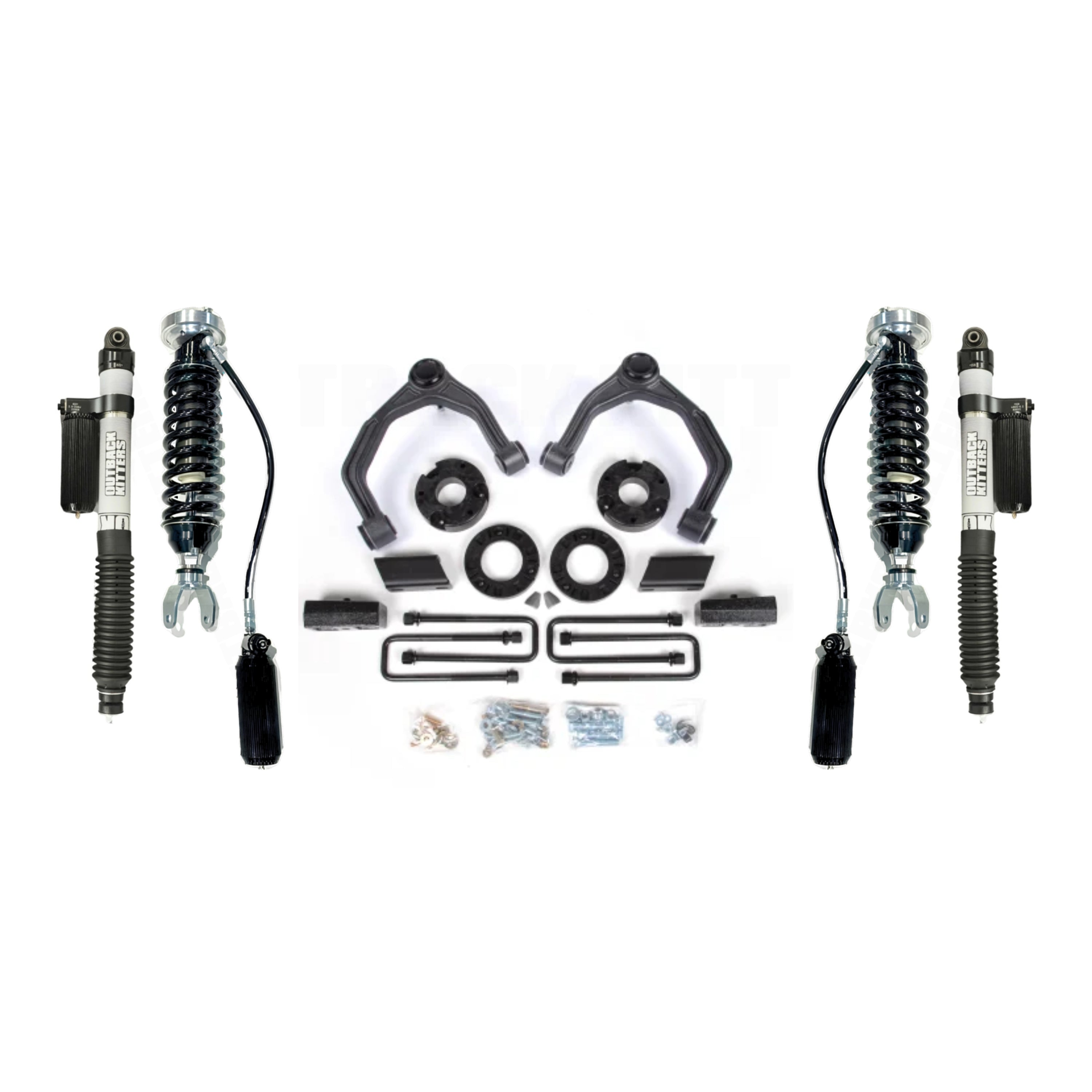

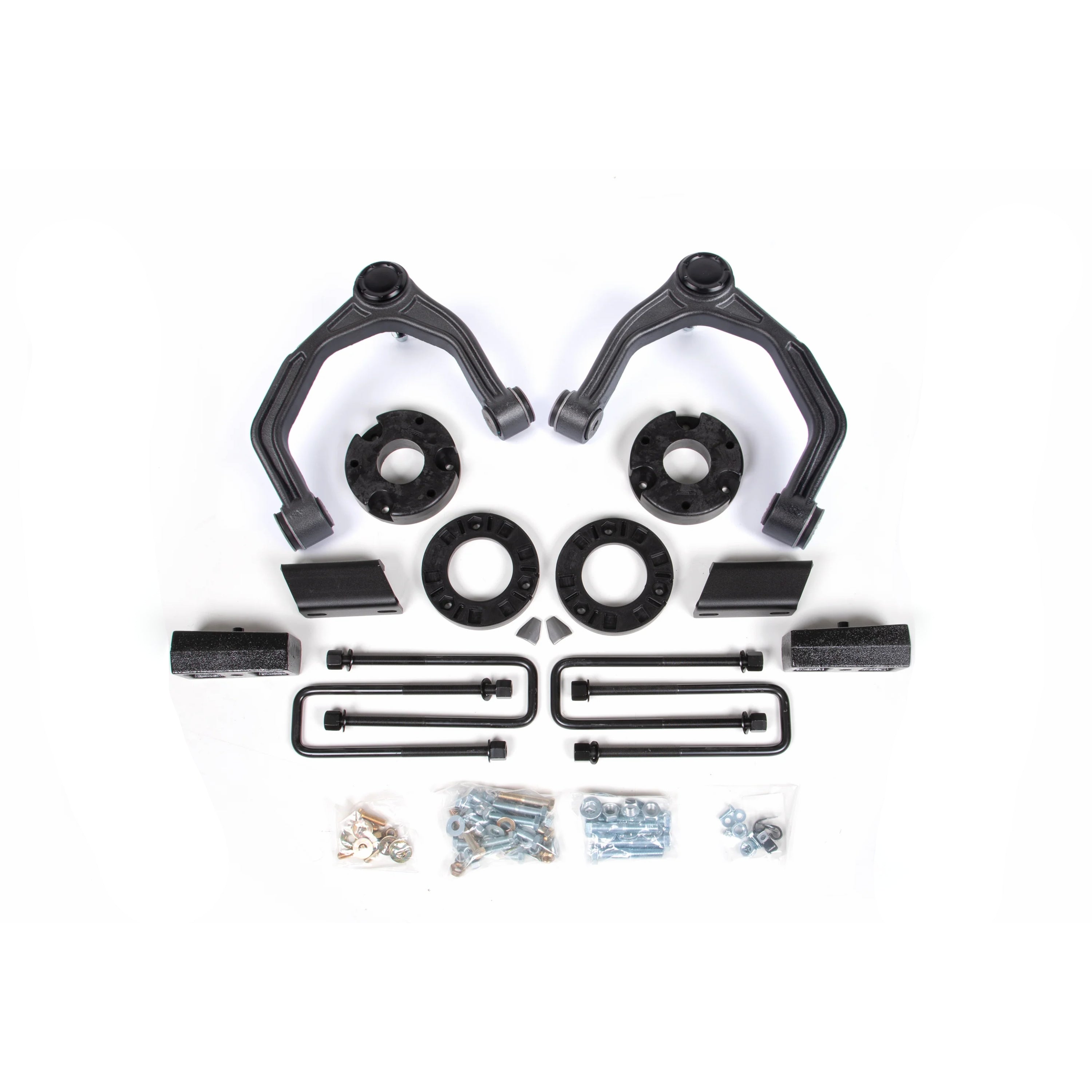

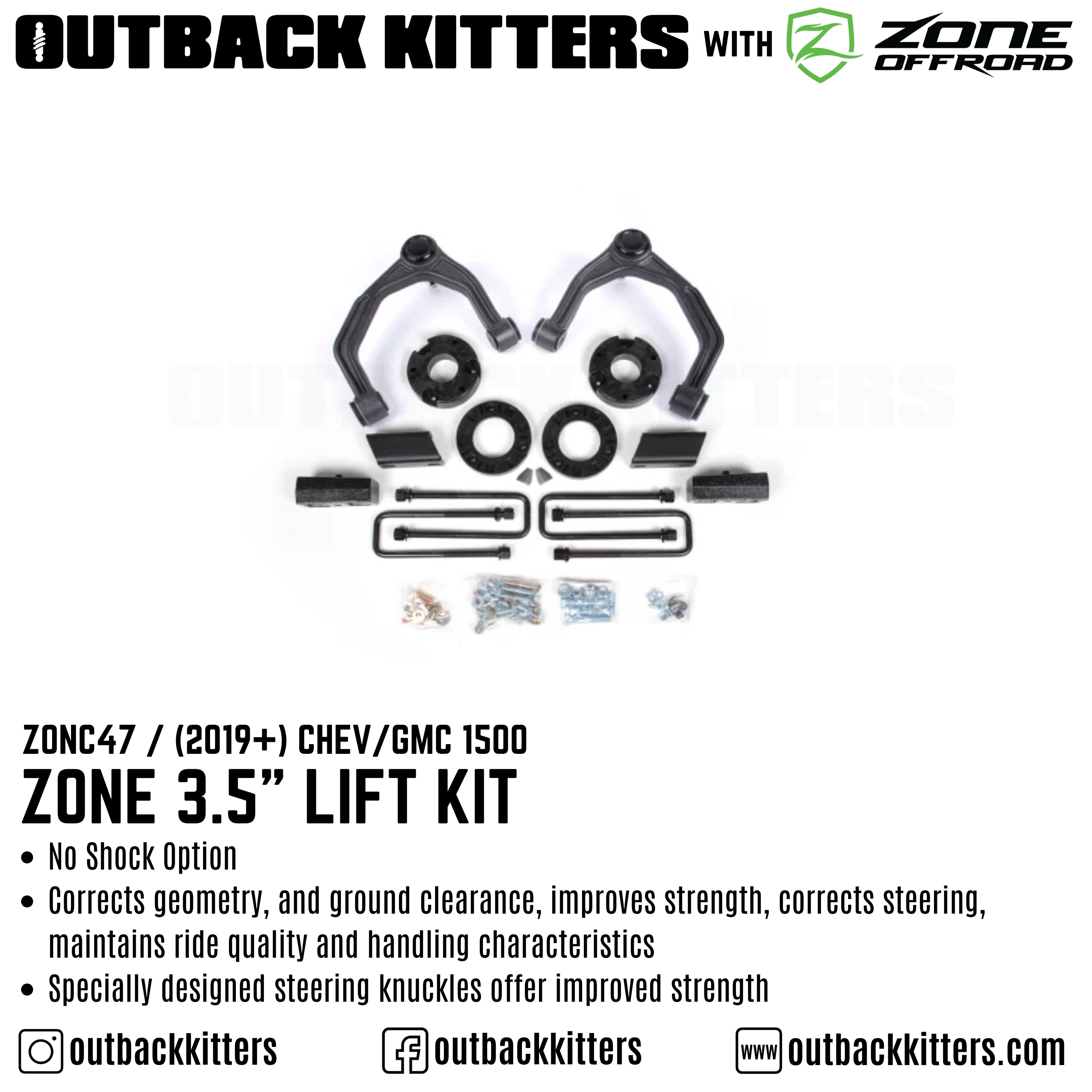

OK with Zone Offroad 3.5” Lift Kit for 2019+ Chev/GMC 1500

SPECIFICATIONS

• Front Lift Height: 3.5"
• Material: Steel
• Front Lift Method: Strut Spacers
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: 20 x 9
• Back Spacing: 5.5"
• Max Tire Size: 35x12.50 (Chevy)
• Max Tire Size: 2 33x12.50 (GMC)
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: No
• Welding Required: No

RECOMMENDED TIRES AND WHEELS

• Max Tire Size: 35x12.50 (Chevy)
• Max Tire Size: 2 33x12.50 (GMC)

IMPORTANT NOTES

• Works on Petrol and Diesel Models.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
• Do not exceed wheel backspacing of 5.5" as it will cause clearance issues with UCA.
• Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms.
• Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT fit Denali and High Country models with Adaptive Ride Control (ARC).
• Will NOT fit Trail Boss/ AT4 models.
• This kit has not been test fitted on Silverado ZR2 or Sierra AT4X models at this time.
• Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
• 2022 Models: This system has not been tested on models equipped with Super Cruise.

INSTALLATION

• Installation Guide: Download
• Estimated time: 3-4 hours
• Difficulty Level: Moderate

REQUIRED TOOLS

• Cut-off Tool
• Strut Compressor

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.
